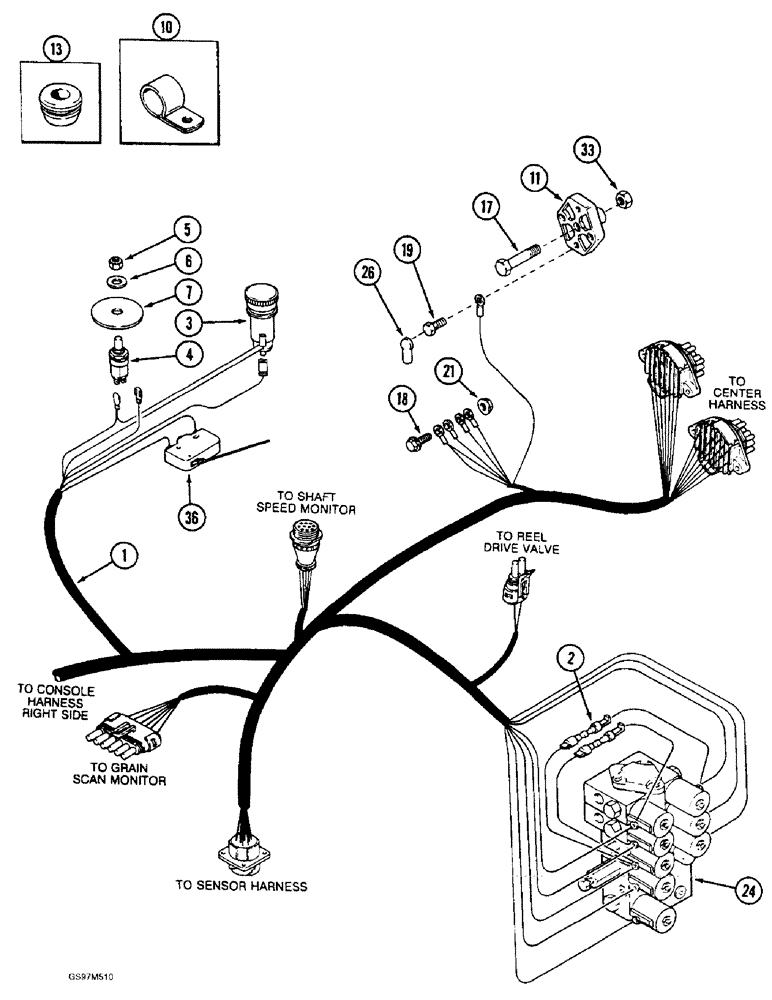

Запчасти Case IH 1660 (4-18) - CONSOLE HARNESS, LEFT-HAND SIDE, P.I.N. JJC0103800 AND AFTER (06) - ELECTRICAL

1

1994820C1

HARNESS

- console

1шт.

2

548239R2

RECTIFIER

DIODE - nonlocking

2шт.

3

1964773C1

CIGAR LIGHTER

LIGHTER ASSEMBLY - cigar, 12 volt (Replaces lighter assembly 245576C1), Includes: Ref. 3

1шт.

3

A177447

LIGHTER, CIGARETTE

ELEMENT - pop up, lighter, purchase locally (Replaces element 378781R1)

1шт.

4

1983341C1

SWITCH

- parking brake warning lamp

1шт.

5

A39888

NUT

- 3/8-32, hex, special, lamp switch (Replaces nut 68107H)

1шт.

6

166817C2

WASHER

- flat, 9.0 x 51.0 x 1.6 mm

1шт.

7

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

7

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, console harness, front

1шт.

11

468647C2

BLOCK ASSY.

BLOCK - junction

1шт.

13

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID, console harness

1шт.

17

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

18

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

19

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

24

REF

INSTRUCTION

VALVE ASSEMBLY - control, parts list Figure 8-58 or 8-62

1шт.

26

399470R1

BOOT

- cable

1шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

36

1310827C2

SWITCH

- lockout, third gear

1шт.
