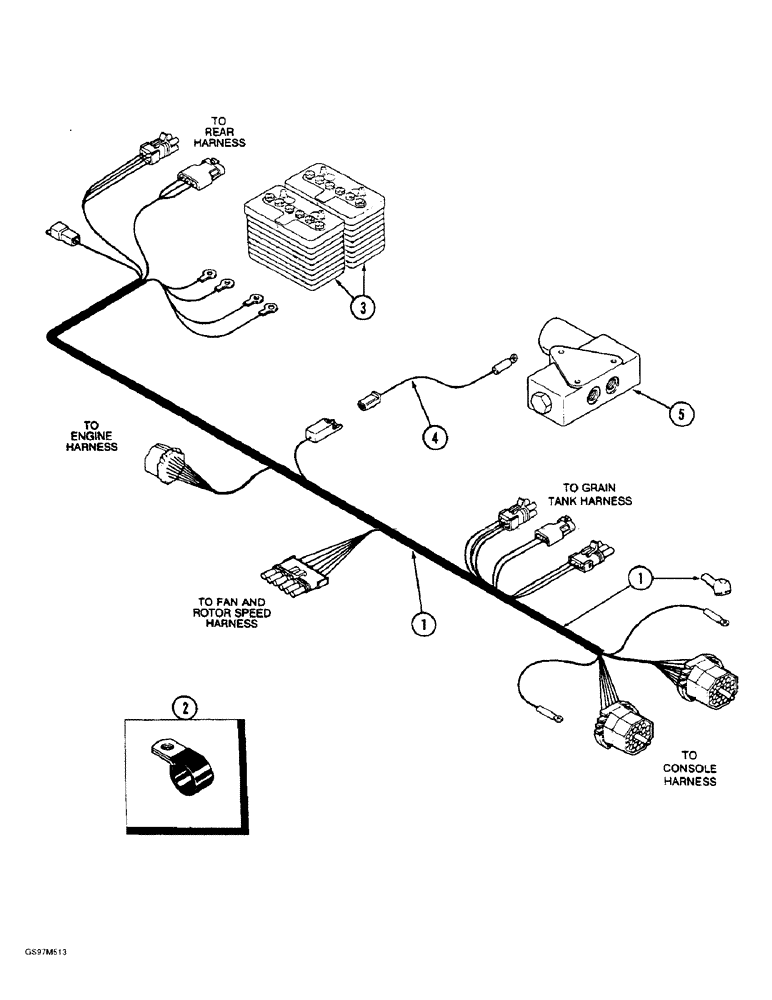

Запчасти Case IH 1660 (4-24) - CENTER HARNESS (06) - ELECTRICAL

1

1983382C1

HARNESS

- center, P.I.N. JJC0039262 through JJC0103800

1шт.

1

245229C3

HARNESS

- center, prior to P.I.N. JJC0039262

1шт.

2

84183C1

CLAMP

- P-type

5шт.

2

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type 1 1/4", Insul, 7/16" Bolt

6шт.

2

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

(Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

2шт.

3

BMF31G

BATTERY, DRY

12V, See Figure 4-62

2шт.

4

187736C1

CABLE

- separator clutch valve, control concepts

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - separator clutch, control concepts, parts list Figure 8-114

1шт.
