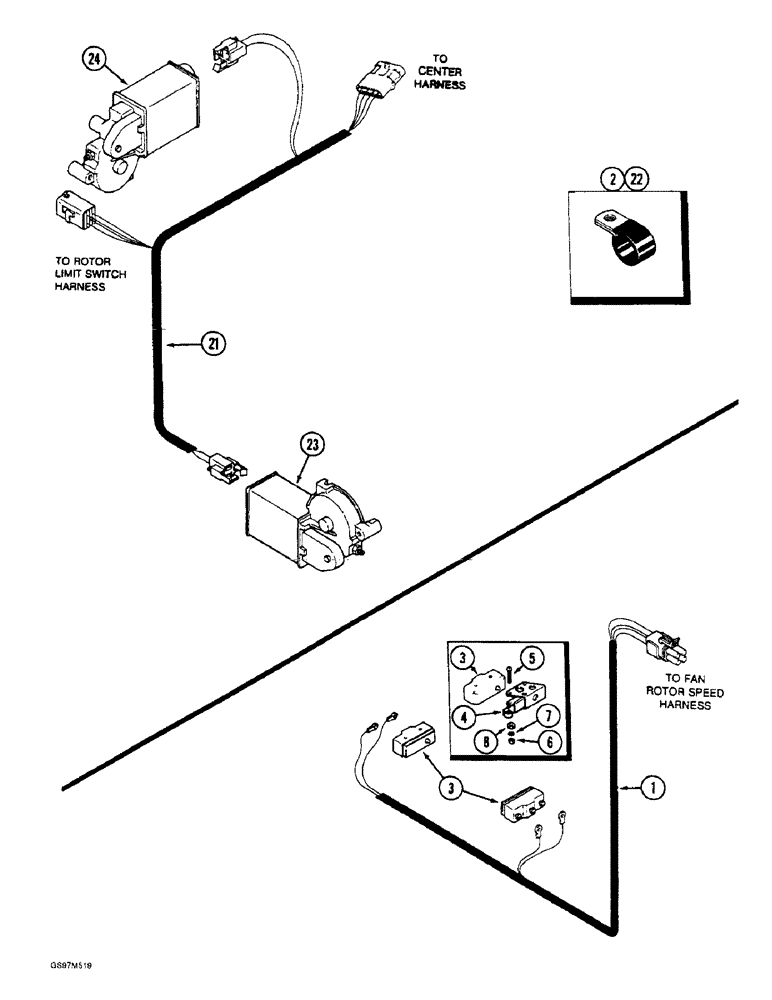

Запчасти Case IH 1660 (4-36) - ROTOR LIMIT SWITCH HARNESS, FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

HARNESS - rotor limit switch

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

3

186057C1

SWITCH

- rotor limit

2шт.

4

128298A2

MECHANICAL SWITCH

ACTUATOR - rotor limit switch (Replaces actuator 186058C1)

2шт.

5

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch

4шт.

6

225-14106

NUT,#6-32

4шт.

7

138526

LOCK WASHER

- internal tooth lock, special, No. 6

4шт.

8

495-31016

WASHER,#6

4шт.

21

1983397C1

HARNESS

- fan and rotor speed, P.I.N. JJC0039668 and after

1шт.

21

245230C1

HARNESS

- fan and rotor speed, prior to P.I.N. JJC0039668

1шт.

22

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

(Replaces clamp 363444R1), fan and rotor speed harness J, 9/16" Insul, 3/8" Bolt

1шт.

23

REF

INSTRUCTION

MOTOR - fan speed, see page 9C-16, rotor harness

1шт.

24

REF

INSTRUCTION

MOTOR - rotor speed, see page 9B-14, fan harness

1шт.
