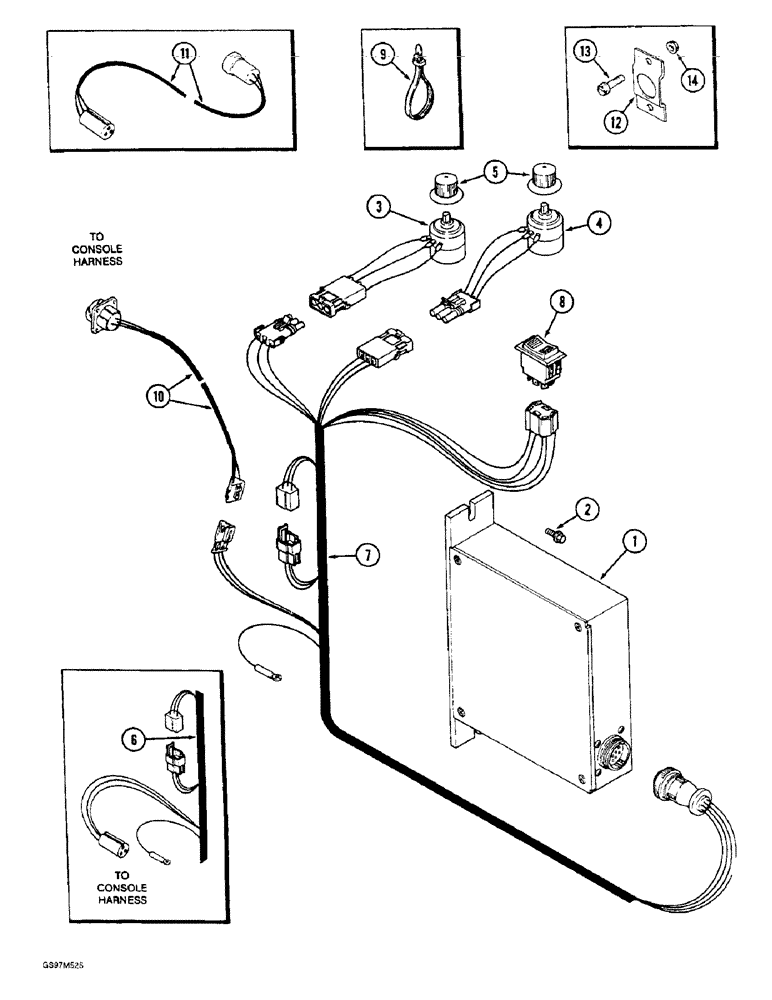

Запчасти Case IH 1660 (4-48) - AUTOMATIC HEADER HEIGHT CONTROL (06) - ELECTRICAL

1

91479C2

CASE

KIT - module, automatic header height control

1шт.

2

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

2шт.

3

245385C1

POTENTIOMETER,1000 Ohm

- single, 1K, header height control

1шт.

4

245925C1

POTENTIOMETER,1000 Ohm

Single, Sensitivity Control 1000 Ohm

1шт.

5

1301036C1

BUTTON

KNOB - control, without pointer, no longer available, order knob 1345235C1 below

2шт.

5

1345235C1

BUTTON

KNOB - control, with pointer

2шт.

6

245924C1

HARNESS

- automatic header height, prior to P.I.N. JJC0041434

1шт.

7

1345231C1

HARNESS

- automatic header height, P.I.N. JJC0041434 and after, no longer available, order harness 113513A1 and screw 276-2456

1шт.

7

113513A1

HARNESS

- automatic header height

1шт.

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self-tapping, hex head, No. 10 NC x 3/8 inch

1шт.

8

245012C1

SWITCH

- rocker, ON-OFF

1шт.

9

702093C1

CABLE TIE

STRAP - tie

1шт.

10

1994842C1

HARNESS

- automatic header height control hose, P.I.N. JJC0103800 and after

1шт.

11

1331312C1

WIRE HARNESS

HARNESS - extension, automatic header height control, if used

1шт.

12

91795C1

SUPPORT

BRACKET - connector mounting

1шт.

13

363-31016

SCREW,Hex Wash Hd, #10-24 x 1"

- machine, hex washer head, No. 10 NC x 1 inch

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

245238C1

HARNESS

runs along the feeder and hooks to the AHHC pot.

1шт.
