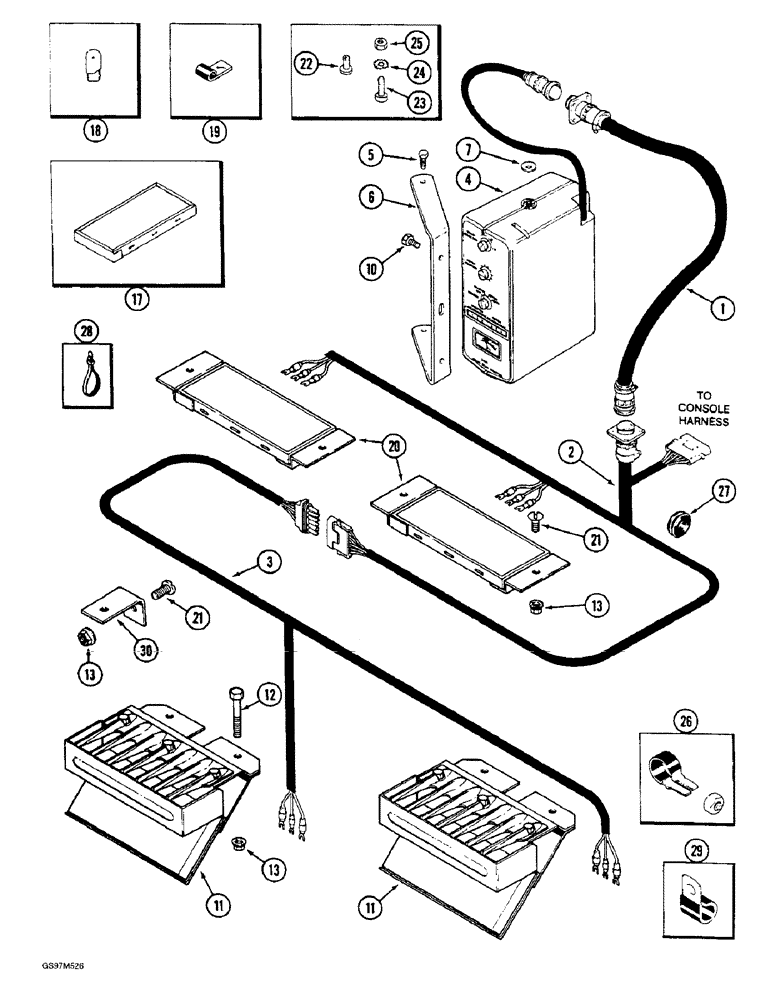

Запчасти Case IH 1660 (4-50) - GRAIN SCAN MONITOR (06) - ELECTRICAL

1

245237C1

HARNESS

- cab, grain scan

1шт.

2

1994838C1

HARNESS

- main sensor, P.I.N. JJC0103800 and after

1шт.

2

245239C1

HARNESS

- main sensor, prior to P.I.N. JJC0103800

1шт.

3

245930C2

HARNESS

- chaffer sensor, With Chaffer Extension

1шт.

1935074C1

REMAN-ELECT MONITOR

MONITOR - grain scan, remanufactured, North America only

1шт.

1935073C1

CORE-MONITOR

RETURN NUMBER - use this part number to return monitor core when using a remanufactured assembly

1шт.

4

245360C2

TESTER

MONITOR - grain scan, new

1шт.

5

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

6

1280160C2

SUPPORT

BRACKET - monitor mounting

1шт.

7

179454C1

RUBBER WASHER

- flat, rubber, special

2шт.

10

313-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

11

245361C2

TRANSMITTER

BLOCK - chaffer sensor

2шт.

12

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

17

245884C1

TRANSMITTER

BLOCK - grain sensor

1шт.

18

A48888

BULB

- lamp

1шт.

19

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

CLAMP - P-type, 1/4 inch ID (Replaces clamp A38799)

2шт.

20

245362C1

TRANSMITTER

BLOCK - rotor sensor

2шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

22

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

4шт.

23

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan Phillips, No. 6 NC x 5/8 inch

4шт.

24

493-11014

LOCK WASHER,Ext-Int Tooth, #6

WASHER - internal-external tooth lock, 1/8 inch

4шт.

25

225-14106

NUT,#6-32

4шт.

26

245738C2

CLAMP

- retaining

1шт.

27

195806C1

GROMMET

- 3/4 inch ID, left-hand side sheet

1шт.

28

702093C1

CABLE TIE

STRAP - tie

1шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

10шт.

30

1301242C1

BRACKET

ANGLE - retaining

1шт.
