(4-56) - SHAFT SPEED MONITOR CONTROL, P.I.N. JJC0103800 AND AFTER

Запчасти Case IH 1660 (4-56) - SHAFT SPEED MONITOR CONTROL, P.I.N. JJC0103800 AND AFTER (06) - ELECTRICAL

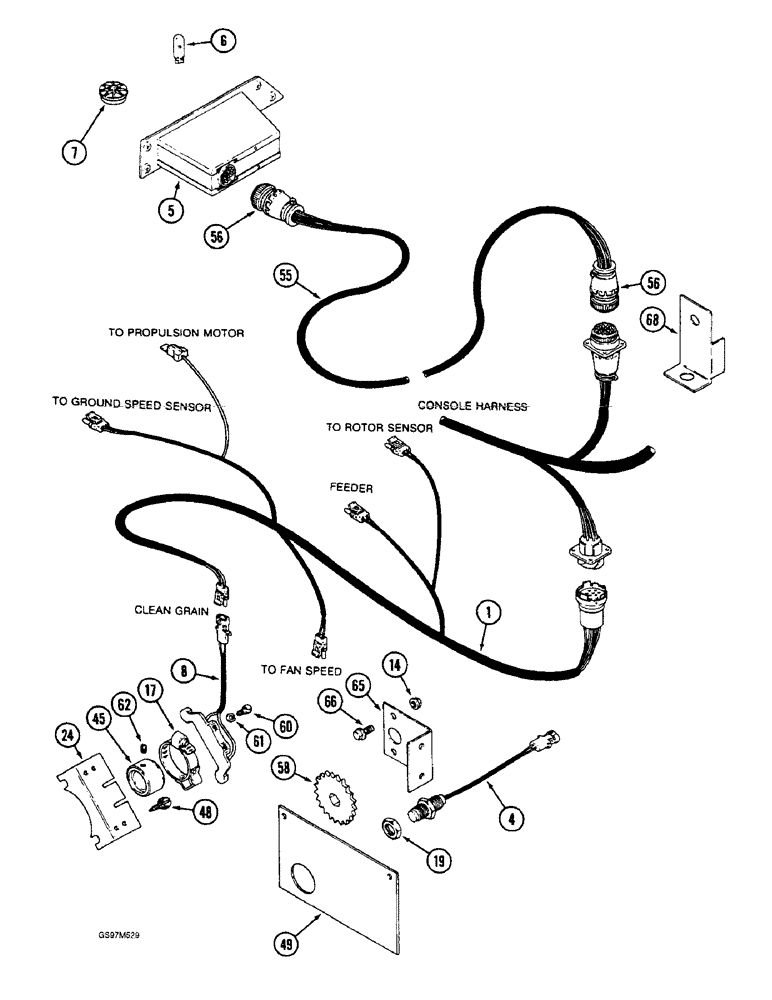

Схема запчастей Case IH 1660 - (4-56) - SHAFT SPEED MONITOR CONTROL, P.I.N. JJC0103800 AND AFTER (06) - ELECTRICAL
65
55
17
48
60
6
24
61
56
62
7
5
49
66
45
68
58
19
8
1
14
4
56
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1994837C1

HARNESS

HARNESS - shaft speed rear

1шт.

4

245193C2

SENSOR

SENSOR - feeder, ground speed, rotor and fan

4шт.

5

245275C91

CASE ASSY.

MONITOR ASSEMBLY - shaft speed, new, includes decal, Includes: Ref. 6 & 7

1шт.

5

1935072C1

REMAN-ELECT MONITOR

1660 COMBINE (S/N JJC0038346 & AFTER) , shaft speed new, P.I.N. JJC0103800 AND AFTER (1/86-12/92)

1шт.

5

1935071C1

CORE-MONITOR

Return Number

1шт.

6

A48888

BULB

BULB - lamp

1шт.

7

195359A1

SHUTTER

SUPPRESSOR - audible alarm (Replaces suppressor 178876C1)

1шт.

8

245365C1

TRANSMITTER

SENSOR - monitor control, for clean grain sensor

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

17

178800C1

CLAMP

MAGNET - sensor, for clean grain

1шт.

19

84116C1

NUT

NUT - hex, self-locking, 3/4 inch NC

1шт.

24

183869C3

SUPPORT

BRACKET - sensor, clean grain

1шт.

45

1319397C1

COLLAR,31.88mm ID x 44.45mm OD x 23.24mm L

COLLAR - locking

1шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head, 1/4-14 x 1/2 inch

4шт.

49

1979323C1

SHIELD

COVER - clean grain auger sensor

1шт.

55

245242C1

HARNESS

HARNESS ASSEMBLY - shaft speed front, Includes: Ref. 56

1шт.

56

131498C1

ELEC CONNECTOR

CONNECTOR - harness

2шт.

58

1317973C2

SPROCKET ASSY.

SPROCKET - feeder sensor, without rock trap or feeder reverser

1шт.

60

470-1086

SCREW,Pan HD, #8 - 32 x 3/8"

SCREW - machine, pan head slotted, No. 8 NC x 3/8 inch

3шт.

61

492-11008

LOCK WASHER,#8

Washer, Lock, #8

3шт.

62

483-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket headless, 1/4 NC x 3/8 inch, cup point

1шт.

65

1330063C1

SUPPORT

SUPPORT - sensor, feeder shaft, without rock trap or feeder reverser

1шт.

66

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

68

1317950C1

SUPPORT

SUPPORT - feeder sensor, with rock trap or feeder reverser

1шт.
