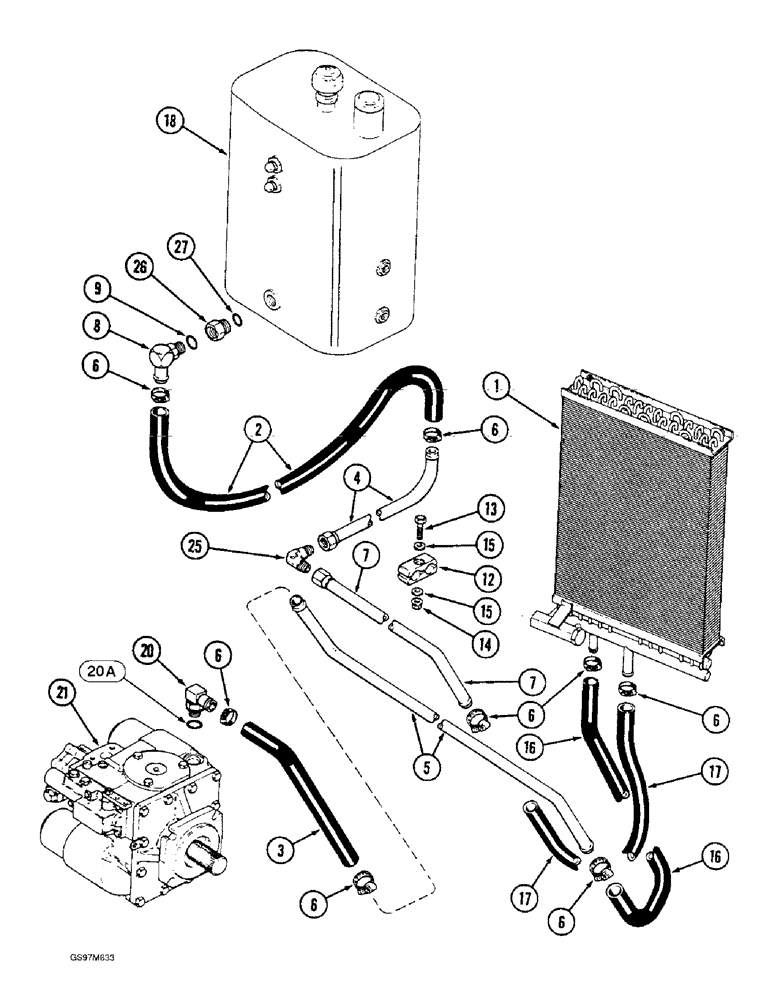

Запчасти Case IH 1660 (8-018) - OIL COOLER SYS., CORN & GRAIN COMBINE, W/OUT POWER GUIDE AXLE, MODELS W/OUT CROSS FLOW CLEANING SYS. (07) - HYDRAULICS

1

84659C3

OIL COOLER

COOLER ASSEMBLY - oil, parts list Figure 8-026

1шт.

2

1979763C1

HOSE

- reservoir to cooler, 394 mm (15-1/2 inch) long, cut from bulk hose 364361C1 below

1шт.

3

REF

INSTRUCTION

HOSE - pump to cooler, 610 mm (24 inch) long, cut from bulk hose 364360C1 below

1шт.

4

1979731C1

TUBE

- cooler return

1шт.

5

1979658C1

HYD TUBE,1" OD

TUBE - pump to cooler

1шт.

6

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, , Adjustable #16, .81/1.50 Type F Worm, W/liner

8шт.

6

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP - hose retaining

8шт.

7

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE - oil cooler return

1шт.

8

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW - 90 degree, 1 stem end x 1-5/16-12 inch adjustable O-ring boss, Includes: Ref. 9

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

12

1347071C1

CLAMP

- 3/4 inch OD

2шт.

13

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

16

1324939C2

HOSE

- oil cooler supply, 940 mm (37 inch) long, cut from bulk hose 364360C1 below

1шт.

17

1977227C1

HOSE

- oil, 1040 mm (40-15/16 inch) long, cut from bulk hose 364361C1 below

1шт.

18

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-004

1шт.

20

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degree, 3/4 stem end x 1-1/16-12 inch adjustable O-ring boss, Incl. Ref. 20A

1шт.

20a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figure 6-24

1шт.

25

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch flare x flare

1шт.

26

1979767C1

ADAPTER

- reducing, reservoir

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

28

1979768C1

ADAPTER

- 1 x 3/4 inch, not shown

1шт.

364361C1

HOSE

- bulk, 25 (1) ID x 15240 mm (600 inch) long, sold by the foot (Replaces hose B90928)

1шт.

364360C1

HOSE

- bulk, 19 (3/4) ID x 15240 mm (600 inch) long, sold by the foot (Replaces hose B90927)

1шт.
