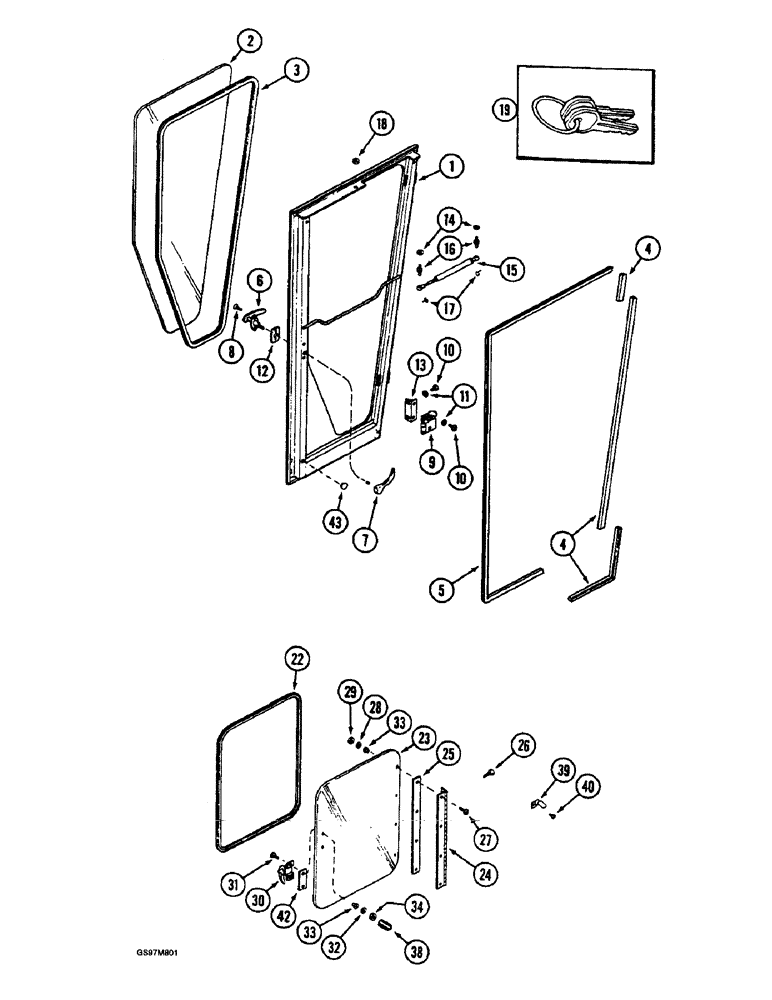

Запчасти Case IH 1660 (9G-04) - CAB, DOOR (10) - CAB & AIR CONDITIONING

1330154C92

CAB

ASSEMBLY - operators, Includes: Ref. 1 - 24 and door assembly

1шт.

1329477C3

DOOR

ASSEMBLY - cab, Includes: Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab, order door assembly 1329477C3

1шт.

2

198184C1

GLASS

- cab

1шт.

3

NSS

NOT SOLD SEPARAT

STRIP - seal, door glass, 3315 mm (130-1/2 inch) long, cut from bulk moulding 198131C2 below

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - seal, door front, 1321 mm (52 inch) long, cut from bulk seal 198522C1 below

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - seal, door bottom corner, 483 mm (19 inch) long, cut from bulk seal 198522C1

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - seal, door top corner, 76 mm (3 inch) long, cut from bulk seal 198522C1 below

1шт.

5

NSS

NOT SOLD SEPARAT

STRIP - seal, door top and bottom, 2515 mm (99 inch) long, cut from bulk seal 198522C1 below

1шт.

6

1329440C1

HANDLE

- door outside lock

1шт.

7

1329442C1

HANDLE

- door, inside

1шт.

8

489-11012

SCREW,Cross Oval Hd, #10"-32 x 3/4"

- machine, oval Phillips, No. 10 NF x 3/4 inch

2шт.

9

1329443C1

LATCH

- door, inside

1шт.

10

261-63512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NF x 3/4 inch

8шт.

11

393-41020

LOCK WASHER,Ext Tooth, #10

WASHER - external tooth lock, 3/16 inch

8шт.

12

1329441C1

GASKET

- handle

1шт.

13

1330184C1

BRACKET

ANGLE - support, latch

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

15

1280157C1

GAS STRUT

SPRING - gas, door control

1шт.

16

1340345C1

BALL STUD

STUD - ball (Replaces stud 473184C1)

2шт.

17

1304647C1

CLIP

- retaining

2шт.

18

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

1шт.

19

1970178C1

SET OF 2 KEYS

KEY - lock, set of 2, door

1шт.

22

109594C1

SEAL

- right-hand rear window weather, 2235 mm (88 inch) long, cut from 1263038C1 bulk seal below

1шт.

23

1987172C1

GLASS

- right-hand rear window

1шт.

24

1301233C2

HINGE

- right-hand rear window

1шт.

1981311C2

MOULDING - bulk, 15240 mm (600 inch) roll

1шт.

198522C1

STRIP

SEAL - bulk, 15240 mm (600 inch) long, Includes: Ref. 25 - 43

1шт.

1263038C1

SEAL,7620mm L

- bulk, 7620 mm (300 inch) long, sold by the foot, Includes: Ref. 25 - 43

1шт.

25

1301234C1

STRIP

SHIM - right-hand rear window

1шт.

26

261-6458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NF x 1/2 inch

4шт.

27

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- machine, pan Phillips, No. 10 NC x 5/8 inch

4шт.

28

495-31022

WASHER,#10

4шт.

29

196922C1

LOCK NUT

- hex, self-locking, No. 10

8шт.

30

170404C1

HANDLE

- right-hand rear window lock

2шт.

31

440-11028

SCREW,Cross Pan Hd, #10-24 x 1 3/4"

- machine, pan head, No. 10 NC x 1-3/4 inch

2шт.

31

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

4шт.

32

495-31022

WASHER,#10

4шт.

33

896274C1

BUSHING

- window retainer cushion

8шт.

34

225-14110

NUT,#10-24

2шт.

38

196926C1

END FITTING

GRIP - window lock bolt cap, if used

2шт.

39

1281761C2

SPRING

- window latch

1шт.

40

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

2шт.

42

183585C1

STRIP

SHIM - right-hand rear window strip

1шт.

43

28388R1

HOLE PLUG BUTTON,27/32"

PLUG - button, 27/32 inch hole

1шт.
