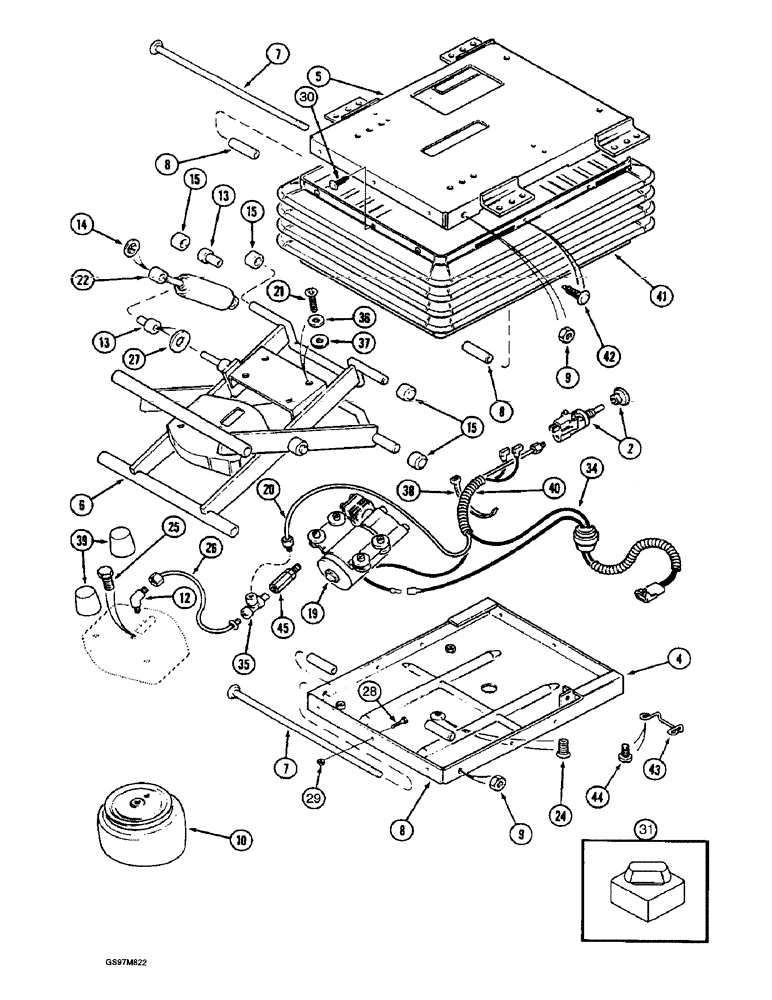

Запчасти Case IH 1660 (9G-46) - SEAT, SEARS, AIR SUSPENSION, PRIOR TO P.I.N. JJC0041750 (CONTD) (10) - CAB & AIR CONDITIONING

REF

INSTRUCTION

SEAT ASSEMBLY - operators, Includes: Ref. 2 - 31 and 1 - 29 on Figure 9G-44

1шт.

1344002C1

SET OF PARTS

KIT - suspension service, order kit 241196A1 and 291280A1 below, Includes: Ref. 2 - 31

1шт.

2

1981852C3

SWITCH

- air control

1шт.

4

226560A1

HOUSING

- lower, also order kit 132872A1 and bumper A45054

1шт.

5

1343996C1

HOUSING

- suspension, upper

1шт.

6

1343997C1

ARM

- suspension

1шт.

7

A49529

SHAFT

- bushing tube

1шт.

8

A47760

BUSHING

TUBE - bearing

2шт.

9

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

10

1981842C1

SPRING

- air, order kit 197793A1

1шт.

12

1981865C1

UNION

ELBOW - 90 degree, 1/8 PT x 5/32 inch tube, order kit 1990548C4 on Figure 9G-50

1шт.

13

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

14

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

15

1981788C1

SHIFTER ROLLER

ROLLER - suspension, no longer available, order kit 1344249C1

6шт.

19

1999947C4

COMPRESSOR

ASSEMBLY - air (Replaces compressor assembly 1981843C1), Includes: valve

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, order compressor assembly

1шт.

20

1343946C1

TUBE

- nylon, 4 (5/32) OD x 838 mm (33 inch) long, order kit 1990548C4 on Figure 9G-50

1шт.

21

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan head cross recess, No. 8-32 x 3/8"

4шт.

22

1343998C1

KIT

ABSORBER - shock, seat (Replaces absorber 1981795C1)

1шт.

24

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat Phillips, 3/8 NC x 3/4"

1шт.

25

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

26

1981853C1

PLASTIC-RUBBER TUBE,0.156" OD, 6" Length

AIR HOSE 152.00 mm - Nylon, 5/32 OD, Order kit 11990548C1 on Figure 9G-50

1шт.

27

A45519

WASHER

- flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch

1шт.

132872A1

KIT

- boot pin, package of 23 retainers and 3 dome nuts, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

FASTENER - christmas, order kit

20шт.

29

NSS

NOT SOLD SEPARAT

NUT - acorn, order kit

3шт.

30

NSS

NOT SOLD SEPARAT

CLIP - retaining, order kit

3шт.

31

A45054

BUMPER,Neoprene

- seat

1шт.

1344249C1

KIT

KIT - roller tube and bearing, Includes: Ref. 34 - 44

1шт.

197793A1

SPRING

KIT - air spring, Includes: Ref. 34 - 44

1шт.

241196A1

SUSPENSION

KIT - suspension service, includes harness, Includes: Ref. 34 - 44

1шт.

291280A1

KIT

- ground strap, includes strap, wire ties and hardware, Includes: Ref. 34 - 44

1шт.

Order instruction sheet Bur 7-54270 to install ground strap kit.

1шт.

34

134237A2

HARNESS

- wire (Replaces harness 1981848C1)

1шт.

35

1981864C1

UNION

ADAPTER - 1/8 PT x 5/32 inch tube, no longer available, order kit 1990548C4 on Figure 9G-50

1шт.

36

495-31022

WASHER,#10

4шт.

37

1974732C1

WASHER

- flat, 25/64 x 1-1/8 x 1/8 inch

4шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

39

1981849C1

SHOCK ABSORBER

BUMPER - rubber, order kit 180593A1

2шт.

40

179026A1

TUBE

GUARD - corrugated, 9.5 (3/8) ID x 689 mm (27-1/8 inch) long (Replaces guard 1343833C1)

2шт.

41

1981786C1

KIT

- boot, suspension, Includes: Ref. 42

1шт.

42

132872A1

KIT

- boot pins (Replaces pin 1343837C1)

1шт.

43

1344107C1

SUPPORT

BRACKET - beam switch, order kit 1990548C4 on Figure 9G-50

1шт.

44

187-1035

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head slotted, No. 10-16 x 1/2 inch

2шт.

45

1990650C1

VALVE

- check, used with compressor 1981843C1

1шт.

180593A1

KIT

- bumper

1шт.
