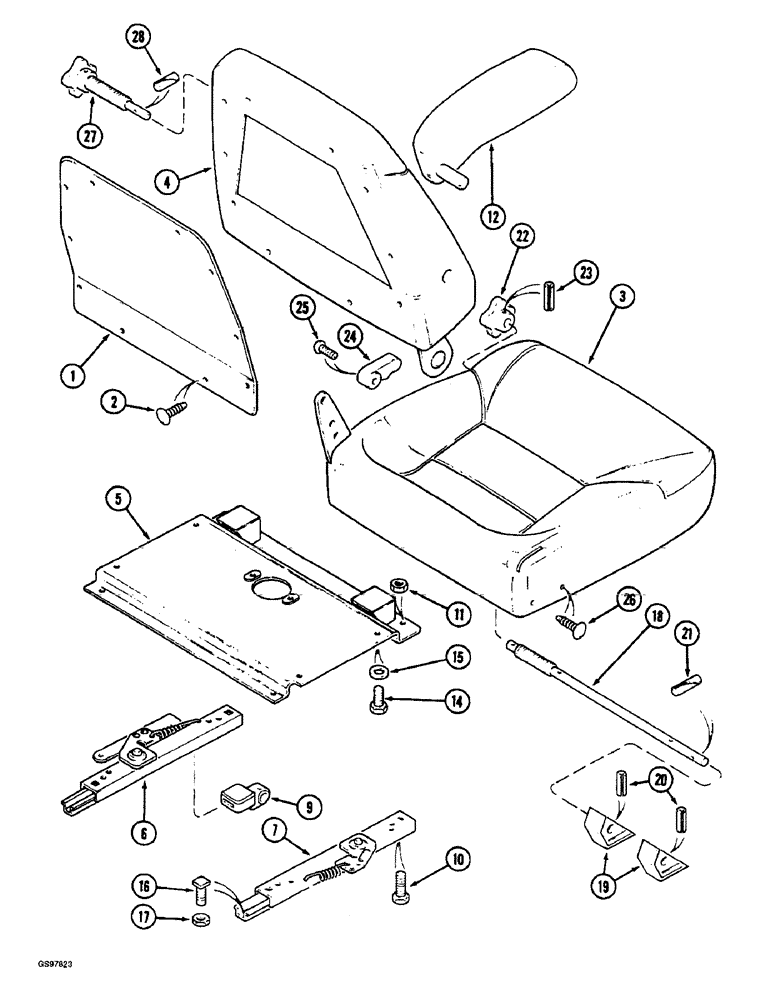

Запчасти Case IH 1660 (9G-48) - SEAT, SEARS, AIR SUSPENSION, P.I.N. JJC0041750 AND AFTER (10) - CAB & AIR CONDITIONING

1990654C2

SEAT

ASSEMBLY - operators, air suspension, also order ground strap kit 291280A1 on page 9G-51 (Replaces seat assembly 1990653C2), Includes: Ref. 1 - 28 and 1 - 58 on Figure 9G-50

1шт.

1

1974713C2

PACKAGE

COVER ASSEMBLY - seat backrest, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

CLIP - christmas tree, order cover assembly 1974713C2

10шт.

3

132885A1

CUSHION

KIT - cushion, seat service, includes 48 retainer rings (Replaces kit 1974701C1)

1шт.

4

132884A1

BACKREST

KIT - cushion, backrest service, includes 44 retainer rings (Replaces kit 1974702C2)

1шт.

5

1990891C1

LARGE PLATE

PLATE - slide adapter

1шт.

1344248C1

SLIDE

KIT - slide, double locking (Replaces kit 1344247C1), Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE - locking, with handle, left-hand, order kit 1344248C1

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand, order kit 1344248C1

1шт.

9

NSS

NOT SOLD SEPARAT

KNOB - fore/aft, order kit 1999691C1 or 1344248C1

1шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

11

230-4225

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

12

1981818C1

ARMREST

KIT - armrest, left-hand

1шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

16

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

- square head, 5/16 NC x 3/4 inch, grade 2

4шт.

17

230-4225

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

1344004C4

SEAT ASSY.

KIT - cushion, seat and backrest, Includes: Ref. 18 - 28 and kit and shaft

1шт.

1987286C2

CUSHION, SEAT

KIT - seat cushion, no longer available, order kit 138505A1 below, Includes: Ref. 18 - 20 and shaft

1шт.

1343847C2

SHAFT ASSY.

SHAFT - seat tilt

1шт.

18

NSS

NOT SOLD SEPARAT

CAMSHAFT - seat cushion, order kit 1987286C2

1шт.

19

NSS

NOT SOLD SEPARAT

CAM - seat tilt, order kit 1987286C2

2шт.

20

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

2шт.

21

38-21020

PIN,5/32" x 1 1/4", Coiled

1шт.

22

1981826C1

KNOB

- seat tilt, order kit 1999691C1

1шт.

23

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

24

1987212C1

PACKAGE

KIT - seat cushion, back tilt knob, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - machine, oval head cross recess, 6 x 12 mm, order kit 1987212C1

1шт.

26

1974722C1

CLIP,ELECTRICAL

RETAINER - cover, no longer available, order kit 1999693C1

14шт.

27

1981828C1

BUTTON

KNOB - control, lumbar, order kit 1999691C1

1шт.

28

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

1999693C1

KIT

- christmas tree clip, includes 14 clips

1шт.

138505A1

CUSHION, SEAT

KIT - seat cushion, includes items 2, 3, 22, 23, 24, 25 and 27

1шт.

1999691C1

PACKAGE,SERVICE

KIT - knob, seat top

1шт.
