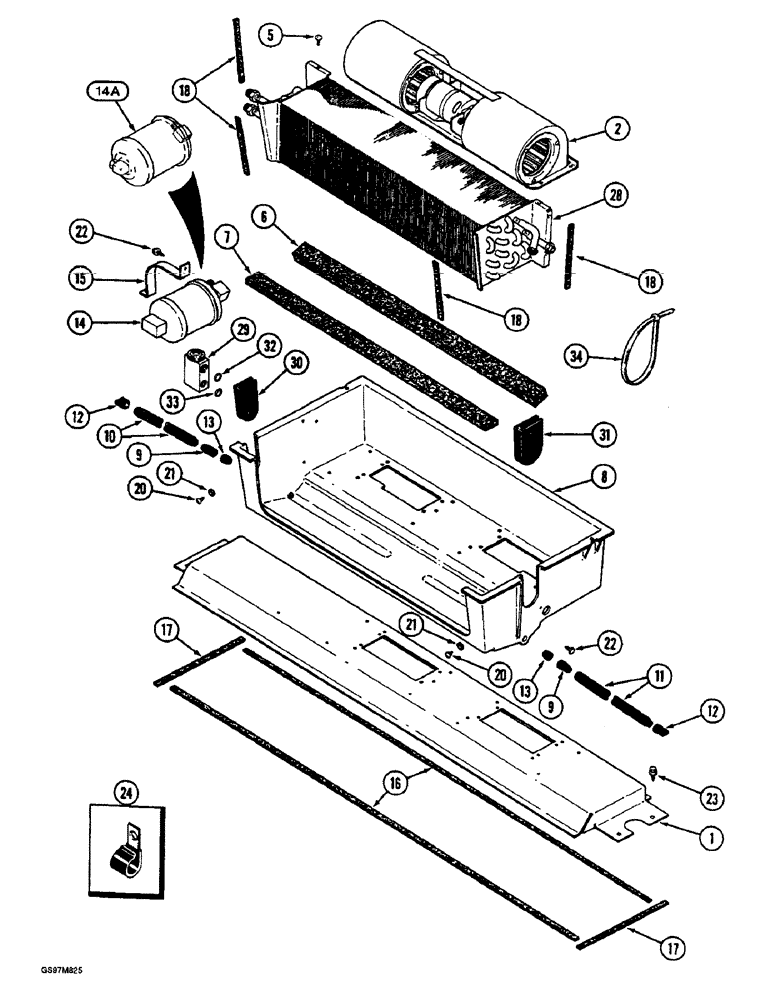

Запчасти Case IH 1660 (9G-52) - HEATER AND AIR CONDITIONER SYSTEM, EVAPORATOR HEATER CORE AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

1

1276238C1

SUPPORT

- mounting, blower box

1шт.

2

1255878C92

BLOWER ASSY.

BLOWER ASSEMBLY - pressurizer, parts list Figure 9G-54

1шт.

5

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - self-tapping, truss head, No. 10-16 x 3/4 inch, polyseal

4шт.

6

84123C1

STRIP

SEAL - core front, 750 mm (29-1/2 inch) long

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core, rear, cut from bulk hose 1974883CX below

1шт.

8

135776C2

HOUSING

- blower and heater core

1шт.

9

1250522C3

FITTING

FITTING - straight, special, drain, Serial Range: hose-housing

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - condensate left-hand, 2286 mm (90 inch) long, cut from bulk hose 198091C1 below

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - condensate right-hand, 3404 mm (134 inch) long, cut from bulk hose 198091C1 below

1шт.

12

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

13

195806C1

GROMMET

- 3/4 inch ID

2шт.

13

195800C1

GROMMET

- protective, without air conditioner

2шт.

14

143469C2

RESERVOIR

RECEIVER-DRIER - air conditioning system, no longer available, order receiver-drier 1990758C2, item 14A

1шт.

14a

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning system

1шт.

15

1250439C1

CLAMP

- receiver-drier

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 1270 mm (50 inch) long, cut from bulk seal 187874C1 below

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL - support and headliner, 254 mm (10 inch) long, cut from bulk seal 187874C1 below

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - core to housing, 165 mm (6-1/2 inch) long, cut from bulk seal 187874C1 below

4шт.

20

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

4шт.

21

395-31022

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

4шт.

22

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - self-tapping, truss head, No. 10-16 x 3/4 inch

12шт.

23

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

4шт.

24

362126R1

CLIP

CLAMP - right-hand condensate hose

3шт.

28

1974632C3

EVAPORATOR

CORE ASSEMBLY - heater and evaporator, Includes: Ref. 29 - 33

1шт.

29

1990756C2

VALVE

- expansion (Replaces valve 98370C3)

1шт.

30

1250463C2

GROMMET

- rubber, evaporator tubes

1шт.

31

1250464C2

GROMMET

- rubber, heater tubes

2шт.

32

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

34

306132C1

CABLE TIE,14.5" L

STRAP - tie, 356 mm (14 inch) long

3шт.

1974883CX

SEAL

HOSE - bulk, 20726 mm (816 inch) long roll

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- bulk, 13(1/2) ID x 15240 mm (600 inch) long

1шт.

187874C1

GASKET

SEAL - bulk, 15240 mm (600 inch) long, sold by the foot

1шт.
