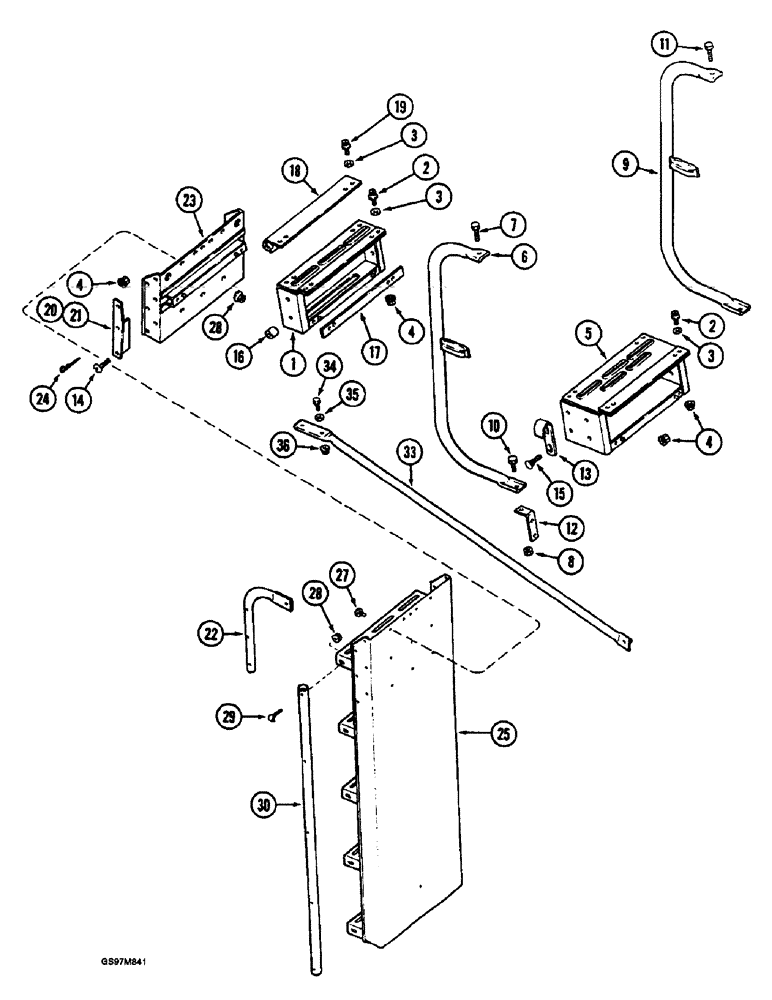

Запчасти Case IH 1660 (9H-16) - FIXED LADDER AND LADDER EXTENSION (12) - CHASSIS

1

198478C1

SUPPORT

- operators platform extension, 89 mm (3-1/2 inch)

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

12шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

10шт.

4

231-5146

FLANGE NUT,3/8"-16

20шт.

5

198482C2

SUPPORT ASSY.

SUPPORT - operators platform extension, 178 mm (7 inch)

1шт.

5

1345017C1

SUPPORT

- operators ladder, 267 mm (10-1/2 inch)

1шт.

5

1979515C1

SUPPORT

- platform extension, 356 mm (14 inch)

1шт.

5

184398C1

SUPPORT ASSY.

SUPPORT - platform extension, for dual wheel and extra wide axle

1шт.

6

196625C1

RAIL

- hand, front short extension, for use with 445 mm (17-1/2 inch) and longer extension, for use with axle extension

1шт.

7

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

8

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

9

196633C2

GRAB RAIL

RAIL - hand, rear short extension, for use with 356 mm (14 inch) and shorter extension, for use with axle extension

1шт.

9

184452C1

RAIL

- hand, rear, for extra wide axle and dual wheel

2шт.

9

196626C1

RAIL

- hand, front long extension, dual wheel only

2шт.

9

196625C1

RAIL

- hand, front short extension, extra wide axle

2шт.

10

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/4 inch, grade 8

1шт.

12

196846C2

ANGLE

SUPPORT - hand rail extension, for use with 267 and 356 mm (10-1/2 and 14 inch) extension, for use with axle extension (Replaces support 196846C1)

1шт.

13

196977C2

SUPPORT

- hand rail extension hook, for use with 267 and 356 mm (10-1/2 and 14 inch) extension, for use with axle extension (Replaces support 196977C1)

2шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

10шт.

15

411-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT - carriage, 3/8 NC x 2 inch, grade 2

2шт.

16

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

2шт.

17

187712C1

SHIM

BAR - shim, platform extension, 0.053 inch thick

1шт.

18

196832C1

SUPPORT

- ladder attaching

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

20

196836C1

SUPPORT

- ladder side, left-hand

1шт.

21

196837C1

SUPPORT

- ladder side, right-hand

1шт.

22

1317397C1

ROD

HANDRAIL - ladder support, upper

2шт.

23

1318804C2

SUPPORT

- ladder, upper

1шт.

24

1978738C1

HAIR PIN COTTER

3/16"

2шт.

25

1317520C91

LADDER

- pivoting, with decal

1шт.

27

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

3шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

13шт.

29

196955C1

BOLT,Curved Hd, 5/16" - 18 x 1.50", Cl 5

- curved head, 5/16 NC x 1-1/2 inch

10шт.

30

1318785C1

TUBE,26.8 mm ID, 28.58 mm OD

HANDRAIL - ladder support, lower

2шт.

33

184395C1

STEM

SUPPORT - ladder platform extension

1шт.

34

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

35

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 7/64 inch

2шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

37

196634C2

GRAB RAIL

RAIL - hand, rear long extension, not shown

1шт.
