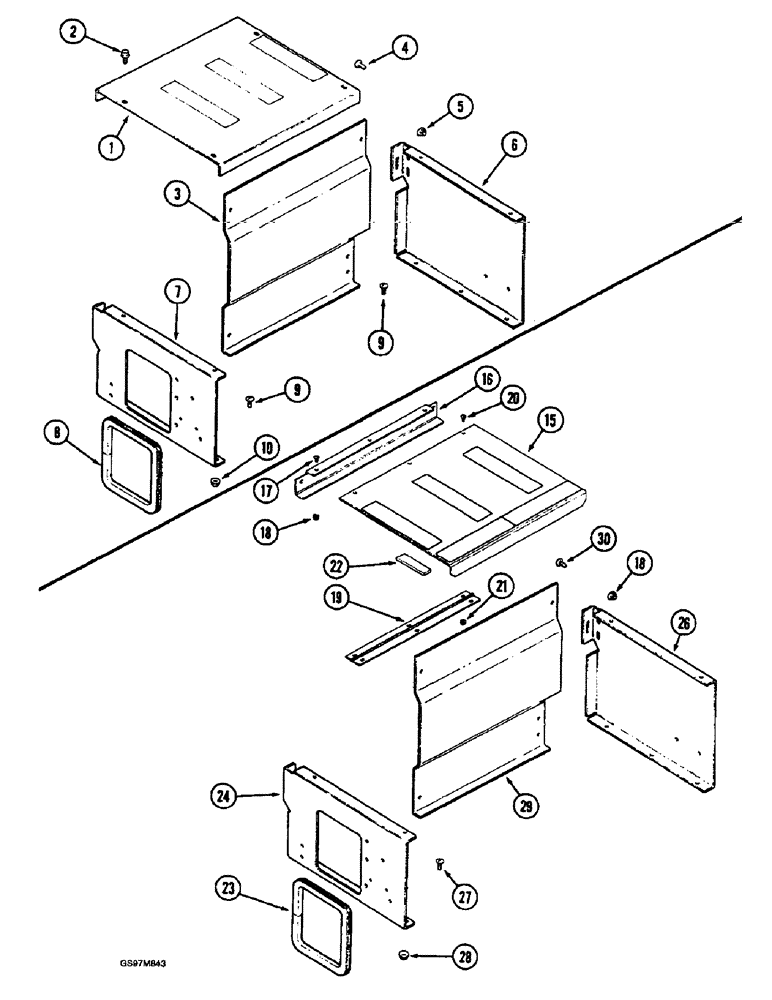

Запчасти Case IH 1660 (9H-20) - VALVE BOX, PRIOR TO P.I.N. JJC0103800 (12) - CHASSIS

1

1338308C1

COVER ASSY

SUPPORT - valve box cover

1шт.

2

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - self-tapping, hex washer head, 3/8 NC x 3/4 inch

4шт.

3

1338304C2

SHEET ASSY.

SUPPORT - valve box, left-hand

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

6

1338305C3

SUPPORT

- valve box, front

1шт.

7

1338306C3

SHEET

SUPPORT - valve box, rear

1шт.

8

98130C2

SEAL

TRIM - edge, 686 mm (27 inch) long, cut from 1330108CX bulk trim below

1шт.

9

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

10

231-5146

FLANGE NUT,3/8"-16

3шт.

15

1989344C2

COVER ASSY

COVER - valve box, top, P.I.N. JJC0103800 and after

1шт.

16

1989346C1

CHANNEL

- valve box, top, P.I.N. JJC0103800 and after

1шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", P.I.N. JJC0103800 and after

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, P.I.N. JJC0103800 and after

6шт.

19

1989347C1

HINGE

- valve box support, P.I.N. JJC0103800 and after

1шт.

20

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

P.I.N. JJC0103800 and after Hex Flg, 1/4"-20 x 1/2", Serr

6шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

P.I.N. JJC0103800 and after Flg, USR, 1/4"-20

6шт.

22

1989553C1

CATCH

- magnetic, P.I.N. JJC0103800 and after

2шт.

23

NSS

NOT SOLD SEPARAT

MOULDING - valve box support, 521 mm (20-1/2 inch) long, cut from bulk trim 1330108CX below, P.I.N. JJC0103800 and after

1шт.

24

1338306C3

SHEET

SUPPORT - valve box, rear, P.I.N. JJC0103800 and after

1шт.

26

1338305C3

SUPPORT

- valve box, front, P.I.N. JJC0103800 and after

1шт.

27

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch, P.I.N. JJC0103800 and after

6шт.

28

231-5146

FLANGE NUT,3/8"-16

P.I.N. JJC0103800 and after Flg, USR, 3/8"-16

6шт.

29

1338304C2

SHEET ASSY.

SUPPORT - valve box, left-hand, P.I.N. JJC0103800 and after

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch, P.I.N. JJC0103800 and after

4шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 15240 mm (600 inch) long, P.I.N. JJC0103800 and after

1шт.
