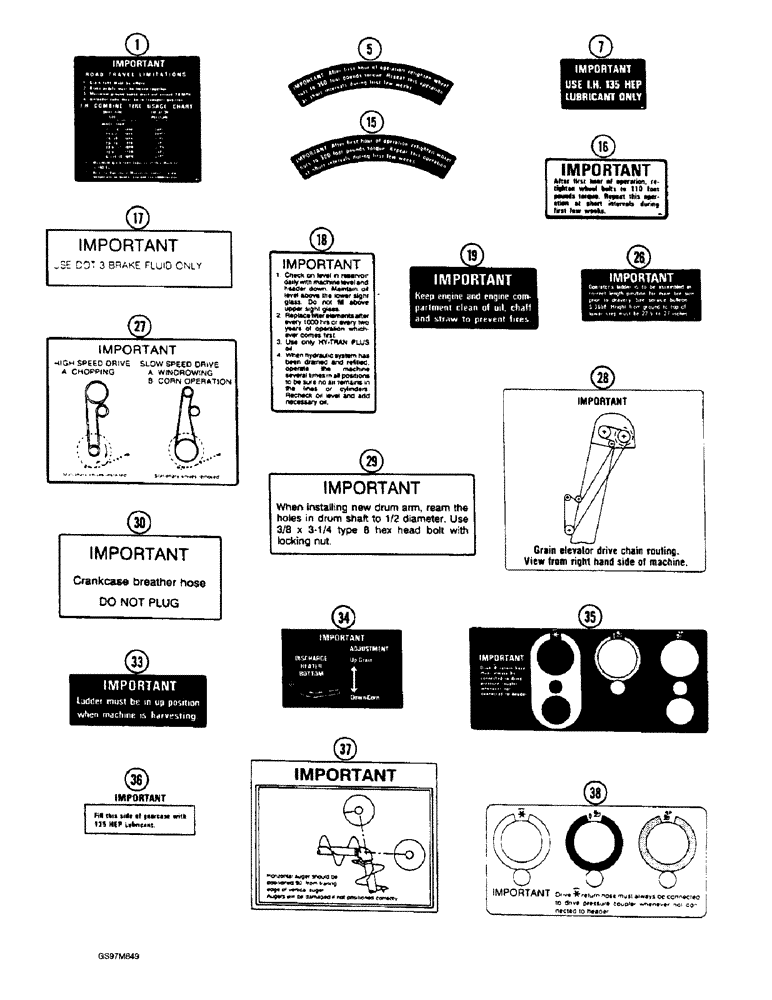

Запчасти Case IH 1660 (9H-32) - DECALS, IMPORTANT INSTRUCTIONS (12) - CHASSIS

1

1321318C4

DECAL

- tire chart, 180 bushel

1шт.

1

1321320C2

DECAL

- Important, road travel limitations, French

1шт.

1

1321319C2

DECAL

- Important, road travel limitations, Spanish

1шт.

5

1970399C2

DECAL

- Important, after first hour of operation, retighten wheel nuts to 350 foot pounds torque

2шт.

5

1970415C2

DECAL

- Important, after first hour of operation, retighten wheel nuts to 350 foot pounds torque, French

2шт.

5

1970416C2

DECAL

- Important, after first hour of operation, retighten wheel nuts to 350 foot pound torque, Spanish

2шт.

7

186051C1

PRODUCT GRAPHIC

DECAL - Important, use I.H. 135 HEP lubricant only

1шт.

7

1300115C1

DECAL

- Important, use I.H. 135 HEP lubricant only, French

1шт.

7

1300347C1

DECAL

- Important, use I.H. 135 HEP lubricant only, Spanish

1шт.

15

180536C1

PRODUCT GRAPHIC

DECAL - wheel nut torque

2шт.

15

1970415C2

DECAL

- wheel nut torque, French (Replaces decal 1300053C1)

2шт.

15

1970416C2

DECAL

- wheel torque, Spanish (Replaces decal 1300361C1)

2шт.

16

180409C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 110 foot pounds torque

2шт.

16

1300109C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 110 foot pounds torque, French

2шт.

16

1300329C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 110 foot pounds torque, Spanish

2шт.

17

1347067C1

DECAL

- Important, DOT 3 brake fluid

1шт.

18

1347323C1

PRODUCT GRAPHIC

DECAL - Important, check on level in reservoir daily (Replaces decal 180180C1)

1шт.

18

1347326C1

PRODUCT GRAPHIC

DECAL - Important, check on level in reservoir daily, French (Replaces decal 1300049C1)

1шт.

18

1347327C1

DECAL

- Important, check on level in reservoir daily, Spanish (Replaces decal 1300393C1)

1шт.

19

173881C1

DECAL

- Important, keep engine and engine compartment clean

1шт.

19

1300039C1

DECAL

- Important, keep engine and engine compartment clean, French

1шт.

19

1300395C1

DECAL

- Important, keep engine and engine compartment clean, Spanish

1шт.

26

1095361R1

DECAL

- Important, operator's ladder is to be assembled in correct length position

1шт.

26

1300133C1

DECAL

- Important, operator's ladder is to be assembled in correct length position, French

1шт.

26

1300355C1

DECAL

- Important, operator's ladder is to be assembled in correct length position, Spanish

1шт.

27

1302721C2

DECAL

- Important, high speed drive/slow speed drive

2шт.

27

1300398C2

DECAL

- Important, high speed drive/slow speed drive, French

1шт.

27

1300400C2

DECAL

- Important, high speed drive/slow speed drive, Spanish

1шт.

28

1957261C1

DECAL

- Important, grain elevator drive chain routing

1шт.

28

1979075C1

DECAL

- Important, grain elevator drive chain routing, French

1шт.

28

1979078C1

DECAL

- Important, grain elevator drive chain routing, Spanish

1шт.

29

1305104C2

DECAL

- Important, when installing new drum arm, ream the hole

1шт.

30

1979123C2

DECAL

- Important, crankcase breather hose

1шт.

30

1979125C2

DECAL

- Important, crankcase breather hose, French

1шт.

30

1979126C2

DECAL

- Important, crankcase breather hose, Spanish

1шт.

33

186507C1

PRODUCT GRAPHIC

DECAL - Important, ladder must be in up position

1шт.

33

1300118C1

DECAL

- Important, ladder must be in up position, French

1шт.

33

1300345C1

DECAL

- Important, ladder must be in up position, Spanish

1шт.

34

185441C1

PRODUCT GRAPHIC

DECAL - Important, discharge beater bottom

2шт.

34

1300113C1

DECAL

- Important, discharge beater bottom, French

2шт.

34

175786A1

DECAL

- Important, discharge beater bottom, Spanish (Replaces decal 1300387C1)

2шт.

35

1327572C1

DECAL

- Important, drive return

1шт.

35

1324985C1

DECAL

- important, drive return, French

1шт.

35

1324986C1

DECAL

- important, drive return, Spanish

1шт.

36

1989469C1

DECAL

- Important, fill this side of gearcase with 135 HEP lubricant

1шт.

37

1989314C1

DECAL

- Important, horizontal auger should be positioned 90 degree from trailing edge of vertical auger

1шт.

38

1989604C1

DECAL

- Important, drive return hose must always be connected to drive pressure coupler

1шт.
