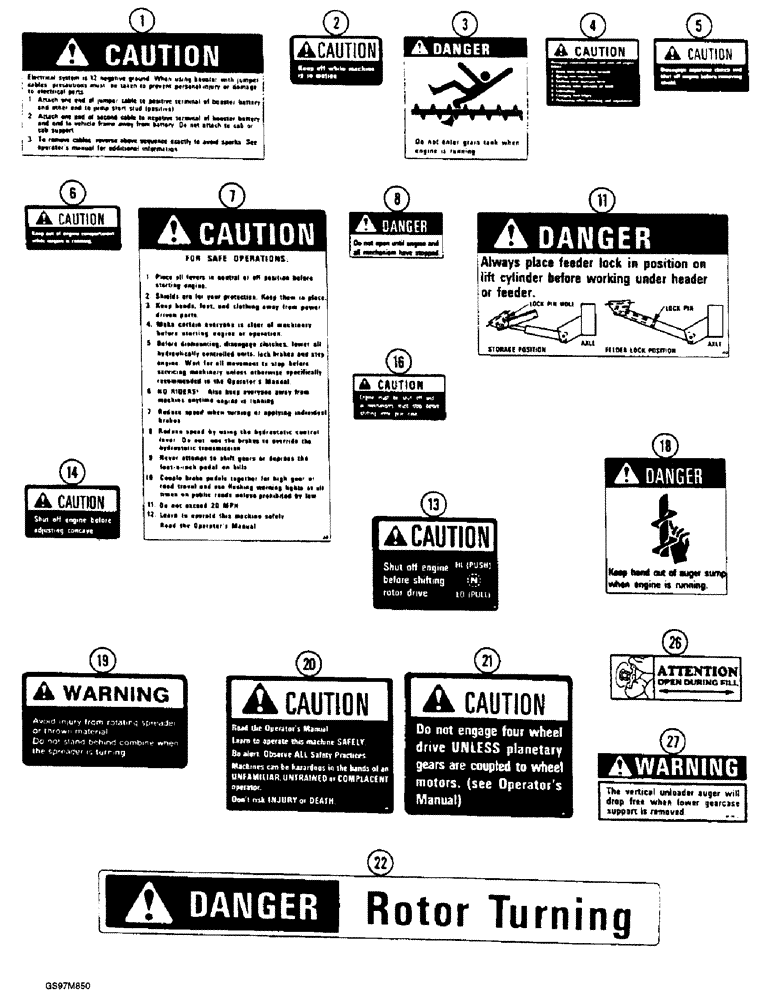

Запчасти Case IH 1660 (9H-34) - DECALS, SAFETY (12) - CHASSIS

1

245693C1

DECAL

- Caution, electrical system is 12 negative ground, jump start, battery

1шт.

1

245695C1

DECAL

- Caution, electrical system is 12 negative ground, jump start, battery, French

1шт.

1

245694C1

DECAL

- Caution, electrical system is 12 negative ground, jump start, battery, Spanish

1шт.

2

2754442R1

PRODUCT GRAPHIC

DECAL - Caution, keep off while machine is in motion

2шт.

2

1300076C1

DECAL

- Caution, keep off while machine is in motion, French

2шт.

2

222847C1

DECAL

- Caution, keep off while machine is in motion, Spanish

2шт.

3

1319494C1

PRODUCT GRAPHIC

DECAL - Danger, do not enter grain tank, 102 x 121 mm

3шт.

3

1319919C1

DECAL

- Danger, do not enter grain tank, 102 x 121 mm, French

3шт.

3

1319495C1

PRODUCT GRAPHIC

DECAL - Danger, do not enter grain tank, 152 x 149 mm

2шт.

3

1319920C1

DECAL

- Danger, do not enter grain tank, 152 x 149 mm, French

2шт.

3

1319924C1

DECAL

- Danger, do not enter grain tank, 152 x 149 mm, Spanish

2шт.

4

188198C1

PRODUCT GRAPHIC

DECAL - Caution, disengage separator clutch and shut off engine

1шт.

4

1300126C1

DECAL

- Caution, disengage separator clutch and shut off engine, French

1шт.

4

1300371C1

DECAL

- Caution, disengage separator clutch and shut off engine, Spanish

1шт.

5

188199C1

PRODUCT GRAPHIC

DECAL - Caution, disengage separator clutch and shut off engine before removing shield

2шт.

5

1300127C1

DECAL

- Caution, disengage separator clutch and shut off engine before removing shield, French

2шт.

5

1300331C1

DECAL

- Caution, disengage separator clutch and shut off engine before removing shield, Spanish

2шт.

6

188200C1

PRODUCT GRAPHIC

DECAL - Caution, keep out of engine compartment

3шт.

6

1300128C1

DECAL

- Caution, keep out of engine compartment, French

3шт.

6

1300333C1

DECAL

- Caution, keep out of engine compartment, Spanish

3шт.

7

2753929R5

DECAL

- Caution, for safe operation, combine operations

1шт.

7

1300134C3

DECAL

- Caution, for safe operation, general instructions, French

1шт.

7

1300391C3

DECAL

- Caution, for safe operation, general instructions, Spanish

1шт.

8

179749C2

PRODUCT GRAPHIC

DECAL - Danger, do not open until engine and all mechanism have stopped

7шт.

8

1300048C1

DECAL

- Danger, do not open until engine and all mechanism have stopped, French

7шт.

8

1300323C1

DECAL

- Danger, do not open until engine and all mechanism have stopped, Spanish

7шт.

11

189922C3

DECAL

- Danger, always place feeder lock in position

2шт.

11

1300130C2

DECAL

- Danger, always place feeder lock in position, French

2шт.

11

182188A1

DANGER DECAL

DECAL, DANGER, Always place feeder lock in position, Spanish (Replaces decal 1300377C2)

2шт.

13

188815C1

DECAL

- Caution, shut off engine before shifting rotor drive

2шт.

13

1300339C1

DECAL

- Caution, shut off engine before shifting rotor drive, French

1шт.

13

1300341C1

DECAL

- Caution, shut off engine before shifting rotor drive, Spanish

1шт.

14

185035C1

PRODUCT GRAPHIC

DECAL - Caution, shut off engine before adjusting concave

1шт.

14

1300058C1

DECAL

- Caution, shut off engine before adjusting concave, French

1шт.

14

1300353C1

DECAL

- Caution, shut off engine before adjusting concave, Spanish

1шт.

16

185442C1

DECAL

- Caution, engine must be shut off

2шт.

16

1300114C1

DECAL

- Caution, engine must be shut off, French

1шт.

16

1300385C1

DECAL

- Caution, engine must be shut off, Spanish

1шт.

18

1327760C1

DECAL

- Danger, keep hand out of auger sump, hand entanglement

1шт.

18

1329722C1

DECAL

- Danger, keep hand out of auger sump, hand entanglement, French

1шт.

18

1329723C1

DECAL

- Danger, keep hand out of auger sump, hand entanglement, Spanish

1шт.

19

1327761C1

DECAL

- Warning, avoid injury from rotating spreader or thrown material, instructions

1шт.

19

1329725C1

DECAL

- Warning, avoid injury from rotating spreader or thrown material, French

1шт.

19

1329726C1

DECAL

- Warning, avoid injury from rotating spreader or thrown material, Spanish

1шт.

20

61907C1

DECAL

- general warning

1шт.

21

1310710C1

DECAL

- Caution, do not engage four wheel drive

1шт.

21

1300613C1

DECAL

- Caution, do not engage four wheel drive, French

1шт.

21

1300689C1

DECAL

- Caution, do not engage four wheel drive, Spanish

1шт.

22

174797C1

DECAL

- danger, rotor turning

1шт.

26

J910778

DECAL

- Caution, open during fill

1шт.

27

1541591C1

DECAL

- Warning, the vertical unloader auger will drop free

1шт.
