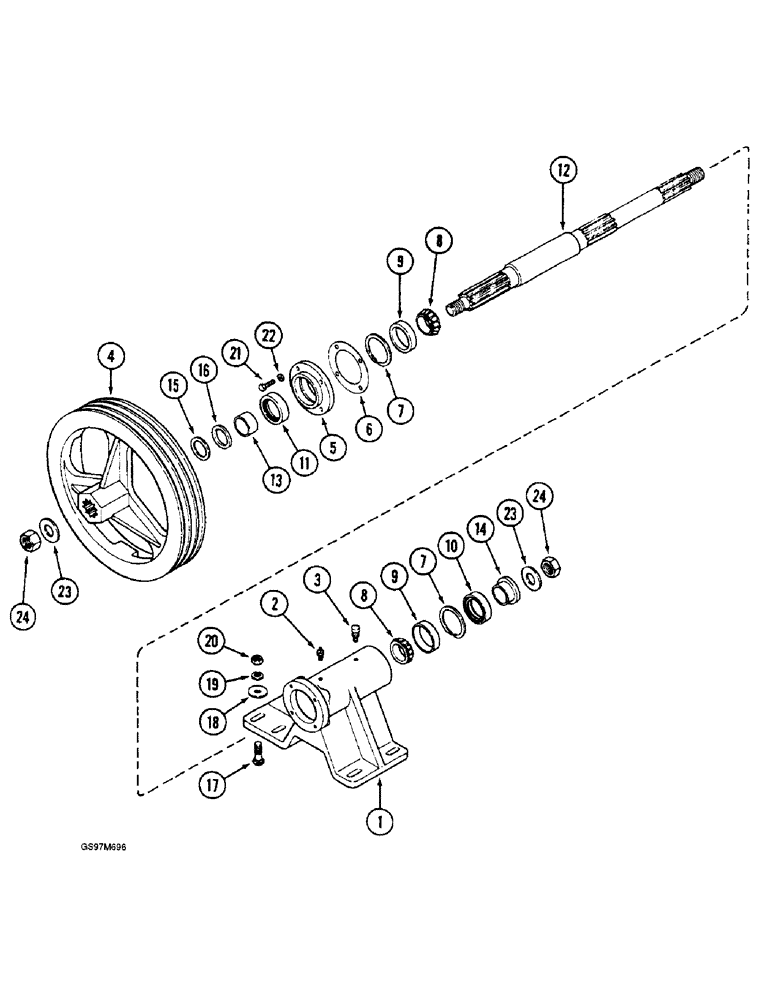

Запчасти Case IH 1660 (9A-16) - JACKSHAFT BEARING BLOCK, FOR USE WITH DISCHARGE BEATER (13) - FEEDER

1

181369C1

BEARING HOUSING

BLOCK - bearing

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, extra short

1шт.

3

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

1шт.

4

191452C2

PULLEY

- driven, 375 mm (14-3/4 inch) OD

1шт.

5

189419C1

FLANGE,2.4788" ID x 4.5" OD x 1.3"

HUB - rear bearing

1шт.

6

156229C1

SHIM,76.45mm ID x 111.25mm OD x 0.13mm Thk

Bearing Hub 0.005" Thk

1шт.

6

188183C1

SHIM,0.007" Thk

Bearing Hub 0.007" Thk

1шт.

6

188184C1

SHIM,0.010" Thk

Bearing Hub 0.010" Thk

1шт.

7

378691R1

RING

- retaining

2шт.

8

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

CONE - tapered roller bearing, 1-15/32 inch ID

2шт.

9

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP - tapered roller bearing, 2-31/64 inch OD

2шт.

10

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

Hub Front 1.875" ID x 2.503" OD x .62

1шт.

11

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Hub Rear 1.752" ID x 2.503" OD x .689

1шт.

12

1957657C2

SHAFT

- drive

1шт.

13

191518C2

SPACER

BUSHING - jackshaft, rear

1шт.

14

188930C1

RING,38.05mm ID x 57.15mm OD x 27mm L

SPACER - front

1шт.

15

162678C1

WASHER,1 1/2" ID x 2" OD x .060" Thk

Jackshaft, Flat, Special 1 1/2" ID x 2" OD x .060" Thk

1шт.

16

160191C2

WASHER

- flat, special, 1-1/2 x 2 x 3/16 inch

1шт.

17

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

6шт.

18

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

6шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

21

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

2шт.

24

232-41316

NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.
