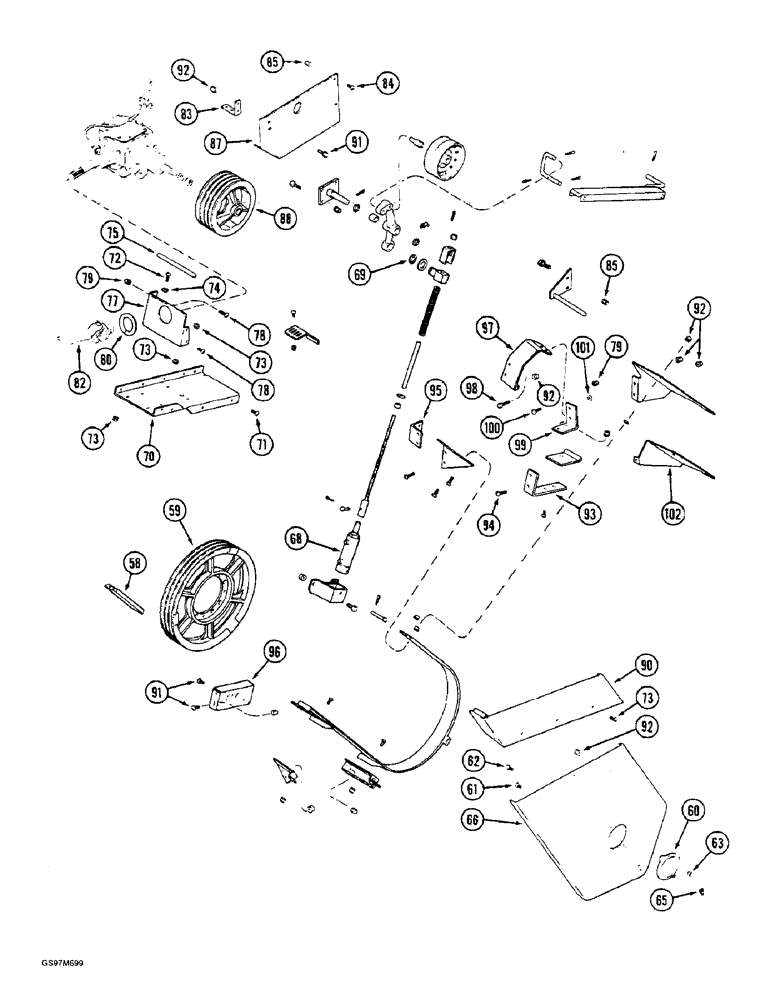

Запчасти Case IH 1660 (9A-22) - FEEDER DRIVE (CONTD) (13) - FEEDER

58

192738C1

BELT,22.225 mm W x 3814.70 mm L, 3, Ribs

V-BELT , Drive, Feeder (Without rock trap) 22.225 mm W x 3814.70 mm L, 3, Ribs

1шт.

58

1315168C1

V-BELT,22.23 mm W x 4228.70 mm L

Drive, Feeder, With Rock Trap 22.23 mm W x 4228.70 mm L

1шт.

59

1305297C1

PULLEY

- driven, feeder, 573 mm (22-9/16 inch) OD

1шт.

60

188315C1

DOOR

- access, belt drive cover

1шт.

61

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

1шт.

62

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

63

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

65

129-409

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC, door

1шт.

66

186189C95

SHIELD

ASSEMBLY - belt, includes decal, Includes: decal listed below

1шт.

188199C1

PRODUCT GRAPHIC

DECAL - Caution, disengage separator clutch and shut off engine before removing shield

1шт.

68

REF

INSTRUCTION

CYLINDER ASSEMBLY - feeder, parts list page 8-058

1шт.

69

100-11150

SNAP RING,#150, Ext

Ring, Snap, , spring rod #150, Ext

1шт.

70

194521C1

SUPPORT

- gear housing

1шт.

71

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

73

231-5146

FLANGE NUT,3/8"-16

6шт.

74

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

4шт.

75

191497C1

SEALING STRIP

SEAL - support, 270 mm (10-5/8 inch) long

1шт.

77

191399C1

SUPPORT

- gear housing rear

1шт.

78

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

7шт.

79

231-5146

FLANGE NUT,3/8"-16

7шт.

80

191496C1

SEALING STRIP

SEAL - support, 300 mm (11-7/8 inch) long

1шт.

82

191595C91

JOINT ASSY.

JOINT ASSEMBLY - drive, parts list page 9A-08

1шт.

83

186081C1

ANGLE

- upper shield

1шт.

84

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

85

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

87

186080C2

SUPPORT

- shield, upper

1шт.

88

191603C2

PULLEY

- drive, 305 mm (12 inch) OD

1шт.

90

1315085C1

GUARD

SHIELD - extension, belt, with rock trap

1шт.

91

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

8шт.

92

231-5146

FLANGE NUT,3/8"-16

12шт.

93

1315078C3

SUPPORT

- extension, with rock trap

1шт.

Prior to P.I.N. JJC0103109.

1шт.

94

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

6шт.

95

1315075C1

ANGLE

SUPPORT - shield rear extension

1шт.

96

1315083C1

SUPPORT

- shield lower extension, with rock trap

1шт.

97

1315232C1

SUPPORT

- stiffener, upper, with rock trap

1шт.

Prior to P.I.N. JJC0103109.

1шт.

97

1989332C2

SUPPORT

- stiffener, upper, with rock trap

1шт.

P.I.N. JJC0103109 and after.

1шт.

98

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

99

1315079C1

SUPPORT

- shield, upper, with rock trap

1шт.

Prior to P.I.N. JJC0103109.

1шт.

101

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

- flat, 13/32 x 1-1/4 x 31/64 inch

1шт.

102

1989328C1

COVER

- drive belt, upper

1шт.

72

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.

100

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
