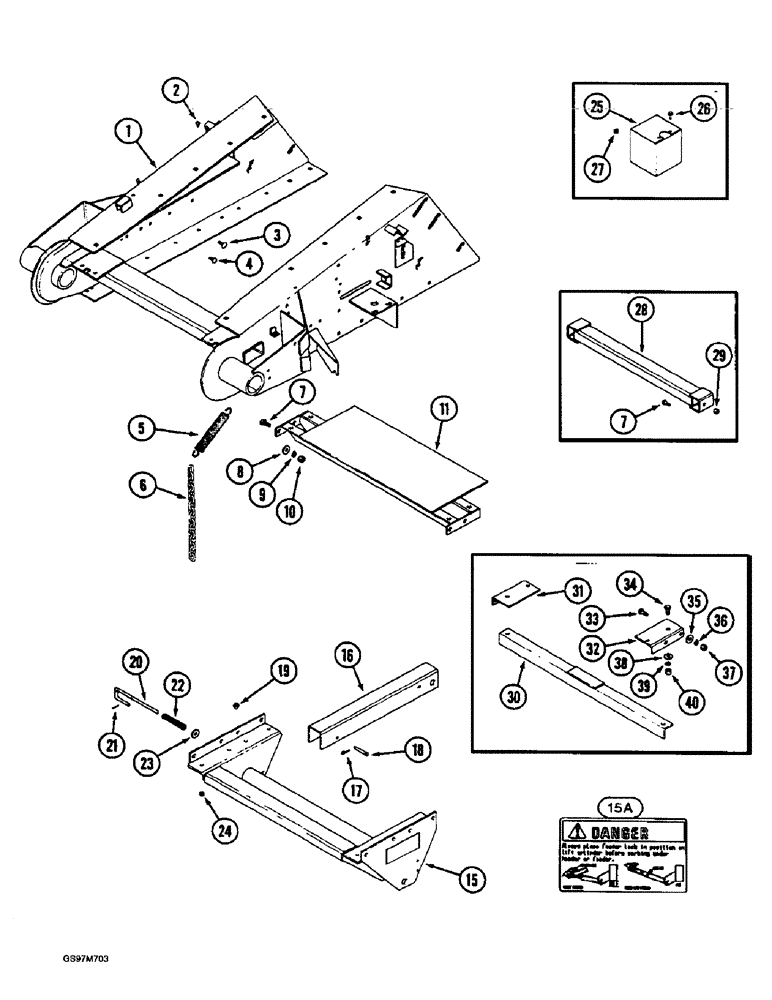

Запчасти Case IH 1660 (9A-30) - FEEDER, LIFT BRACKET AND SUPPORTS (13) - FEEDER

1

REF

INSTRUCTION

HOUSING - feeder, See Figure 9A-28

1шт.

3

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

1шт.

4

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

1шт.

5

635503R1

SPRING,148.8mm Free Length

- latch, lower door

2шт.

6

167570C1

CHAIN,203.2mm L

- latch, lower door

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

252124A1

SUPPORT

- feeder housing (Replaces support 1345329C1)

1шт.

15

1541620C1

SUPPORT ASSY.

BRACKET ASSEMBLY - support, lift, 1194 mm (47 inch) feeder (Replaces bracket 197382C3), Includes: Ref. 15A

1шт.

15

1541619C1

SUPPORT ASSY.

BRACKET ASSEMBLY - support, lift, 1384 mm (54-1/2 inch) feeder (Replaces bracket 187102C3), Includes: Ref. 15A

1шт.

15a

189922C3

DECAL

- Danger, feeder lock

1шт.

16

197554C3

CHANNEL

- lift cylinder lock

1шт.

17

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

1шт.

18

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

19

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

1шт.

20

197849C1

ROD

- cylinder lift lock

1шт.

21

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

22

M296

SPRING

- compression

1шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

24

231-5146

FLANGE NUT,3/8"-16

8шт.

25

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

26

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

26

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

27

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

2шт.

28

187192C1

SUPPORT ASSY.

SUPPORT - rear bottom, prior to P.I.N. JJC0103067

1шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

30

1319744C1

SUPPORT ASSY.

STIFFENER - support, prior to P.I.N. JJC0039262

1шт.

31

175913C1

ANGLE

- adapter, left-hand, prior to P.I.N. JJC0039262

1шт.

32

175914C1

ANGLE

- adapter, right-hand, prior to P.I.N. JJC0039262

1шт.

33

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, prior to P.I.N. JJC0039262

4шт.

34

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch, prior to P.I.N. JJC0039262

2шт.

35

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, prior to P.I.N. JJC0039262

2шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Prior to P.I.N. JJC0039262 1/2"

4шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Prior to P.I.N. JJC0039262 1/2"-13, G5

4шт.

38

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- square hole, 21/32 x 1-1/4 x 1/16 inch, prior to P.I.N. JJC0039262

2шт.

39

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Prior to P.I.N. JJC0039262 5/8"

2шт.

40

425-1010

NUT,5/8"-11, G5

Prior to P.I.N. JJC0039262 5/8"-11, G5

2шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

8шт.
