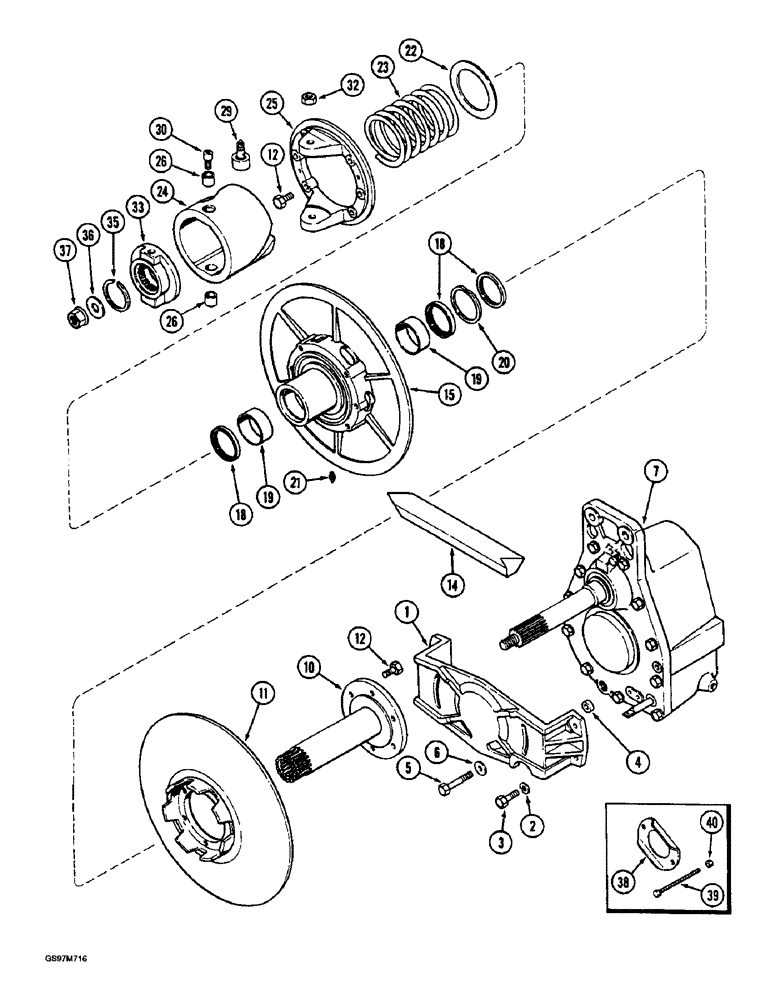

Запчасти Case IH 1660 (9B-08) - ROTOR DRIVE, PULLEY AND CAM, P.I.N. JJC0026711 AND AFTER (14) - ROTOR, CONCANVES & SIEVE

1

194058C1

SUPPORT

- rear gear housing

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

194077C1

SPACER

- gear housing

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

6

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

7

1315340C3

HOUSING ASSY.

HOUSING ASSEMBLY - rotor drive, parts list Figure 9B-12

1шт.

10

1315291C2

HUB

- fixed variable pulley, welded, no longer available, order hub 184489C1

1шт.

10

184489C1

HUB

- fixed variable pulley, machined forged

1шт.

11

1315292C2

PULLEY

- fixed variable

1шт.

12

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, self-locking, 1/2 NC x 1-1/2 inch, grade 8

12шт.

14

193923C4

V-BELT,2134.68 mm L

Rotor variable drive 2134.68 mm L

1шт.

15

1315294C4

PULLEY

ASSEMBLY - adjustable variable, Includes: Ref. 18 - 21 and kit

1шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

KIT - repair, bushing and seal, variable pulley

1шт.

18

193965C91

SEAL

- pulley

3шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - pulley, order kit 188839C92

2шт.

20

537602R1

RING

- pulley retaining

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

22

1315521C1

THRUST BEARING

WASHER - thrust

1шт.

23

193936C2

SPRING

- rotor drive torque sensing, 198 mm (7-13/16 inch) free length, no longer available, order spring 184486C1

1шт.

23

184486C1

SPRING

- rotor drive torque sensing, 229 mm (9-1/32 inch) free length

1шт.

24

1315299C1

CAMSHAFT

CAM - rotor drive torque sensing

1шт.

1315344C2

HUB

YOKE ASSEMBLY - cam follower, torque sensing, models without cross flow cleaning system, Includes: Ref. 25 & 26

1шт.

184478C1

CAM

YOKE ASSEMBLY - cam follower, torque sensing, models with cross flow cleaning system, Includes: Ref. 25 & 26

1шт.

25

NSS

NOT SOLD SEPARAT

YOKE - cam follower, order yoke assembly

1шт.

26

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

29

1315343C1

BEARING,38.1 mm OD x 22.22 mm

- cam follower

2шт.

30

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

32

425-1110

NUT,5/8"-18, G5

2шт.

33

1315297C2

HUB,20T

CAM - torque sensing

1шт.

35

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- retaining, hub cam follower

1шт.

36

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

37

1315288C1

FLANGE NUT

- hex, self-locking, special, 7/8 inch NC

1шт.

38

1315304C2

PLATE

- torque spring

1шт.

Used to service variable speed pulley.

1шт.

39

1319996C2

ROD

BOLT - torque sensing spring, special, 11-1/2 inch (Replaces bolt 186365C1)

2шт.

40

425-106

NUT,3/8"-16, Cl 5

1шт.
