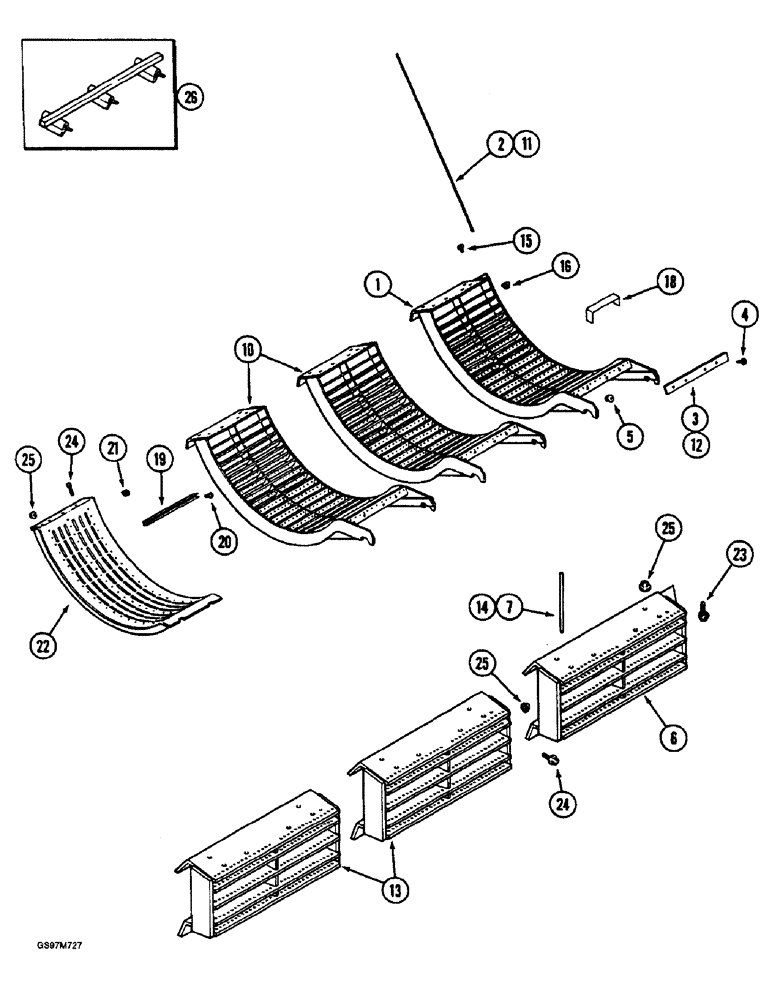

Запчасти Case IH 1660 (9B-30) - CONCAVES, CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE

1

1309208C3

CONCAVE

ASSEMBLY - front, small wire, hardened, Includes: Ref. 2 & 3

1шт.

2

1302602C2

ROD

- concave, 3/16 x 29 inch long

30шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

1

1302606C5

CONCAVE

ASSEMBLY - front, large wire, hardened, Includes: Ref. 2 & 3

1шт.

2

1302601C2

STEM

ROD - concave, 1/4 x 29 inch long

14шт.

3

193859C1

PLATE

BAR - concave wire retaining

2шт.

4

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

- serrated Phillips truss head, 3/8 NC x 1 inch (Replaces screw 1319406C1)

1шт.

5

231-5146

FLANGE NUT,3/8"-16

1шт.

6

1318553C1

CONCAVE

ASSEMBLY - small wire extension, Includes: Ref. 7

1шт.

7

1318561C1

PIN

PIN - small wire

30шт.

6

1318551C1

CONCAVE

ASSEMBLY - large wire extension, Includes: Ref. 7

1шт.

7

1318560C1

LARGE PIN

PIN - large wire

14шт.

10

1309210C3

CONCAVE

ASSEMBLY - No. 2 and 3 small wire, grain, Includes: Ref. 11 & 12

2шт.

11

1302602C2

ROD

- concave, 3/16 x 29 inch long

30шт.

12

193859C1

PLATE

BAR - concave wire retaining

2шт.

10

1302607C4

CONCAVE

ASSEMBLY - No. 2 and 3 large wire, grain, Includes: Ref. 11 & 12

1шт.

11

1302601C2

STEM

ROD - concave, 1/4 x 29 inch long

14шт.

12

193859C1

PLATE

BAR - concave wire retaining

2шт.

13

1318554C1

CONCAVE

ASSEMBLY - No. 2 and 3 small wire extension, Includes: Ref. 14

1шт.

14

1318561C1

PIN

PIN - small wire

30шт.

13

1318552C1

CONCAVE

ASSEMBLY - No. 2 and 3 large wire exension, Includes: Ref. 14

2шт.

14

1318560C1

LARGE PIN

PIN - large wire

14шт.

15

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

1300673C91

PACKAGE

KIT - concave filler, small wire, set of six, no longer available as a kit, order channels separately, Includes: Ref. 18

1шт.

18

1309425C1

CHANNEL

- concave filler, small wire

6шт.

1300716C91

CHANNEL

KIT - concave filler, large wire, set of six, no longer available as a kit, order channels separately, Includes: Ref. 18

1шт.

18

1309424C1

CHANNEL

- concave filler, large wire

6шт.

19

191536C1

CHANNEL

- grate adjusting, corn

7шт.

19

191536C1

CHANNEL

- grate adjusting, grain

21шт.

20

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

22

191538C3

GRATE ASSY.

GRATE - slotted

3шт.

22

1302562C1

CONCAVE

GRATE - keystock

1шт.

22

1319750C1

GRATE

- smooth, sunflower seed

1шт.

23

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

1шт.

24

410-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Gr 8

- hex serrated flange, 3/8 NC x 1-1/4 inch, grade 8

1шт.

25

231-5146

FLANGE NUT,3/8"-16

1шт.

26

1324046C3

BAR

- concave, filler

1шт.
