(9C-09A) - CLEANING FAN, HOUSING, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM

Запчасти Case IH 1660 (9C-09A) - CLEANING FAN, HOUSING, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS

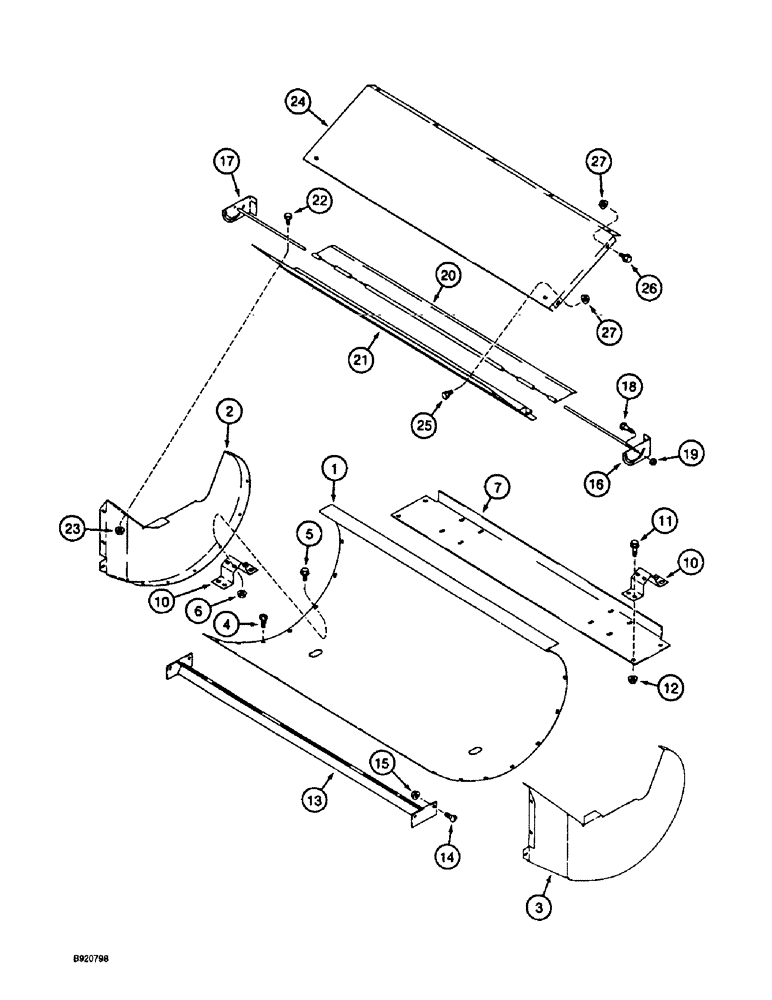

Схема запчастей Case IH 1660 - (9C-09A) - CLEANING FAN, HOUSING, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS
4
21
27
18
10
2
20
7
12
23
26
19
27
3
17
6
14
15
10
24
25
5
13
22
1
16
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1989379C1

HOUSING

- cleaning fan

1шт.

2

1347012C2

PLATE

- end, fan housing, left-hand

1шт.

3

1347013C2

PLATE

- end, fan housing, right-hand

1шт.

4

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- serrated slotted truss head, 5/16 NC x 1/2 inch (Replaces screw 632226R1)

14шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex flange, 5/16 NC x 3/4 inch

9шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

21шт.

7

1541641C2

SUPPORT

- front, housing mounting brackets

1шт.

10

1541543C1

BRACKET

- front mounting, fan housing

2шт.

11

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex, flange lock, 1/2 NC x 1 inch

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

13

191703C3

SUPPORT ASSY.

SUPPORT - rear, fan housing

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - slotted truss head, 3/8 NC x 3/4 inch (Replaces bolt 150031C1)

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

1541536C1

LARGE PLATE

PLATE - lock, fan cutoff, right-hand

1шт.

17

1541535C1

LARGE PLATE

PLATE - lock, fan cutoff, left-hand

1шт.

18

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

1989611C1

HOOD

PLATE - fan cutoff

1шт.

21

1541628C1

HOOD

PLATE - top, cleaning fan

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4" (Replaces bolt 632227R1)

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

24

1989377C2

SUPPORT

PLATE - filler, fan to auger bed

1шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch (Replaces bolt 632227R1)

7шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

9шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.
