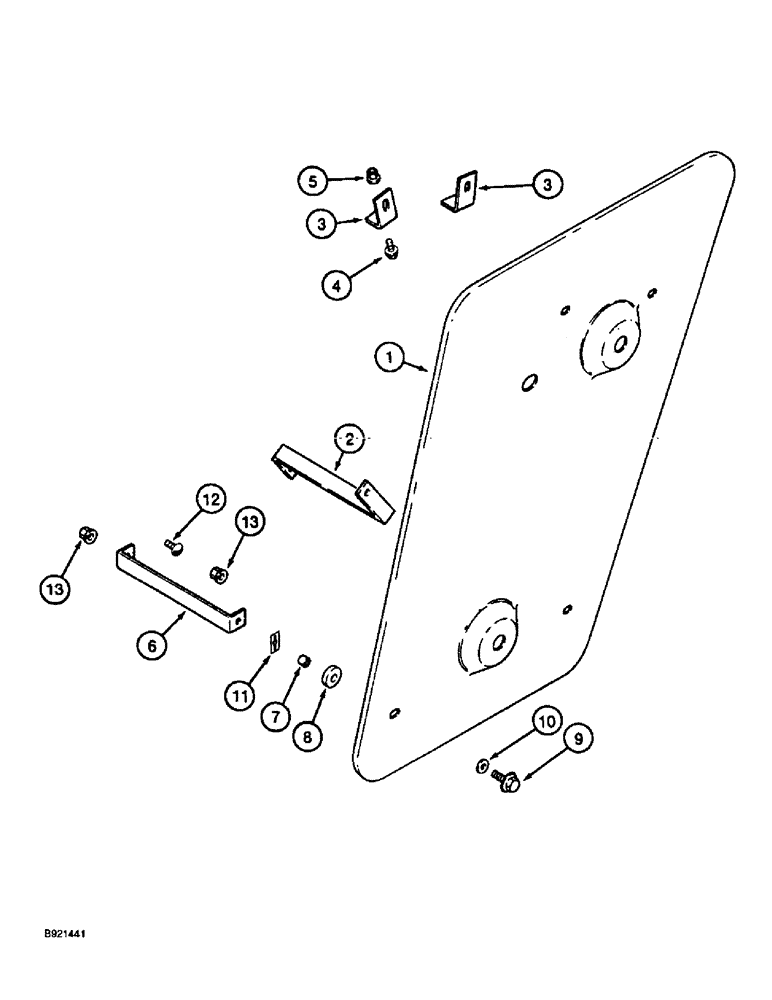

Запчасти Case IH 1660 (9C-17C) - CLEANING FAN, DRIVE SPEED, RIGHT-HAND SIDE, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS

1

1312758C2

GUARD

SHIELD - fan drive, right-hand side

1шт.

2

111252A2

SUPPORT

BRACKET - fan shield, lower front

1шт.

3

194756C2

ANGLE

- fan drive pulley shield

2шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex flange lock, 5/16 NC x 3/4 inch (Replaces bolt 202107C1)

1шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

1шт.

6

1312759C1

HOLDER

BRACKET - fan shield, lower rear

1шт.

7

23323H

SPACER,1/4" Pipe x 1/2"

- shield bracket

4шт.

8

1312760C1

RUBBER WASHER

- rubber, shield bracket

4шт.

9

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

10

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

11

1254276C1

PUSH-ON NUT

- push fastener, 5/16 inch

4шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4" (Replaces bolt 632227R1)

1шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

5шт.
