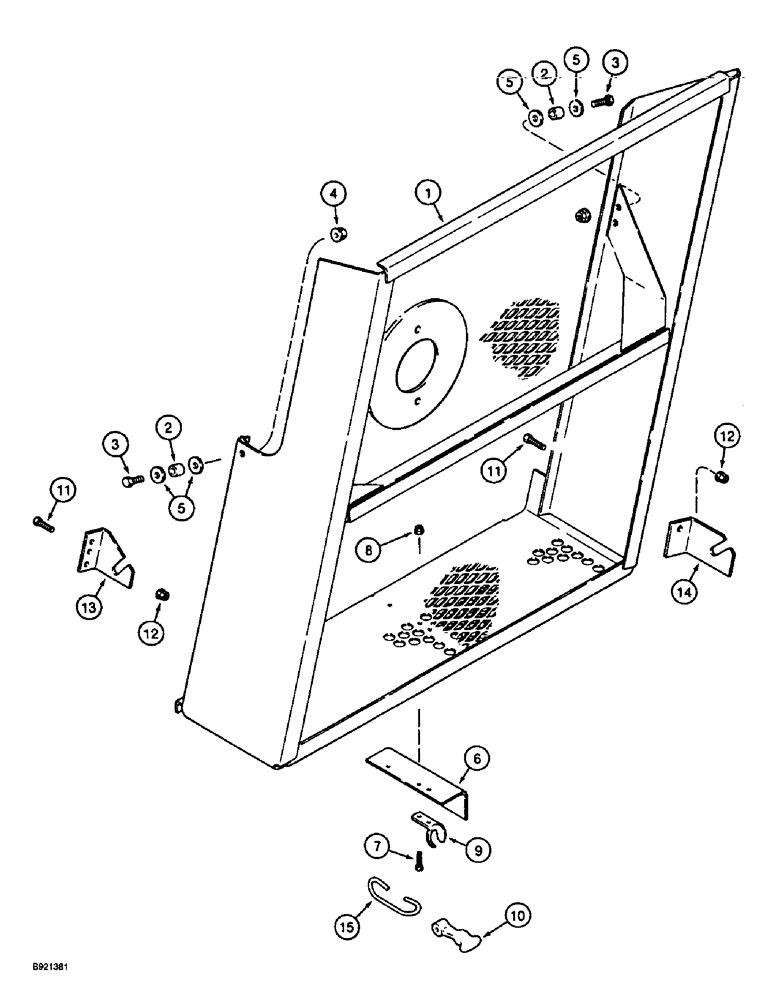

Запчасти Case IH 1660 (9C-24) - RIGHT-HAND FAN INLET AND DRIVE SHIELD, MODELS WITH EXTENDED LENGTH CLEANING SYSTEM (15) - BEATER & CLEANING FANS

1

182846C5

HOUSING

SHIELD - fan inlet and drive, right-hand, if used

1шт.

2

561277R1

SPACER,5/8" Tube x 1/2"

- tube, 13/32 ID x 5/8 OD x 7/16 inch

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

4

231-5146

FLANGE NUT,3/8"-16

(Replaces nut 482256R1) Flg, USR, 3/8"-16

2шт.

5

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

4шт.

6

181496C1

SHIELD

- latch

1шт.

7

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

3шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

(Replaces nut 174097C1) Flg, USR, #10-24

3шт.

9

L105124

LATCH HOOK

HOOK - fan shield latch bracket (Replaces hook 764071C1)

1шт.

10

494307C1

LATCH

HOOK - shield hold-down latch

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC (Replaces nut 938017R1)

2шт.

13

182859C2

SUPPORT

- fan shield rear, right-hand

1шт.

14

182861C1

ANGLE

- front right-hand shield

1шт.

15

1302723C2

HOOK

- inlet shield

1шт.
