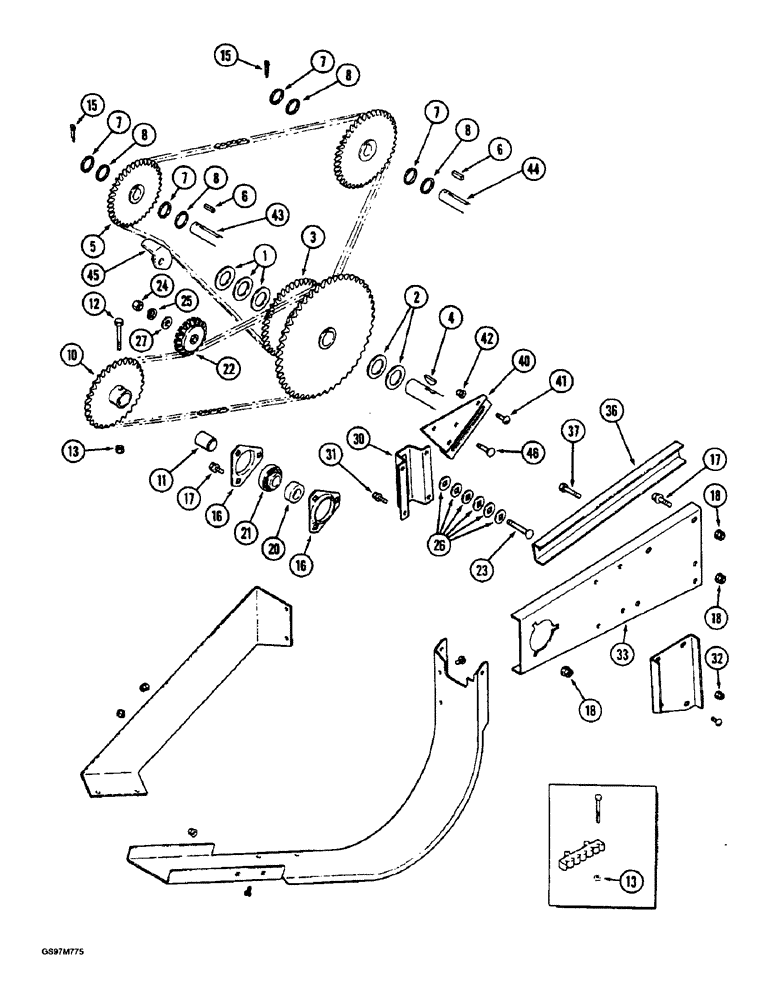

Запчасти Case IH 1660 (9E-18) - GRAIN TANK UNLOADER, CHAIN DRIVE, PRIOR TO P.I.N. JJC0102897 (17) - GRAIN TANK & UNLOADER

1

162679C1

WASHER

WASHER - flat, 1-13/32 x 2-1/4 x 1/16 inch

3шт.

2

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, 1-13/32 x 2-1/4 x 1/8 inch

1шт.

3

192511C2

SPROCKET ASSY.

SPROCKET - driven, 43 and 57 tooth

1шт.

3

REF

INSTRUCTION

SPROCKET - driven, not shown

1шт.

For use with retrofit kit only. See Figure 9E-22

1шт.

4

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

5

192922C1

SPROCKET

- driven, front, 43 tooth, prior to P.I.N. JJC0040895

1шт.

5

187331C1

SPROCKET ASSY.

SPROCKET - driven, front, 49 tooth, P.I.N. JJC0040895 through JJC0102896

1шт.

6

Q53

KEY,1/4" Sq x 1", Par

2шт.

7

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

8шт.

8

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

10

1321167C92

DRIVE SPROCKET

SPROCKET ASSEMBLY - drive, Includes: Ref. 11

1шт.

11

574294R1

BUSHING

- sprocket

1шт.

12

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

1шт.

13

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

15

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

16

571425R1

FLANGED BEARING

- bearing

2шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.

20

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- shaft, sprocket

1шт.

21

557115R11

COLLAR

COLLAR - locking

1шт.

22

565442R91

SPROCKET

- tightener, 17 tooth

1шт.

23

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

BOLT - carriage, 1/2 NC x 2-1/2 inch

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

26

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- flat, square hole, 17/32 x 1-1/4 x 1/8 inch

1шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

30

192901C1

SUPPORT

BRACKET - support, sprocket

1шт.

31

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

33

192899C2

SUPPORT

- jackshaft, outer

1шт.

36

1319469C1

CHANNEL

- support

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

40

193779C1

SUPPORT

PLATE - support

1шт.

41

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

3шт.

43

REF

INSTRUCTION

SHAFT - auger, See Figure 9E-26

2шт.

44

REF

INSTRUCTION

SHAFT - auger, grain tank, See Figure 9E-26

1шт.

45

936878R1

BLOCK

- tightener

1шт.

46

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch, grade 8

1шт.
