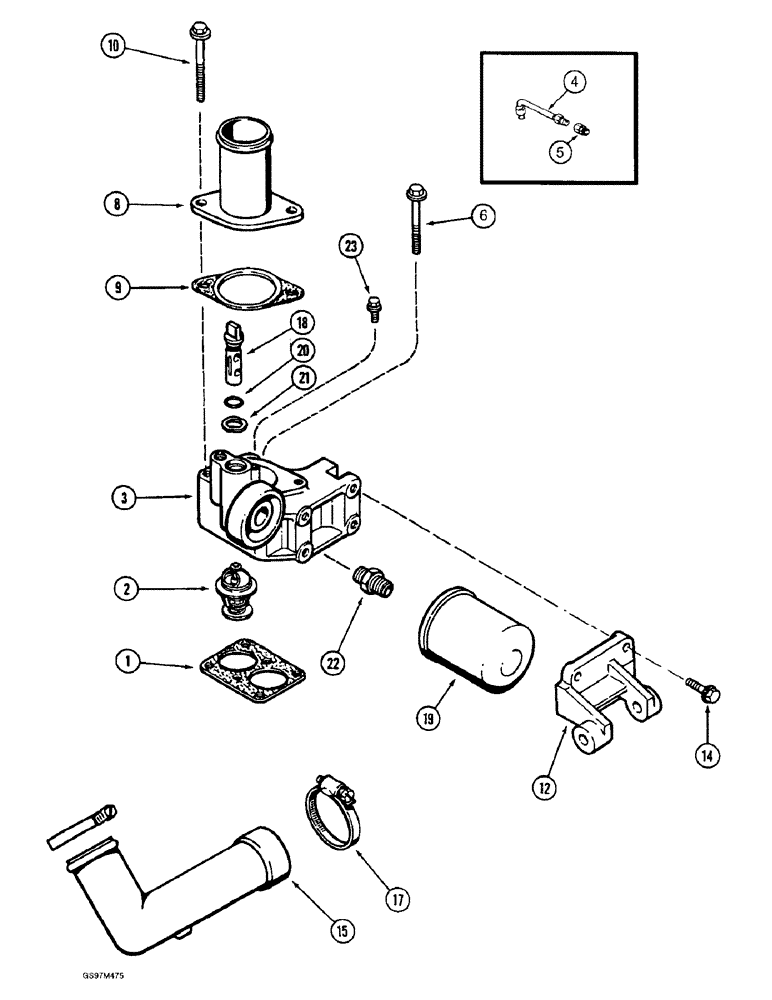

Запчасти Case IH 1660 (2-30) - THERMOSTAT HOUSING, 6T-830 ENGINE (01) - ENGINE

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J928639

THERMOSTAT

- engine coolant, 95 degree Celsius (Replaces thermostat J907242)

2шт.

3

J913708

HOUSING

- thermostat, no longer available, order housing J924586, tube J924589 and adapter 222-22, items 3 - 5 below

1шт.

3

J924586

HOUSING

- thermostat

1шт.

When using housing J924586, tube J924589 and adapter 222-22, items 4 and 5, must be ordered.

1шт.

4

J924589

TUBE,6.35 mm OD x 112.6 mm L

- vent

1шт.

5

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/8 inch PT, tube to thermostat housing

1шт.

6

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

2шт.

8

J912800

CONNECTION

TUBE - water outlet

1шт.

9

J918779

GASKET,1.19mm Thk

- outlet tube, water (Replaces gasket A77705)

1шт.

10

845-8095

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 95 mm

2шт.

12

J918544

SUPPORT

- mounting, alternator (Replaces support J911480)

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

4шт.

15

J907208

TUBE,50.8 mm DIA x 295.3 mm L

- water inlet, if used

1шт.

17

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, 2-1/16 - 3 inch diameter, if used

1шт.

18

J912837

COCK

VALVE - shutoff

1шт.

19

A77544

FILTER

- water conditioning, precharge

1шт.

20

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

21

A77625

WASHER

- spring

1шт.

22

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

- water filter

1шт.

23

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.
