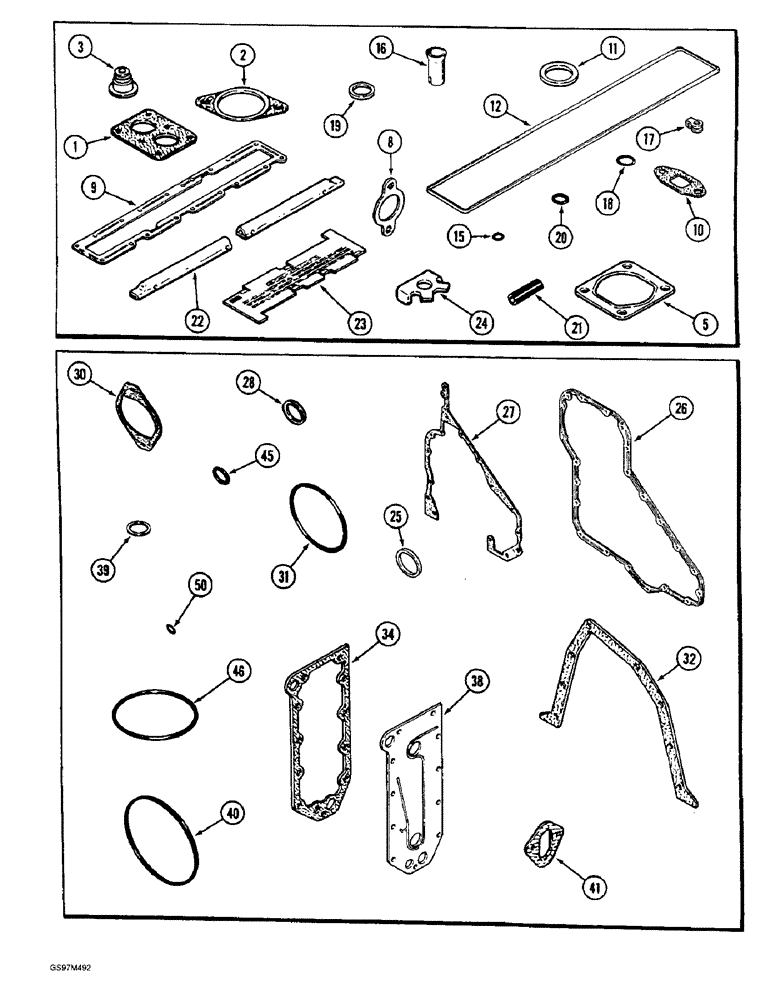

Запчасти Case IH 1660 (2-60) - GASKET KITS, 6T-830 ENGINE, VALVE GRIND (01) - ENGINE

A77794

GASKET KIT

KIT - gasket, valve grind, (Replaces kit A77678), Includes: Ref. 1 - 24

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-29.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, water (Replaces gasket A77705)

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide (Replaces intake seal J912550 and exhaust seal J912549)

12шт.

5

J911941

GASKET

- mounting, turbocharger

1шт.

8

J911942

GASKET

- exhaust manifold, 1.27 - 1.40 mm thick

6шт.

9

J914311

MANIFOLD GASKET

- manifold intake

1шт.

10

J928919

GASKET

- turbo oil drain tube (Replaces gasket J914388)

1шт.

11

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

12

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

16

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

17

J903380

SEAL

- connector

7шт.

18

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

19

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

20

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

(Replaces O-ring A29197) -111, 70 Duro, .424" ID x .103" Thk

1шт.

21

J930827

HOSE,51.00 mm

Connector, Replaces J918610 51.00 mm

1шт.

22

J919677

TUBE

- oil, rocker arm

1шт.

23

J823921

GAUGE

- cylinder head, bolt length, used, stretched bolt

1шт.

24

J914708

LOCKING PLATE

PLATE - locking, bolt

12шт.

A77857

KIT

gasket, cylinder block, Replaces: kits A77581 and A77726, Includes: Ref. 25 - 50

1шт.

For complete engine overhaul order 1 each of valve grind kit, cylinder block kit, oil pan kit Fig. 2-59, front and rear crankshaft seal kit Fig. 2-49 and required cylinder head gasket Fig. 2-29.

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block

1шт.

26

J917779

GASKET,0.98mm Thk

- front gear cover, high mount (Replaces gasket J913429), cylinder block

1шт.

26

J917780

GASKET,0.98mm Thk

GASKET - front gear cover, low mount, cylinder block

1шт.

27

J926757

GASKET

- timing gear housing, cylinder block

1шт.

28

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing, rectangular, cylinder block

1шт.

30

J931608

GASKET

- access cover plate (Replaces gasket J919601), cylinder block

1шт.

31

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump, cylinder block

1шт.

32

J914301

GASKET

- rear cover retainer, cylinder block

1шт.

34

J918174

GASKET,0.71mm Thk

- cooler core (Replaces gasket J914307), cylinder block

1шт.

38

J929011

GASKET,1.19mm Thk

- cooler cover (Replaces gasket J918332), cylinder block

1шт.

39

J901798

SEALING WASHER

WASHER - sealing, cylinder block

1шт.

40

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, cylinder block

1шт.

41

J931348

GASKET

- mounting, fuel transfer pump (Replaces gasket J914304), cylinder block

1шт.

45

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces O-ring 253070R1), cylinder block -212, 70 Duro, .859" ID x .139" Thk

1шт.

45

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces O-ring 253070R1), cylinder block -212, 70 Duro, .859" ID x .139" Thk

1шт.

46

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve (Replaces O-ring J917737), cylinder block

6шт.

50

J913994

O-RING

- sealing, timing pin, cylinder block

1шт.
