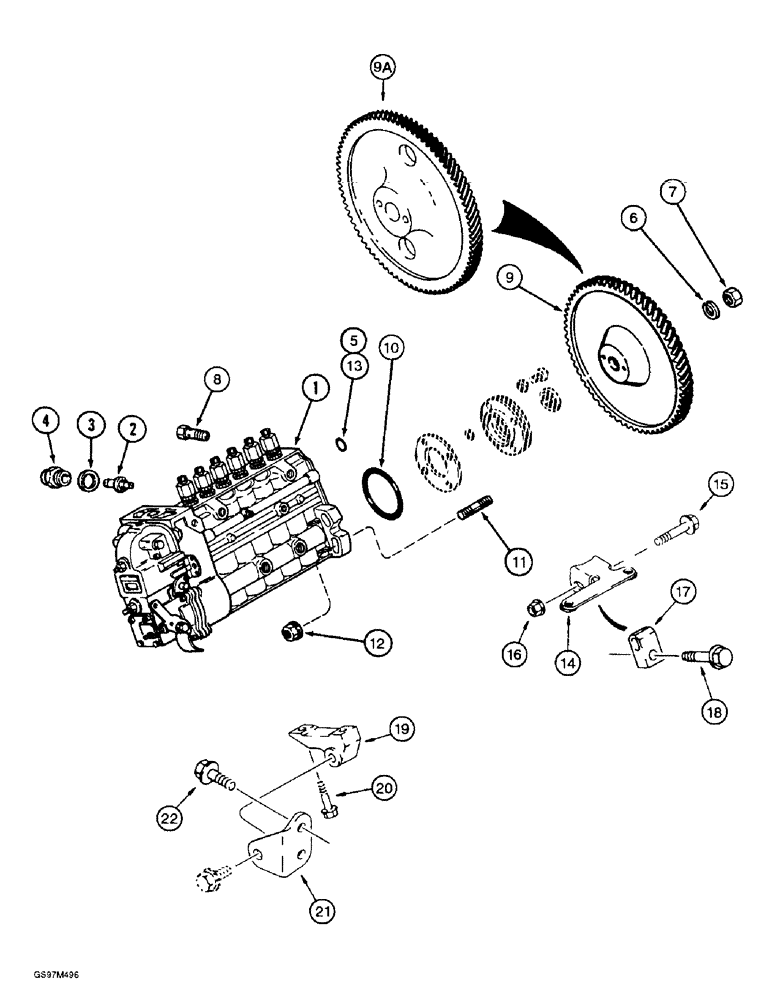

Запчасти Case IH 1660 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE (02) - FUEL SYSTEM

1

J914123

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, no longer available, order pump assembly J915687, parts list Figure 3-8, Includes: Ref. 2 - 8

1шт.

Pump assembly stamped CDC No. 3914123.

1шт.

1

JR915687

REMAN-INJECTION PUMP

1шт.

1

JC915687

CORE-INJECTION PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - timing

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - plug

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - timing

1шт.

5

J916284

O-RING

O-RING - oil port, if used

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT - banjo

1шт.

9

J912614

GEAR

- fuel pump, if used

1шт.

9a

J931380

GEAR

- fuel pump drive, if used

1шт.

10

J916284

O-RING

- fuel pump gear, if used (Replaces O-ring J910501) Australia Only

1шт.

10

J924605

SEAL

O-RING - fuel pump gear, if used

1шт.

10

A41856

O-RING,3mm Thk x 75mm ID

O-RING - fuel pump gear, if used

1шт.

11

J915036

STUD

- pump mounting, if used, 55 mm (2-5/32 in)

4шт.

12

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm (Replaces nut J902662)

4шт.

13

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

- oil port, if used

1шт.

14

J921357

HOLDER

BRACKET - injection pump, upper, if used

1шт.

15

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8, Upper bracket to support, if used

1шт.

16

J900589

NUT

- hex flange, special, 8 mm, if used

1шт.

17

J926781

SUPPORT

- bracket to fuel pump, if used

1шт.

18

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 40 mm, support to pump, if used

1шт.

19

J926273

SUPPORT

- injection pump, lower, if used

1шт.

20

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

Injection pump to lower support, If used Hex Flg, M8 x 90, 8.8

2шт.

21

J930841

SUPPORT

- injection pump to cylinder block, if used

1шт.

22

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 20 mm, support to block

2шт.

23

J920622

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

BOLT, , If used, Not shown Hex Flg, M10 x 30, 10.9

1шт.
