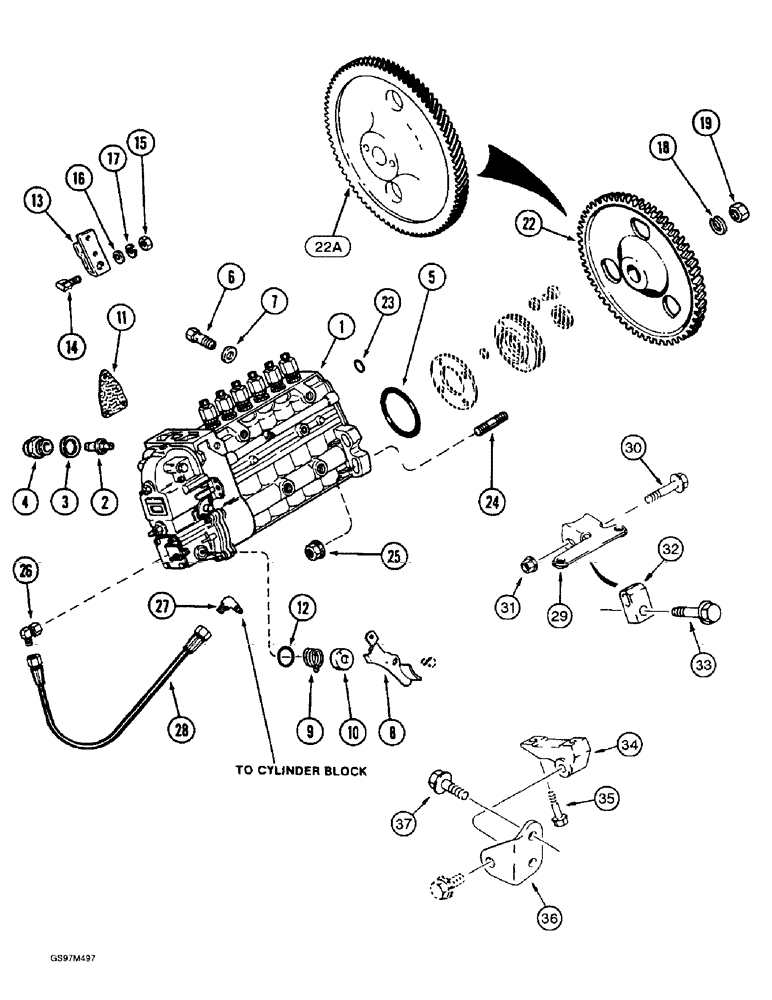

Запчасти Case IH 1660 (3-08) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE (02) - FUEL SYSTEM

1

J915687

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, no longer available, order remanufactured assembly JR915687, Includes: Ref. 2 - 19

1шт.

1

JR915687

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured, component parts do not apply to the remanufactured assembly, Includes: Ref. 2 - 19

1шт.

1

JC915687

CORE-INJECTION PUMP

Return Part Number - use this part number to return pump for credit when using a remanufactured assembly

1шт.

Pump assembly stamped CDC No. 3915687.

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

SEALING WASHER, , Plug (Replaces washer 933222R1) M18 x 24 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - sealing, if used

1шт.

5

J924605

SEAL

O-RING - fuel pump gear, if used

1шт.

6

J912886

VALVE

VALVE - overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

LEVER - pump shutoff (Replaces lever J914094)

1шт.

9

J912890

SPRING

SPRING - lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

GASKET - mounting (Replaces gasket A46322)

1шт.

12

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special, shut-off shaft

1шт.

13

1808728C1

LEVER

LEVER - throttle control

1шт.

14

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

15

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

17

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

18

A77775

LOCK WASHER

WASHER - lock (Replaces washer J912895)

1шт.

19

A41852

LOCK NUT

NUT - hex, self-locking

1шт.

22

J931378

GEAR

GEAR - fuel pump, if used (Replaces gear J912614)

1шт.

22a

J931380

GEAR

GEAR - fuel pump drive, if used

1шт.

23

J916284

O-RING

O-RING - sealing, fuel injection pump, if used (Replaces O-ring J910503)

1шт.

23

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

SEAL - oil port, if used

1шт.

24

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

25

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

NUT - hex flange, 10 mm (Replaces nut J902662)

4шт.

26

J915172

FITTING

ELBOW - 90 degree, 7/16-20 straight thread x 1/8 inch PT

1шт.

27

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

ELBOW, (Replaces elbow A77662) 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

28

J906747

HOSE,6.35mm ID x 508mm L

Lubrication

1шт.

29

J921357

HOLDER

BRACKET - injection pump, upper, if used

1шт.

30

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 45 mm, 8.8, Upper bracket to support, if used

1шт.

31

J900589

NUT

NUT - hex flange, special, 8 mm, if used

1шт.

32

J926781

SUPPORT

SUPPORT - bracket to fuel pump, if used

1шт.

33

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

BOLT - heavy hex flange, 10 - 1.5 x 40 mm, support to pump, if used

1шт.

34

J926273

SUPPORT

SUPPORT - injection pump, lower, if used

1шт.

35

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

BOLT, , Injection pump to lower support, If used Hex Flg, M8 x 90, 8.8

2шт.

36

J930841

SUPPORT

SUPPORT - injection pump to cylinder block, if used

1шт.

37

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

BOLT - heavy hex flange, 10 - 1.5 x 20 mm, support to block, if used

2шт.

38

J920622

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

BOLT, , If used, Not shown Hex Flg, M10 x 30, 10.9

1шт.
