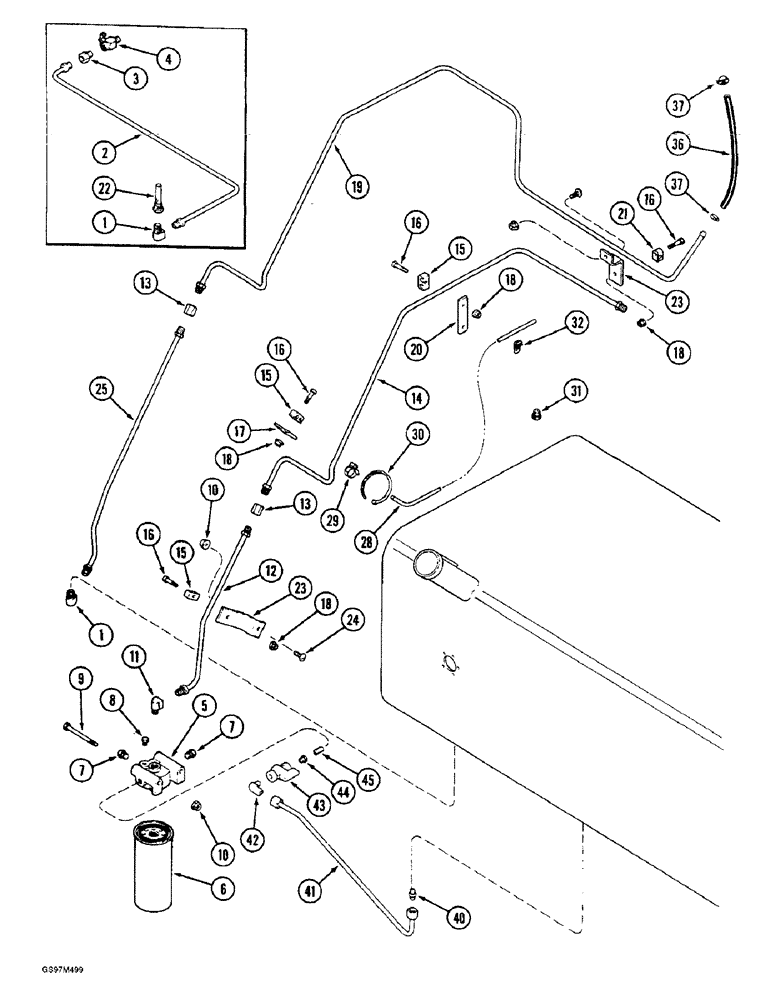

Запчасти Case IH 1660 (3-12) - FUEL LINES AND FILTER SYSTEM (02) - FUEL SYSTEM

1

144535R1

ELBOW

- 90 degree, special, 3/8 inch inverted flare

2шт.

2

1315507C1

FUEL TUBE,0.375" OD, 662.9, 292.1 mm Length

TUBE - fuel line, filter base to tank, if used

1шт.

3

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., , if used 5/8"-18 Inv Fl x 1/4" NPT

2шт.

4

217-94

SHUT-OFF VALVE

VALVE - fuel shutoff, if used

1шт.

5

612277C2

FILTER HEAD

BASE - fuel filter

1шт.

6

A184776

FUEL FILTER

FILTER - fuel

1шт.

7

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

8

217-84

PLUG,Hex Hd, 1/8"-27, Brass

- hex, 1/8 inch PT

1шт.

9

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

- hex, 5/16 NC x 4 inch, grade 2

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

2шт.

12

1315506C1

FUEL TUBE

TUBE - fuel supply, lower

1шт.

13

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

CONNECTOR, HYD., 5/8"-18 Inv Fl x 1/4" NPT

1шт.

14

1330563C1

FUEL TUBE

TUBE - fuel supply, upper

1шт.

15

183825C1

CLAMP

- fuel line tube

3шт.

17

495-81121

WASHER,.344" x 1 1/2" x .060"

- flat, 11/32 x 1-1/2 x 1/16 inch

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

19

1330562C2

FUEL TUBE

TUBE - fuel return, upper

1шт.

20

1330564C1

PLATE

SUPPORT - fuel tube

1шт.

21

183821C1

CLAMP

- single

1шт.

22

179381C1

SIEVE

STRAINER - fuel, if used

1шт.

23

196517C1

SUPPORT TUBE

SUPPORT - fuel tubes

2шт.

24

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

25

183653C2

FUEL TUBE

TUBE - fuel return, lower

1шт.

28

NSS

NOT SOLD SEPARAT

HOSE - fuel vent, 3175 mm (125 inch) long, cut from bulk hose 74813C1 below

1шт.

29

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

1шт.

30

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

31

195803C1

GROMMET

- 3/8 inch ID

1шт.

32

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type

3шт.

36

NSS

NOT SOLD SEPARAT

HOSE - fuel return, 330 mm (13 inch), cut from bulk hose 364357C1 below

1шт.

37

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

2шт.

40

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

41

1994884C1

FUEL TUBE

TUBE - fuel, filter, Serial Range: base-tank

1шт.

42

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

43

1345205C1

SHUT-OFF VALVE

VALVE - fuel shut off

1шт.

44

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 male x 1/4 inch female (Replaces bushing 444033)

1шт.

45

217-195

FITTING,1/4" - 18 Male NPTF x 1/4" - 18 Male NPTF

NIPPLE - pipe, straight, 1/4 PT x 1-3/8 inch (Replaces nipple 443978)

1шт.

74813C1

TUBE,7.09mm ID x 15240mm L

HOSE - bulk, 15240 mm (600 inch) long, sold by the foot

1шт.

364357C1

LARGE HOSE

HOSE - bulk, 15240 mm (600 inch) long, sold by the foot (Replaces hose B90924)

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
