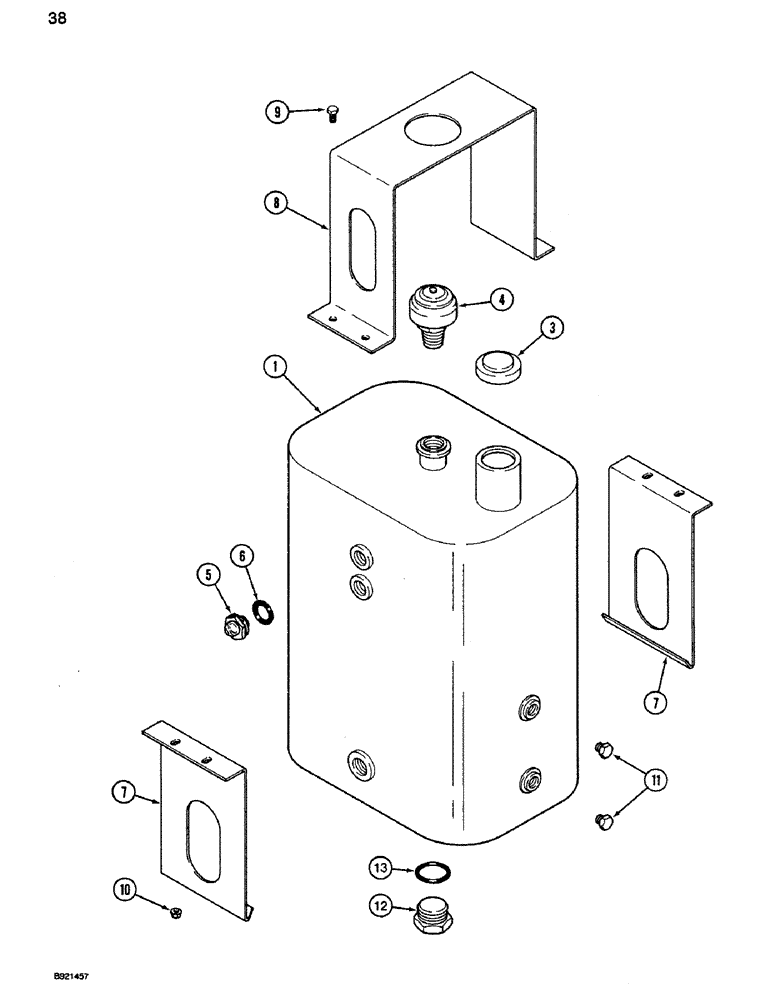

Запчасти Case IH 1660 (038) - HYDRAULIC RESERVOIR (35) - HYDRAULIC SYSTEMS

1343660C1

RESERVOIR

ASSEMBLY - hydraulic oil, 10 gallon, used with corn, grain and rice units

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - hydraulic reservoir

1шт.

3

1346309C1

PLUG

CAP - fill, non-vented

1шт.

4

923745C91

BREATHER ASSY.

BREATHER - reservoir

1шт.

244600R92

SIGHTGLASS

GAUGE ASSEMBLY - oil level sight gauge

2шт.

5

NSS

NOT SOLD SEPARAT

GUAGE - sight

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

7

1979829C1

SUPPORT

- hydraulic reservoir

2шт.

8

1347146C1

CLAMP

- reservoir

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

4шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

11

221-664

PLUG,Hex Hd, 1/2"-14

- hex, 1/2 inch PT

2шт.

12

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss (if equipped)

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.
