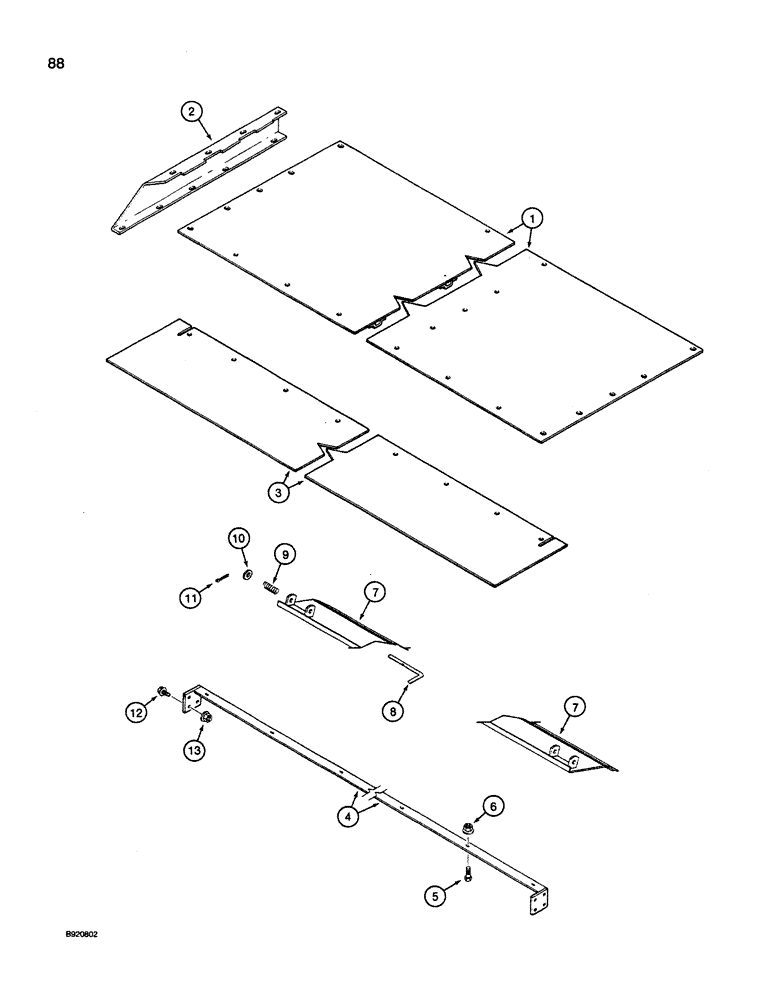

Запчасти Case IH 1660 (088) - TAILINGS AUGER TROUGH PANEL, EXTENDED LENGTH CLEANING SYSTEM (66) - THRESHING

1

1970519C1

SHEET ASSY.

PANEL - tailings return

1шт.

2

1346963C1

SUPPORT

- tailings support pan

1шт.

3

1347000C1

SEAL

- tailings pan

1шт.

4

1970532C1

SUPPORT

- tailings door

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

6шт.

7

186909C1

DOOR

TAILGATE - trough

1шт.

8

186736C1

ROD

- tailgate

2шт.

9

540815R1

SPRING

- lock pin

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

11

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

6шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

7шт.
