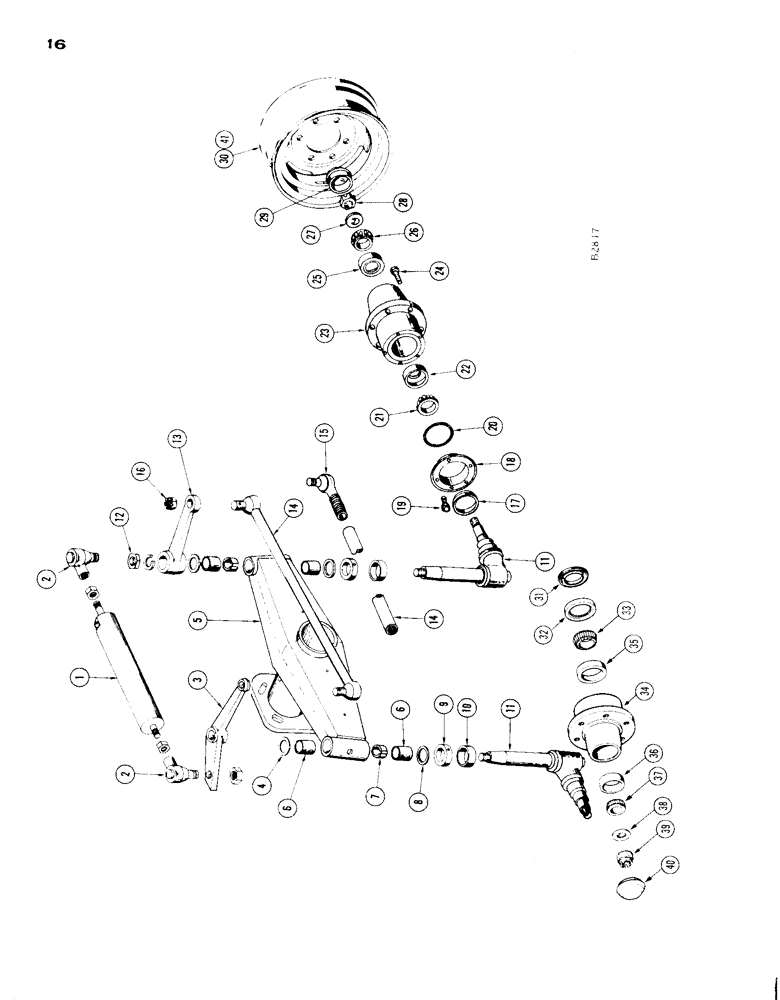

Запчасти Case IH 1665 (16) - STEERING ARMS AND AXLE, RICE SPECIAL (27) - REAR AXLE SYSTEM

1

F87848

CYLINDER - power steering

1шт.

2

F87308

SOCKET - cylinder

2шт.

3

F87420

CRANK - control arm

1шт.

4

O168CB

WASHER - shim

1шт.

V20203

PLATE

WASHER

1шт.

5

F87418

AXLE - rear (34" Rice) with Bushings

1шт.

6

F14817

BUSHING

4шт.

7

F14818

SPACER

2шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" x 45deg.

2шт.

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" x 67 - 1/2deg.

1шт.

8

F10300

WASHER

2шт.

9

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING

2шт.

10

F10299

SLEEVE - for A27602 bearing

2шт.

11

F88801

SPINDLE - R.H. and L.H.

2шт.

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

2шт.

12

25-1516

NUT,Jam, 1"-14, G5

- 1" N.F. hex. jam (for F88801)

2шт.

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

13

F3150

ARM - spindle, R.H.

1шт.

14

F12740

ROD - tie

1шт.

15

F86782

END - tie rod, R.H. thread (for F12740)

1шт.

25-1416

NUT,Jam, 1"-8, G5

- 1" - 8 N.C. jam R.H. thd.

1шт.

F86783

END - tie rod, L.H. thread (for F12740)

1шт.

129-350

NUT - 1" - 8 N.C. jam L.H. thd.

1шт.

16

25-139

SLOTTED NUT,9/16"-18, G5

NUT - 9/16" - 18 N.F. slotted (for tie rod ends)

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

17

A27139

SEAL

- oil, wheels for steering axle, Serial Range: -8373501

2шт.

18

A27140

RETAINER

- oil seal, wheels for steering axle, Serial Range: -8373501

2шт.

19

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4" x 5/8" N.C. flat hd., retainer, wheels for steering axle, Serial Range: -8373501

10шт.

20

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING, wheels for steering axle, Serial Range: -8373501

2шт.

21

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing, wheels for steering axle, Serial Range: -8373501

2шт.

22

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing, wheels for steering axle, Serial Range: -8373501

2шт.

23

A22743

HUB

- wheel, wheels for steering axle, Serial Range: -8373501

2шт.

24

A29912

BOLT

BOLT - hub, wheels for steering axle, Serial Range: -8373501

12шт.

25

A27631

CUP

- outer bearing, wheels for steering axle, Serial Range: -8373501

2шт.

26

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, wheels for steering axle, Serial Range: -8373501

2шт.

27

A26789

BEARING WASHER

WASHER - spindle, wheels for steering axle, Serial Range: -8373501

2шт.

28

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - 1-1/8" N.F. hex. slotted, spindle, wheels for steering axle, Serial Range: -8373501

2шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Wheels for steering axle 3/16" x 1 3/4", Serial Range: -8373501

2шт.

29

A29425

CAP

- hub, wheels for steering axle, Serial Range: -8373501

2шт.

30

F98007

WHEEL - disc for 10.00 x 16 6 ply single rib tire, wheels for steering axle, Serial Range: -8373501

2шт.

A57250

OIL SEAL

KIT - oil seal & retainer, wheels for steering axle, Start Serial: 8373501

2шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil retainer - inner half, wheels for steering axle, Start Serial: 8373501

1шт.

32

NSS

NOT SOLD SEPARAT

SEAL - oil retainer - outer half, wheels for steering axle, Start Serial: 8373501

1шт.

33

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing, wheels for steering axle, Start Serial: 8373501

2шт.

34

A57338

HUB ASS'Y, wheels for steering axle, Start Serial: 8373501

2шт.

35

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing, wheels for steering axle, Start Serial: 8373501

1шт.

36

A27631

CUP

- outer bearing, wheels for steering axle, Start Serial: 8373501

1шт.

37

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, wheels for steering axle, Start Serial: 8373501

2шт.

38

A26789

BEARING WASHER

WASHER - spindle, wheels for steering axle, Start Serial: 8373501

2шт.

39

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - wheel spindle, wheels for steering axle, Start Serial: 8373501

2шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Wheels for steering axle 3/16" x 1 3/4", Start Serial: 8373501

2шт.

40

A29425

CAP

- hub, wheels for steering axle, Start Serial: 8373501

2шт.

41

F88910

WHEEL - 11L-15 (4 ply flotation tire), wheels for steering axle, Start Serial: 8373501

2шт.

B18264

WHEEL BOLT

BOLT - hub, wheels for steering axle, Start Serial: 8373501

12шт.
