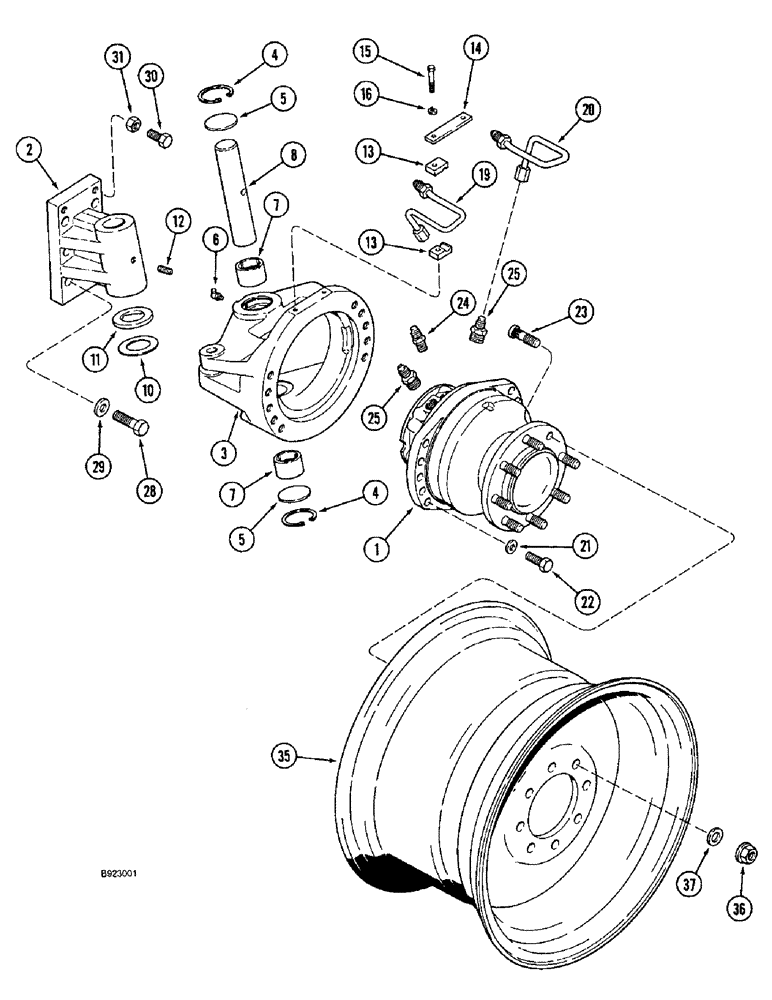

Запчасти Case IH 1666 (5-40) - WHEEL MOTOR AND KING PIN, POWER GUIDE AXLE, AXLE DRIVE WHEEL (04) - STEERING

1

1970137C2

MOTOR, HYDRAULIC

ASSEMBLY drive, wheel, corn and grain, parts list Fig. 5-50, Serial Range: -JJC0105176

2шт.

87300716R

REMAN-HYDROSTAT MOTO

1666 - CASE IH AXIAL-FLOW COMBINE - 1/93-12/94, Reman For New P/N's 1970137C2, 121436A1 & 87300716

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

1

121436A1

MOTOR, HYDRAULIC

ASSEMBLY drive, wheel, corn and grain, parts list Fig. 5-50, Start Serial: JJC0105176

2шт.

2

1970138C1

HOUSING

king pin

2шт.

3

1970136C1

HOUSING

CARRIER wheel motor, right hand, support

1шт.

3

1970354C1

FRAME

CARRIER Wheel Motor, LH, Support

1шт.

4

100-21244

SNAP RING,2.44", Int, #244

4шт.

5

41-3040

PLUG,Exp, 2 1/2"

4шт.

6

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90 degree, 1/4-28 taper x 3/4 inch

4шт.

7

1970142C1

BUSHING

pivot, bronze

4шт.

8

1970143C1

PIN,47.63mm OD x 231.78mm L

king

2шт.

10

1970381C1

THRUST WASHER

thrust, steel

2шт.

11

1970382C1

THRUST WASHER

thrust, bronze

4шт.

12

83-15020

SET SCREW,Hex Soc, 1/2"-13 x 1 1/4"

set, hex socket headless, 1/2 NC x 1-1/4 inch, cup point

2шт.

13

1970148C1

CLAMP

hydraulic, tube

8шт.

14

1970150C1

PLATE

PLATE clamp

2шт.

15

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

4шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

19

1970146C1

HYD TUBE

TUBE pressure, right hand rear, left hand front

2шт.

20

1970147C1

HYD TUBE

TUBE pressure, left hand rear, right hand front

2шт.

21

1324470C1

WASHER

flat, special, 41/64 x 1 x 3/64 inch

10шт.

22

326-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 8

10шт.

23

1970151C1

STUD

mounting, wheel

16шт.

24

1970395C1

FITTING

ADAPTER straight, special, metric thread, used with 1970137C2 motor only, Serial Range: -JJC0105176

2шт.

See Fig. 5-50 for English fittings used with 121436A1 motor

1шт.

25

1970396C1

FITTING

ADAPTER straight, special, metric thread, used with 1970137C2 motor only, Serial Range: -JJC0105176

4шт.

See Fig. 5-50 for English fittings used with 121436A1 motor

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

326-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

12шт.

29

492-11075

LOCK WASHER,3/4"

3/4"

12шт.

30

326-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

31

329-1410

JAM NUT,Jam, 5/8"-11, G8

4шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 33

4шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

1970153C1

RIM

WHEEL drive, steering, for 16.9-26 or 18.4-26 tire, axle drive wheel

2шт.

36

905654R1

NUT

hex flange, axle drive wheel

16шт.

36

1541701C1

FLANGE NUT

hex flange, special, axle drive wheel

16шт.

37

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened, axle drive wheel

16шт.
