(4-43A) - BATTERY TRAY

Запчасти Case IH 1666 (4-43A) - BATTERY TRAY (06) - ELECTRICAL

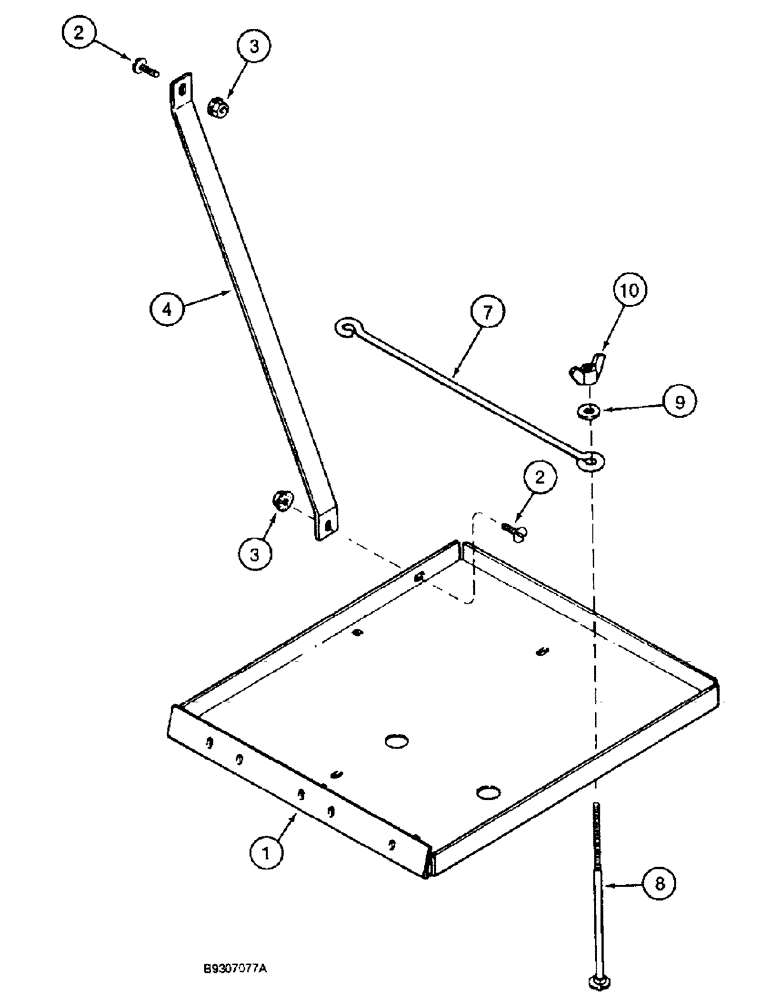

Схема запчастей Case IH 1666 - (4-43A) - BATTERY TRAY (06) - ELECTRICAL
4
2
3
10
1
8
7
3
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

194267C6

TRAY

battery

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

slotted truss head, 5/16 NC x 3/4 inch

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

4

194266C1

SUPPORT

battery tray

1шт.

7

188116C1

CLAMP

battery hold down

1шт.

8

411-5152

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT carriage, 5/16 NC x 9-1/2 inch, grade 2

2шт.

9

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

10

129-419

WING NUT,5/16"-18

5/16 inch NC, replaces 523193R1

2шт.
