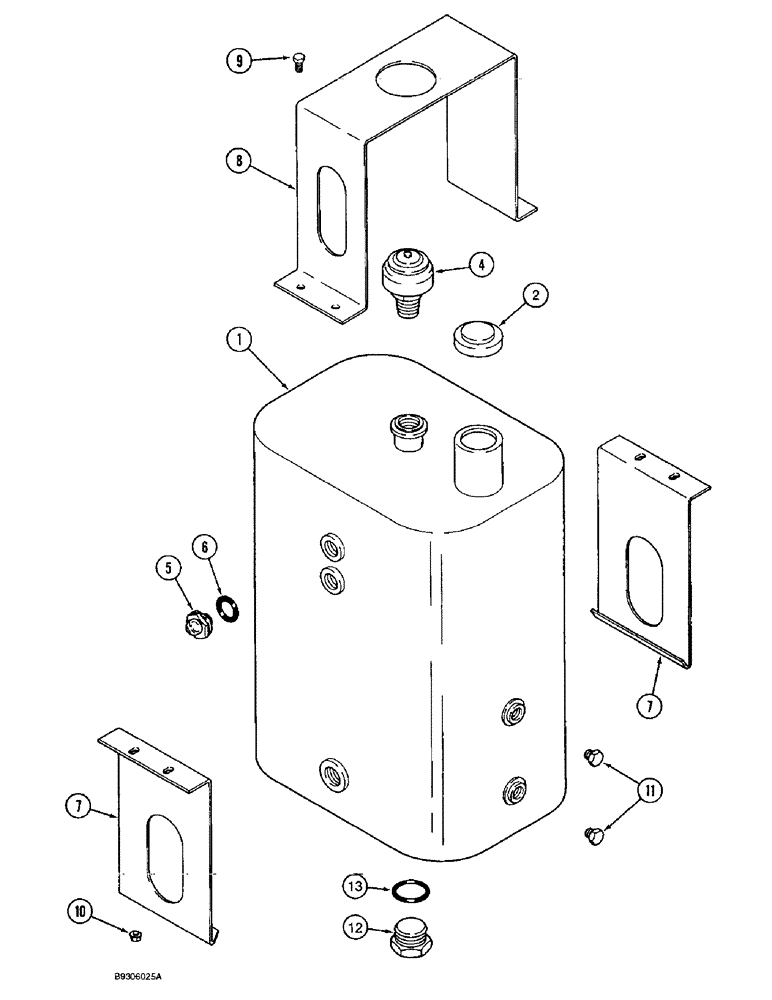

Запчасти Case IH 1666 (8-02[2]) - HYDRAULIC RESERVOIR, P.I.N. JJC0105804 AND AFTER (07) - HYDRAULICS

1343660C2

TANK, HYDRAULIC OIL

RESERVOIR ASSY., 10 gallon, Includes: Ref. 1 thru 6

1шт.

1

NSS

NOT SOLD SEPARAT

TANK, hydraulic reservoir and after

1шт.

2

1272941C2

BREATHER

reservoir, non vented, Includes: Ref. 3

1шт.

3

104407A1

SCREEN

filter, fill cap, not shown

1шт.

4

923745C91

BREATHER ASSY.

reservoir

1шт.

5

132865A1

SIGHTGLASS

GAUGE, oil level

2шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

7

1979829C1

SUPPORT

hydraulic reservoir

2шт.

8

1347146C1

CLAMP

reservoir

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.
