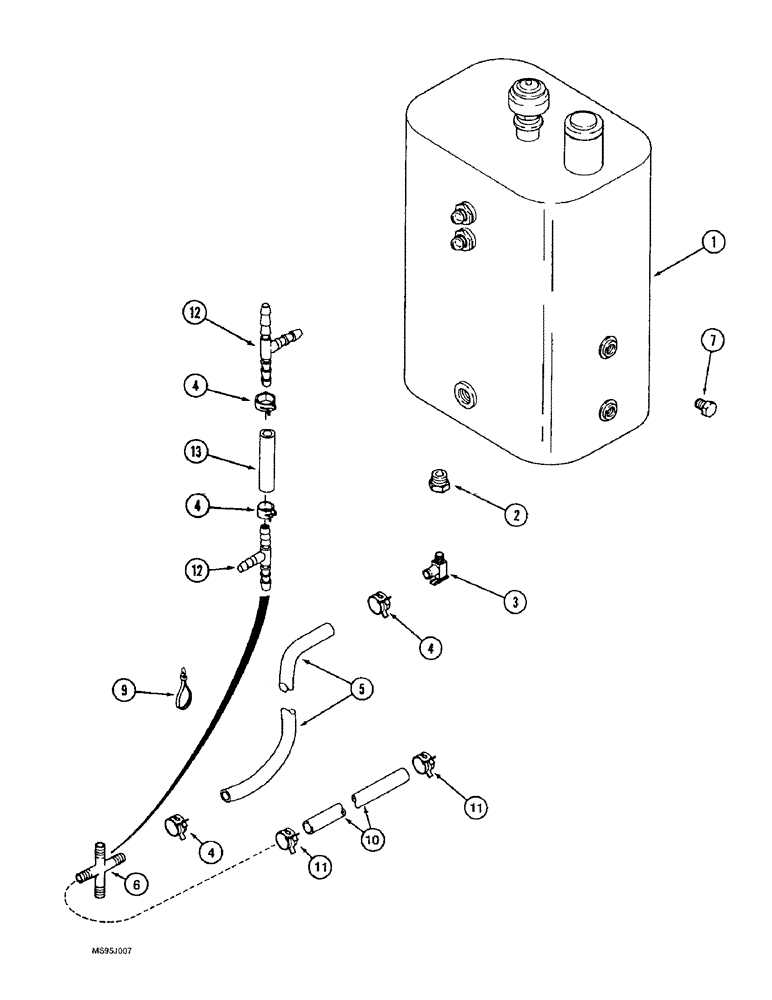

Запчасти Case IH 1666 (8-04) - HYDRAULIC RESERVOIR DRAIN (07) - HYDRAULICS

1

1343660C1

RESERVOIR

ASSY., hydraulic oil, 10 gallon, see Fig. 8-02

1шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

3

301803R1

SHUT-OFF VALVE

reservoir drain

1шт.

4

1954736C1

HOSE CLAMP,#24

Adjustable

2шт.

5

1347032C2

HOSE,15.75 mm ID x 1350.00 mm

reservoir oil drain, 53 - 1/8 in. (1350 mm) long, cut from 1977295CX bulk hose, see below

1шт.

6

1977169C1

TEE

oil drain, no longer available, order 2 of Ref.12 1977169C1 tee, 1 of Ref. 13 1347070C2 hose, 2 of Ref. 4 1954736C1 clamp

1шт.

7

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

8

702093C1

CABLE TIE

CABLE STRAP 3 in. maximum, nylon, retaining

2шт.

9

119254A1

CROSS

oil drain

1шт.

10

1977294C3

HOSE

oil drain, 22 - 7/8 in. (580 mm) long, cut from 1977295CX bulk hose PTO, see below

1шт.

11

1954736C1

HOSE CLAMP,#24

Adjustable, Replaced 112700R1 hose

2шт.

12

1977169C1

TEE

oil drain

2шт.

13

1347070C2

HOSE,15.75 mm ID x 75.00 mm

3 in. (75 mm) long, cut from 1977295CX bulk hose, see below

1шт.

1977295CX

LARGE HOSE

HOSE,LARGE bulk, 5/8 (16) x 7/8 (22) x 600 in. (15240 mm) long, used for Ref. 5, 10 and 13

1шт.
