(8-10) - HYDRAULIC CHARGE PUMP FILTER, CHARGE FILTER MOUNTING

Запчасти Case IH 1666 (8-10) - HYDRAULIC CHARGE PUMP FILTER, CHARGE FILTER MOUNTING (07) - HYDRAULICS

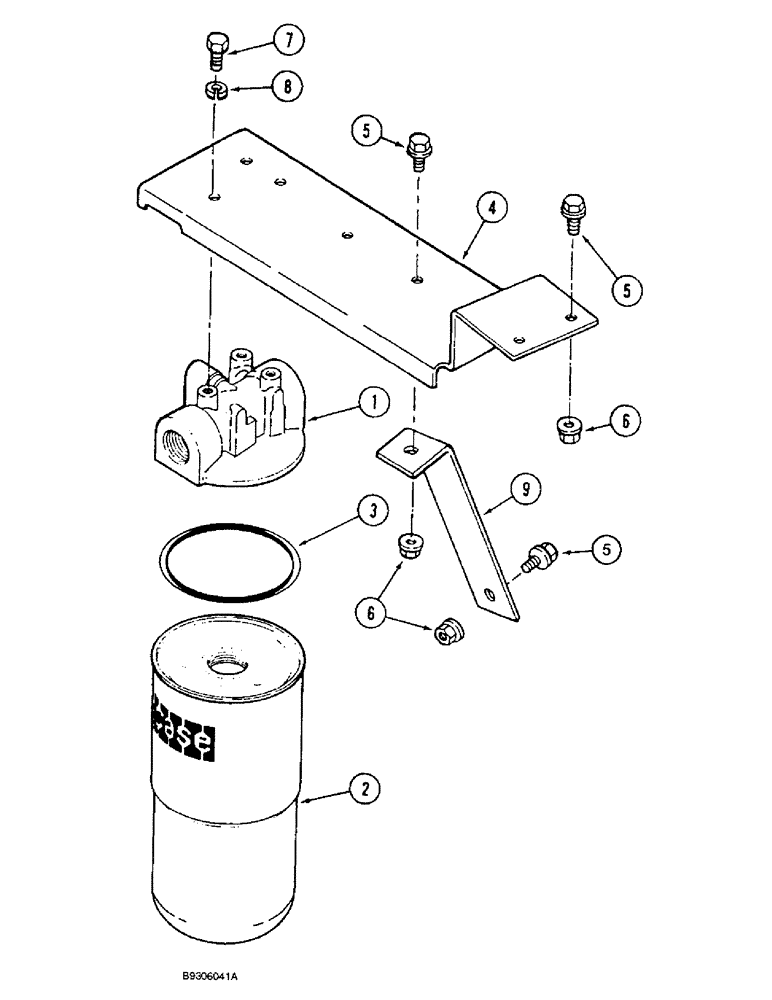

Схема запчастей Case IH 1666 - (8-10) - HYDRAULIC CHARGE PUMP FILTER, CHARGE FILTER MOUNTING (07) - HYDRAULICS
4
6
7
5
6
5
5
1
8
2
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87784C91

FILTER ASSY

PUMP charge, used with corn, grain and rice units, charge pump filter, Includes: Ref. 1, 2, and 3

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, charge pump filter

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT, charge pump filter

1шт.

Part of filter element kit 1329214C1

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET filter element, charge pump filter

1шт.

Part of filter element kit 1329214C1

1шт.

4

1347113C2

SUPPORT

BRACKET mounting, charge filter mounting

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Charge filter mounting

4шт.

6

231-5146

FLANGE NUT,3/8"-16

Charge filter mounting

4шт.

7

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Charge filter mounting

3шт.

8

492-11038

LOCK WASHER,3/8"

Charge filter mounting

2шт.

9

1347116C2

SUPPORT

BRACKET, charge filter, charge filter mounting

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT filter, Includes Ref. 2 and 3, charge filter mounting

1шт.
