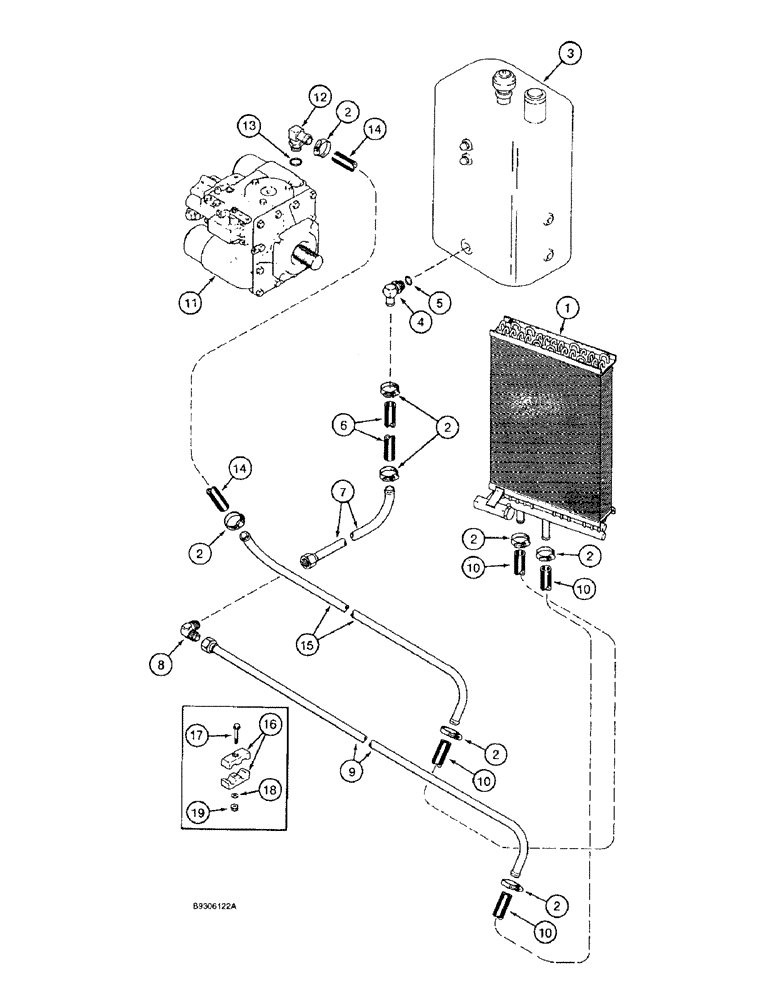

Запчасти Case IH 1666 (8-12) - OIL COOLER SYSTEM, CORN AND GRAIN COMBINE, WITHOUT POWER GUIDE AXLE (07) - HYDRAULICS

1

111078A3

COOLER

ASSY., hydraulic oil, see Fig. 8-20

1шт.

2

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

Adjustable

8шт.

3

1343660C1

RESERVOIR

ASSY., hydraulic oil, 10 gallon, See Fig. 8-02

1шт.

4

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

90 deg., 1 stem end x 1-5/16-12 in. adj. O-ring boss, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

1979763C2

HOSE

cooler to reservoir, 15-1/2 in. (394 mm) long, cut from 364361C1 bulk hose, see below

1шт.

7

1979731C1

TUBE

cooler return

1шт.

8

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

ELBOW, 90 deg., 1-5/16-12 in. flare x flare

1шт.

9

1324941C1

HYD TUBE,1" OD, 1790.5, 127 mm Length

TUBE, oil cooler return

1шт.

10

121298A1

HYDRAULIC HOSE,25.40 mm ID x 890.00 mm, SAE 16

Cut from 364361C1 bulk hose at cooler, Replaces (1040 mm) length, See below

2шт.

11

1343716C2

PUMP, HYDROSTATIC

HYDROSTATIC PUMP ASSY., see Figs., Serial Range: 6-16-6-25A

1шт.

87637528R

REMAN-HYDROSTAT PUMP

1666 (1/93-12/94), Reman for New P/N 1343716C2

1шт.

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

12

178995C1

ELBOW

90 deg., special 1 in. barb end x 1-1/16 in. PT, Includes: Ref. 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

1979762C2

HOSE

cooler to pump, 27-1/4 in. (610 mm) long, cut from 364361C1 bulk hose, see below

1шт.

15

1979658C1

HYD TUBE,1" OD

oil cooler supply

1шт.

16

1347071C1

CLAMP

CLAMP, 1 in. O.D.

2шт.

17

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

If used

2шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

364361C1

HOSE

bulk, 1 (25) ID x 600 in. (15240 mm) long, used for Ref 6, 10 and 14

1шт.
