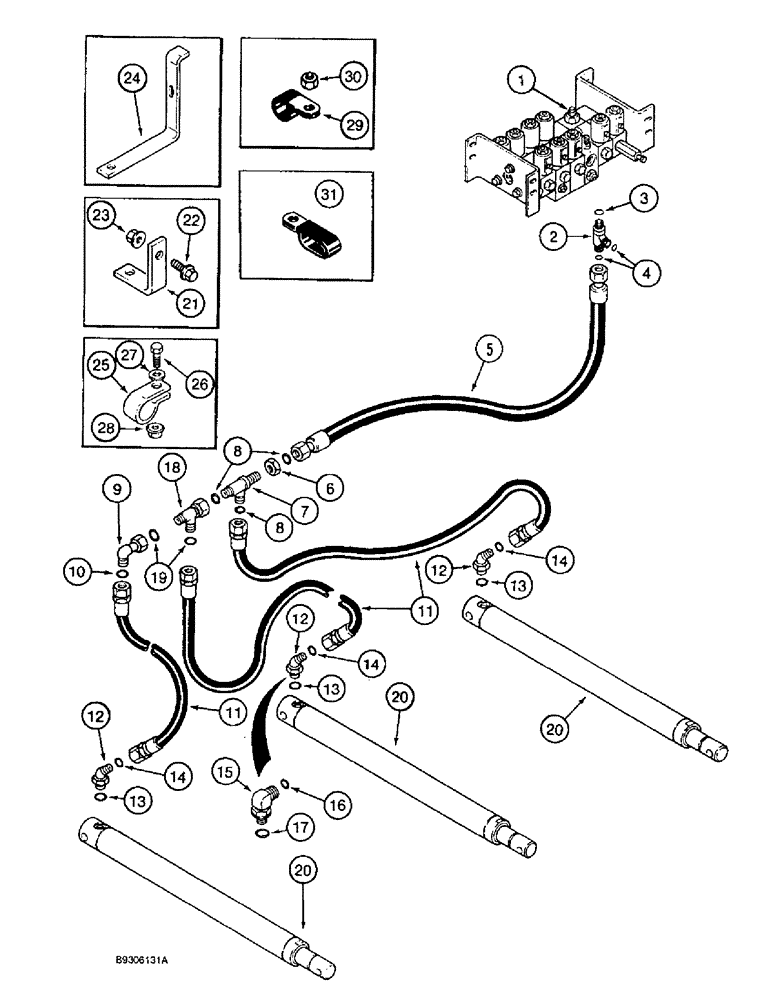

Запчасти Case IH 1666 (8-30) - HEADER LIFT CYLINDER SYSTEM, WITH THIRD LIFT CYLINDER (07) - HYDRAULICS

1

1542679C2

VALVE

ASSY., header lift parts

1шт.

2

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

13/16-16 face branch x face x 3/4-16 in. adj. O-ring, Includes: Ref. 3 and 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

1989666C1

HOSE

header cylinder supply, 96-7/8 in. (2460 mm) long

1шт.

6

201-903

TUBE NUT,Blkhd, 13/16"-16

1шт.

7

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

13/16-16 in. face seal branch x face seal x bulkhead face seal, Includes: Ref. 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

9

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

ELBOW, 90 deg., 13/16-16 in. face seal x swivel face seal, Includes: Ref. 10

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

1989667C1

HOSE

header lift system, 36 in. (915 mm) long

3шт.

12

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 13 and 14

3шт.

Two 45 deg. elbows used at outer cylinders on 47-1/2 in. feeder without rock trap. The 47-1/2 feeder with rock trap and all 54 in. fedders use three 45 deg. elbows.

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

If used, Incl. Ref. 16 and 17

1шт.

Used at third, center, cylinder on 47-1/2 in. feeder without rock trap. All other models use Ref. 12 elbow at this location

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

13/16-16 in. face branch x face x swivel face, Includes: Ref. 19

1шт.

19

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

20

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY., 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke, header lift, parts list Fig. 8-34

2шт.

20

127779C94R

REMAN-HYD CYLINDER

1666 CASE IH AXIAL-FLOW COMBINE, ASSY., 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke, header lift (1/93-12/94)

2шт.

20

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

21

1989343C1

ANGLE BAR

tube support

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

1989653C1

SUPPORT

header cylinder fitting

1шт.

25

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

Hose, Closed coated, Header lift

1шт.

26

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

27

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

29

299269C91

CLAMP

retaining, single, header lift and steering hose

1шт.

30

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 in. NC

1шт.

31

470375C1

CLAMP,1", Insul, 3/8" Bolt

double header lift and steering hoses

2шт.
