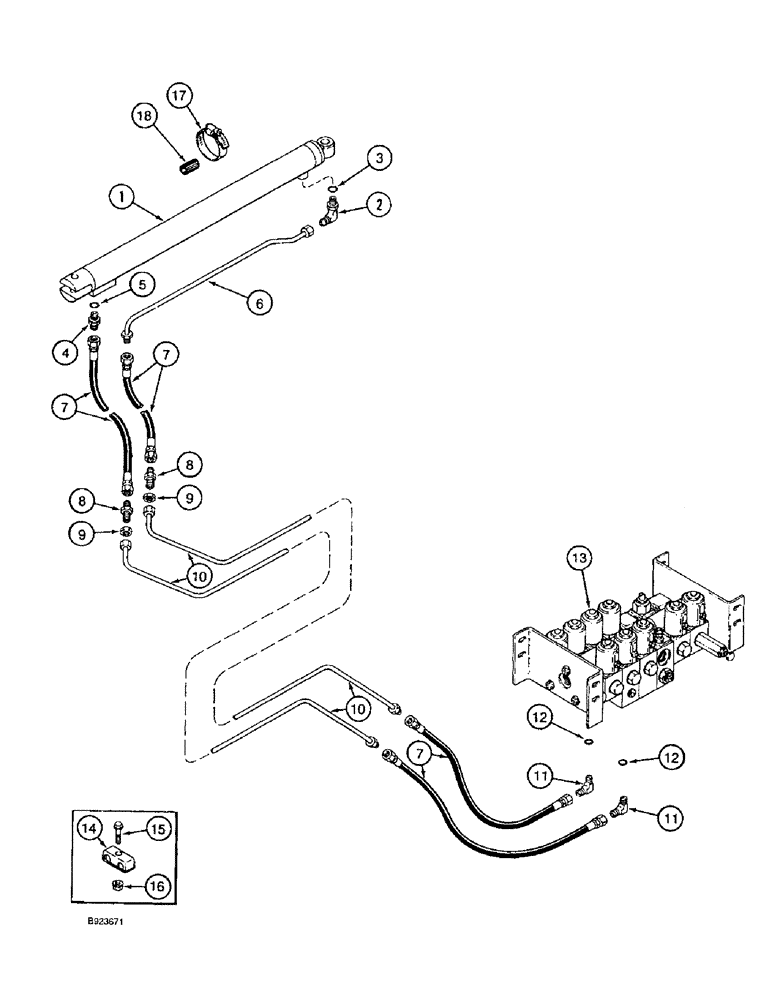

Запчасти Case IH 1666 (8-74) - UNLOADER TUBE SWING CYLINDER SYSTEM (07) - HYDRAULICS

1

1282488C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 508.2mm Stroke

unloader swing, 1-12 (38) ID x 20 in. (508 mm) stroke, see Fig. 8-76

1шт.

1282488C92R

REMAN-HYD CYLINDER

1666 (1/93-12/94)

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 deg., 7/16-20 in. flare x adj. O-ring boss, Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER, Incl. Ref. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

1317623C1

HYD TUBE,0.25" OD, 480, 45 mm Length

TUBE, unloader swing cylinder

1шт.

7

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

Unloader Swing

4шт.

8

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER straight, 7/16-20 in. flare x bulkhead flare

2шт.

9

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

hex, lock, bulkhead, 7/16 in. NF

2шт.

10

196751C1

UNLOADING TUBE

TUBE, unloader swing cylinder

2шт.

11

218-5320

ELBOW,90 Degree, 7/16"-20, 37 Degree x 3/4"-16, O-Ring

90 deg., 7/16-20 flare x 3/4-16 in. adj. O-ring boss, Includes: Ref. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

1267035C94

VALVE

ASSY., double piloted, unloader swing, see Fig. 8-42, no longer available, order 124857A1 valve, Serial Range: -JJC105314

1шт.

13

124857A1

VALVE

ASSY., double piloted, unloader swing, see Fig. 8-43A, Start Serial: JJC105314

1шт.

14

183824C1

CLAMP

unloader swing tubes

2шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

Adjustable

1шт.

18

163489C1

STRIP

INSULATOR rubber, 1/4 ID x 1-13/64 in. long

1шт.
