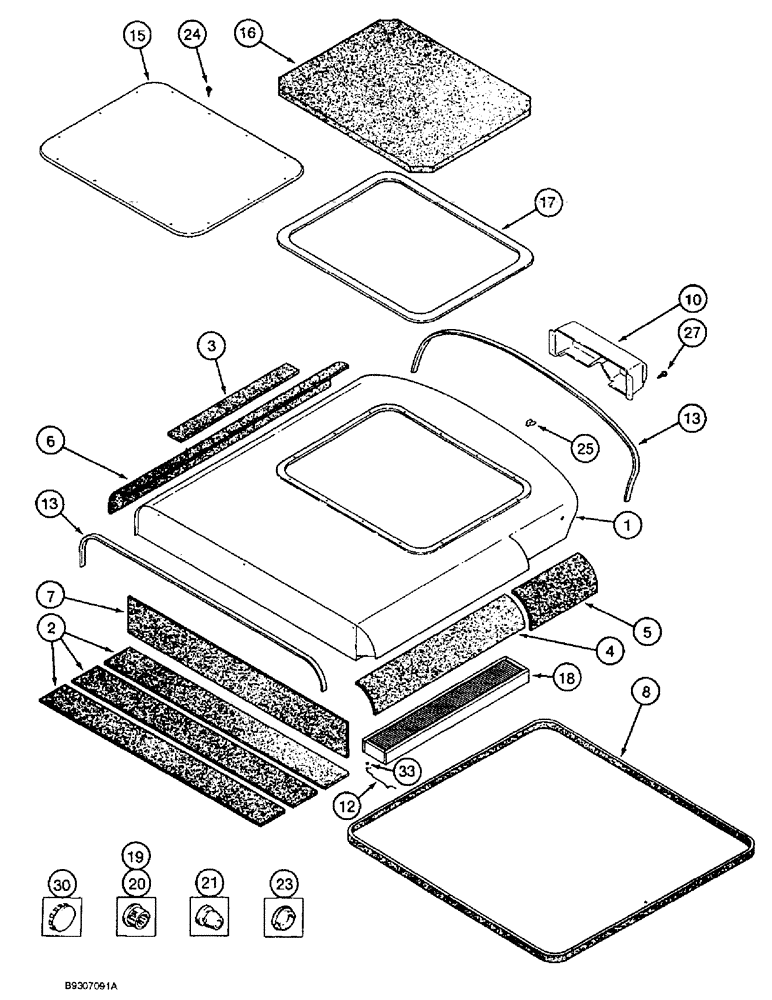

Запчасти Case IH 1666 (9G-14) - CAB, ROOF (10) - CAB & AIR CONDITIONING

1

1344179C1

ROOF

ASSEMBLY, cab, Includes: Ref. 2 thru 7

1шт.

2

1276339C2

INSULATOR

PANEL, top 1 inch (305 mm) long, cut from 1327515C1 bulk hose

3шт.

3

1281980C2

INSULATOR

PANEL, left hand, top, 12 inch (305 mm) long, cut from 1327515C1 bulk insulation

1шт.

4

1276337C2

RUBBER INSULATOR

SEAL, 10-1/2 (266) x 38-1/8 (970) x 1/2 inch (13 mm) thick, cut from 1327515C2 bulk, right hand rear

1шт.

5

1276336C2

INSULATOR

PANEL, right hand, front, 12 inch (305 mm) long, cut from 1327515C1 bulk insulation

1шт.

6

1276338C2

INSULATOR

PANEL, left hand side, 12 inch (305 mm) cut from 1327515C bulk insulation

1шт.

7

1281740C2

INSULATOR

PANEL, rear, 60 inch (1524 mm) long, cut from 1327515C1 bulk insulation

1шт.

8

180637C2

SEAL

TRIM edge, 220 inch (5588 mm) long, cut from 182747C1 bulk roof seal

1шт.

10

1990977C1

COVER ASSY

windshield wiper motor, Includes Decal

1шт.

REF

INSTRUCTION

DECAL axial flow, parts list Fig. 9H-28 Ref. 25

1шт.

12

117727C2

ROD

filter latch

3шт.

13

1281996C1

SEAL

TRIM edge, 72 inch (1829 mm) long, cut from 1327666C1 bulk

2шт.

15

143006C3

PANEL

roof access cover

1шт.

16

1276340C2

INSULATOR

COVER, access

1шт.

17

83872C2

SEAL

access cover

1шт.

18

REF

INSTRUCTION

FILTER cab, parts list Fig. 9G-12, Ref. 12

1шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

2шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

light harness, left, 1 x 1-3/8 inch

2шт.

23

353-252

PLUG,1"

button, 1 inch

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

self tapping, hex washer head, 1/4 NC x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

self tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

4шт.

30

179093

HOLE PLUG BUTTON,9/32"

6шт.

30

353-408

PLUG,Dome, .750" hole, Nylon

button, 3/4 inch

2шт.

33

118084C1

SEALING WASHER

rubber

3шт.

1327515C2

INSULATOR

SEAL bulk sheet, 54 (1372) wide x 120 (3048) long x 1/2 inch (13 mm) thick

1шт.

182747C1

DOOR SEAL

TRIM edge, bulk 600 inch (15240) mm) long

1шт.

1327666C1

SEAL

TRIM edge, bulk 600 inch (15240 mm) long

1шт.
