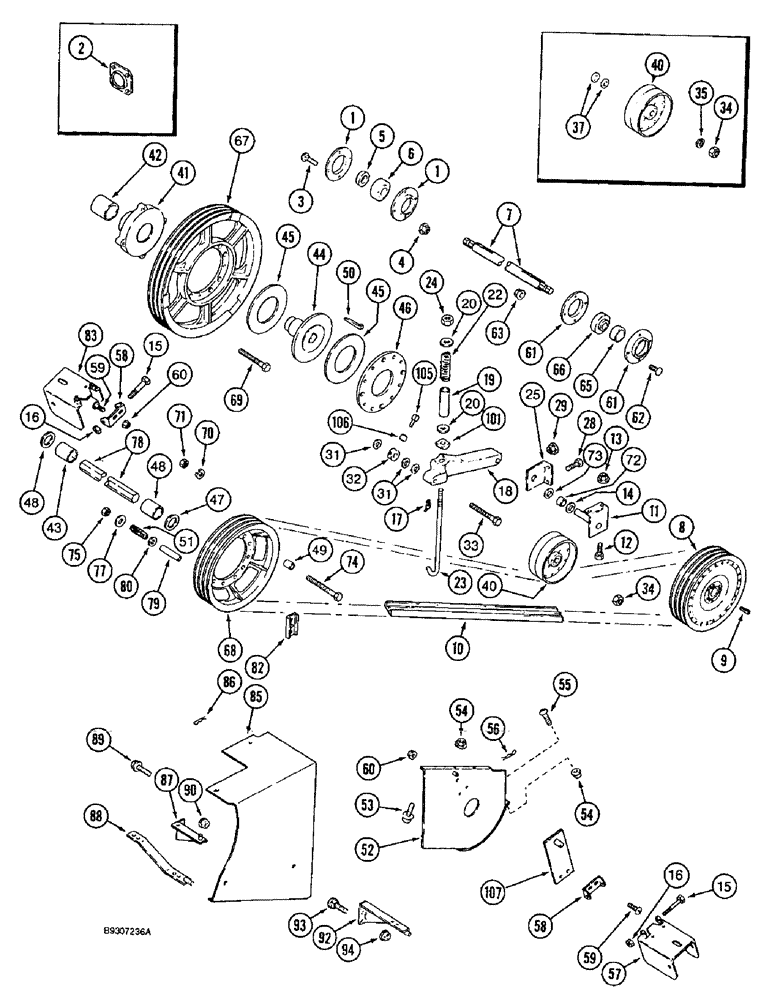

1
663562R1
FLANGE
bearing, left hand, round design
2шт.
2
1307583C1
FLANGED BEARING
bearing, left hand, square design
2шт.
3
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
carriage, 1/2 NC x 1 in.
4шт.
4
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
4шт.
5
455112R11
COLLAR
locking, bearing
1шт.
6
455111R91
BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm
ball, jackshaft, left hand
1шт.
7
1319482C2
SHAFT
cross, jackshaft
1шт.
8
1321645C1
PULLEY
driven, feeder, 13-1/2 in. O.D.
1шт.
9
Q1376
KEY
square tapered, 3/8 x 2-1/4 in.
1шт.
10
1313095C2
V-BELT,131.69" L
Drive, 47 Inch Feeder
1шт.
10
1313097C3
V-BELT,22.33 mm W x 3706.69 mm L
Drive
1шт.
11
182322C1
SUPPORT
pivot, idler
1шт.
12
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 NC x 3/4 in.
2шт.
13
231-5146
FLANGE NUT,3/8"-16
2шт.
14
495-81069
WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk
flat, 1-1/32 x 1-1/2 x 1/16 in.
1шт.
15
413-472
BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5
BOLT hex, 1/4 NC x 4-1/2 in.
2шт.
16
231-4144
NUT,1/4"-20, GB
2шт.
17
219-90
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
grease, 45 deg., 1/4-28 special taper x 13/16 in.
1шт.
18
1321982C1
ARM
tightener
1шт.
19
176581C1
SPACER
spring, adjusting bolt
1шт.
20
495-71053
WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk
flat, 17/32 x 1-3/4 x 3/32 in.
2шт.
22
PO3A
SPRING
tightener bolt
1шт.
23
197410C1
BOLT,1/2" - 13 x 17 1/2", Carbon Steel
idler draw
1шт.
24
425-108
NUT,1/2" - 13, Gr 5
1шт.
25
182323C1
SUPPORT
idler
1шт.
28
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 NC x 3/4 in.
2шт.
29
231-5146
FLANGE NUT,3/8"-16
2шт.
31
169256C2
WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk
flat, special, 41/64 x 1-1/4 x 1/8 in.
1шт.
32
1345410C1
BUSHING,16.7mm ID x 35mm OD x 15mm L
pulley, 17 x 35 x 15 mm
1шт.
33
135260A1
BOLT,Hex W/ Timing Mark, 5/8" - 11 x 5", Gr 5
BOLT hex, special, 5/8 NC x 5 in.
1шт.
33
413-1096
BOLT,Hex, 5/8" - 11 x 6", Gr 5
hex, 5/8 NC x 6 in., if used
1шт.
34
425-1010
NUT,5/8"-11, G5
If used
1шт.
34
232-41110
NUT,5/8"-11, GC
1шт.
35
492-11062
BEARING WASHER,5/8"
1шт.
37
396-21066
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
1шт.
40
176579C1
IDLER
drive tightener, 8 in. O.D.
1шт.
41
1305220C91
HUB ASSY.
clutch outer, Includes: Ref. 42
1шт.
42
610435C1
BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L
hub
1шт.
43
1305393C1
SPACER
feeder pivot shaft, left hand, 2-35/64 in. long
1шт.
44
1305154C2
HUB
slip clutch
1шт.
45
181579C1
DISC
DISC friction, clutch
2шт.
46
185955C1
PLATE
friction
1шт.
47
584608R1
SPACER
clutch, 3-3/8 in. long
1шт.
48
495-81093
WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk
flat, 1-25/32 x 2-1/2 x 7/64 in.
1шт.
49
1305375C1
SPACER
drive lug
4шт.
50
Q3959
COTTER PIN,Gib, 3/8" Sq x 4 1/2"
2шт.
51
1305692C2
SPRING
slip clutch, 10 with rock trap
8шт.
52
1345355C1
GUARD ASSY.
SHIELD support, front
1шт.
53
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
54
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
55
135270
SERRATED SCREW,5/16" - 18 x 3/4"
slotted truss head, 5/16 NC x 3/4 in.
2шт.
56
480523R1
HAIR PIN COTTER
1шт.
57
1345358C1
GUARD
SHIELD, jackshaft, end
1шт.
58
1345199C1
SUPPORT
HINGE shield, feeder jackshaft
2шт.
59
477-73812
SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"
slotted truss head, special, 3/8 NC x 3/4 in.
4шт.
60
231-5146
FLANGE NUT,3/8"-16
4шт.
61
619333R1
FLANGED BEARING
bearing, right hand
2шт.
62
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
carriage, 1/2 NC x 1 in.
4шт.
63
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
4шт.
65
664598R11
COLLAR
lock, bearing
1шт.
66
664597R91
BALL BEARING,1.5005" ID x 90 mm OD x 1.625"
ball jackshaft, right hand
1шт.
67
1305297C1
PULLEY
driven, 22-9/16 in. O.D.
1шт.
68
1305288C1
PULLEY
drive, feeder, 16-11/16 in. O.D.
1шт.
69
326-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8
4шт.
70
492-11038
LOCK WASHER,3/8"
4шт.
71
329-106
NUT,3/8"-16, G8
4шт.
72
M74461
SPACER,26.6mm ID x 33.4mm OD x 19mm L
Support pin
1шт.
73
495-81069
WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk
flat, 1-1/32 x 1-1/2 x 1/16 in., used as a shim
1шт.
74
1315319C1
BOLT,Hex, 3/8" - 16 x 6", Gr 8
hex, special, 3/8 x 6 in., grade 8
8шт.
75
231-4116
NUT,3/8"-16, GB
hex, self locking, 3/8 in. NC
8шт.
77
495-81143
WASHER,13/32" x 1 1/2" x .120"
16шт.
78
1320160C3
SHAFT
conveyor, feeder, see Fig. 9A-34 for cotter pins
1шт.
79
1305370C3
SPACER
spring clutch
8шт.
80
495-81129
WASHER,13/32" x 3/4" x .120"
flat, 13/32 x 3/4 x 7/64 in.
8шт.
81
495-81093
WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk
flat, 1-25/32 x 2-1/2 x 7/64 in., not shown
5шт.
82
1315316C1
SUPPORT
spring, slip clutch, with rock trap
2шт.
83
1345357C1
GUARD
SHIELD jackshaft end, left hand
1шт.
85
1321841C1
GUARD
SHIELD jackshaft drive, 47 in. feeder
1шт.
85
1321966C1
SUPPORT
SHIELD jackshaft drive, 54-1/2 in. feeder
1шт.
86
480523R1
HAIR PIN COTTER
4шт.
87
1327779C1
SUPPORT
shield, upper rear
1шт.
88
1321851C1
SUPPORT
shield, lower rear
1шт.
89
434-612
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
3/8 NC x 3/4 in.
3шт.
90
231-5146
FLANGE NUT,3/8"-16
3шт.
92
1321853C1
SUPPORT
SHIELD lower front
1шт.
93
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
2шт.
94
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
101
194652C1
PIVOT
rod
1шт.
105
485-13116
SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt
2шт.
106
425-105
NUT,5/16"-18, G5
2шт.
107
1957636C1
HOLDER
BRACKET shield, retainer
1шт.
