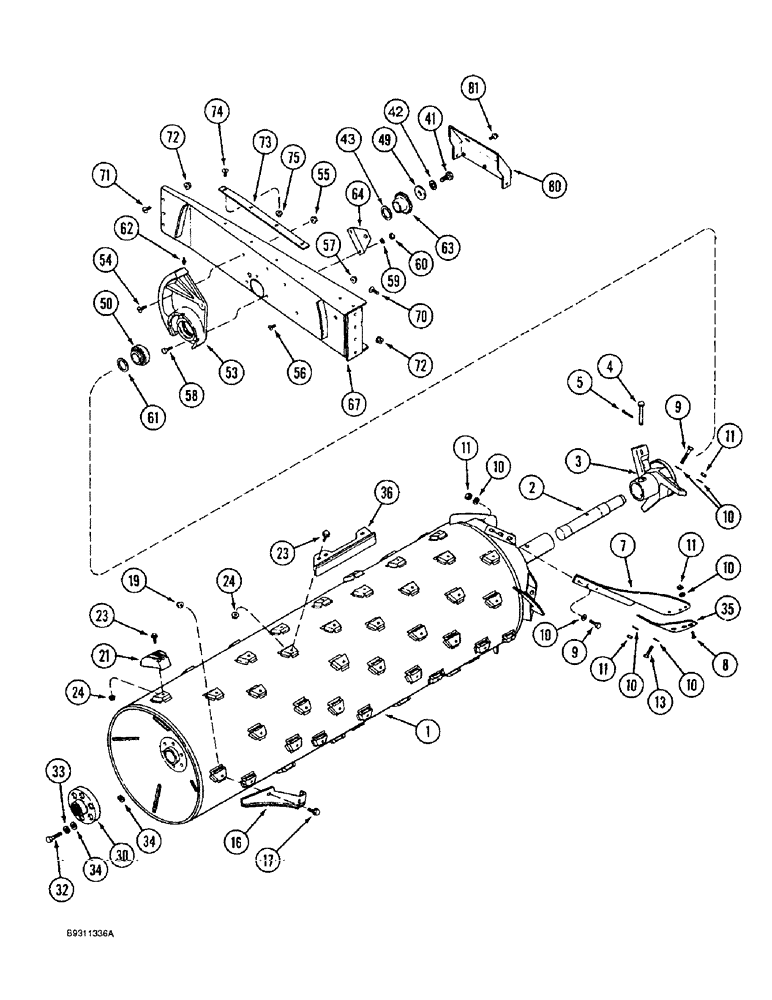

Запчасти Case IH 1666 (9B-16) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

1

1347121C2

ROTOR

ASSY., threshing, without spiked bars

1шт.

1

1317405C91

ROTOR

ASSY., threshing, includes 21 rasp bars with spikes and 33 rasp bars without spikes, rice and edible bean, no longer available, order 1317405C92, Serial Range: -JJC0106005

1шт.

1

1317405C92

ROTOR

ASSY., threshing, rice, with spiked bars, includes 54 rasp bars with spikes, Start Serial: JJC0106005

1шт.

1

104347A1

ROTOR

ASSY., threshing, without spiked bars, corn and edible bean, Includes: Ref. 2 thru 43

1шт.

2

191545C2

SHAFT

rotor, front

1шт.

3

191546C2

IMPELLER

rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

3/4 x 5-1/2 in.

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

KIT rotor blade, set of 3, replaces 1957446C1 kit and 1957446C2, Includes: Ref. 7 thru 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE rotor

3шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT hex socket, 1/2 Nc x 1-1/2 in.

9шт.

9

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

Replaces 426-828

9шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, hardened, 17/32 x 1-1/4 x 3/16 in.

1шт.

11

199528A1

NUT

hex, self locking, 1/2 in. NC, grade 8, replaces 232-4118

24шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

Replaces 426-848

3шт.

16

1317690C1

ANGLE

kicker

3шт.

16

1968967C1

KIT

ANGLE kicker, chrome

3шт.

17

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

BOLT hex flange, 1/2 NC x 1-1/4 in., grade 8, replaces 409-720

6шт.

19

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 in. NC, grade 8

6шт.

21

1309175C1

BAR

rasp, with spike, rice, Serial Range: -JJC0106005

21шт.

21

1309336C1

BAR

rasp, without spike, rice, Serial Range: -JJC0106005

33шт.

21

1309175C1

BAR

rasp, with spike, rice, Start Serial: JJC0106005

21шт.

21

1309336C1

BAR

rasp, without spike, edible bean

48шт.

21

1968743C1

BAR

rasp, without spike, chrome, edible bean

48шт.

21

1309336C1

BAR

rasp, without spike, corn and edible bean

42шт.

21

111709A1

RASP BAR

rasp, without spike, corn

42шт.

21

1968743C1

BAR

rasp, without spike, chrome, 24 in. special rotor

33шт.

21

1968970C1

BAR

rasp, with spike, chrome

21шт.

23

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

BOLT hex flange, 1/2 NC x 1-1/4 in., grade 8, replaces 409-7820

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

hex, self locking, special, 1/2 in. NC, grade 8

1шт.

30

1345307C1

COUPLING

rotor drive

1шт.

32

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

Replaces 426-848

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

flat, hardened, special, 17/32 x 1-1/2 x 1/8 in.

12шт.

35

1309185C2

BAR

wear, chrome

3шт.

36

1318976C1

BAR

separator, not chromed

6шт.

36

1968969C2

BAR

separator, chrome

3шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

BOLT hex, 3/4 NC x 1-3/4 in., grade 2

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

flat, 2-1/32 x 2-3/4 x 1/16 in.

1шт.

49

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

flat, rotor front shaft, special, 25/32 x 2-1/2 x 1/4 in.

1шт.

50

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

rotor front

1шт.

53

1309076C1

BEARING HOUSING

rotor front bearing

1шт.

54

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

slotted truss head, special, 3/8 NC x 1-1/4 in.

2шт.

55

231-5146

FLANGE NUT,3/8"-16

2шт.

56

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 in.

2шт.

57

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

59

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

60

425-108

NUT,1/2" - 13, Gr 5

3шт.

61

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

flat, special, front bearing housing

1шт.

62

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

63

1979965C1

ROTOR

ROTOR multi position tachometer

1шт.

64

1301239C1

BRACKET

rotor tachometer

1шт.

67

193163C5

SUPPORT

front bearing

1шт.

70

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

BOLT hex serrated flange, 1/2 NC x 1 in.

4шт.

71

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

72

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

73

1308967C1

BAR

front door hold down

1шт.

74

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 in.

4шт.

75

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

80

182845C4

SHIELD

sensor

1шт.

81

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.
