(9E-02) - GRAIN TANK AND UPPER SUPPORTS

Запчасти Case IH 1666 (9E-02) - GRAIN TANK AND UPPER SUPPORTS (17) - GRAIN TANK & UNLOADER

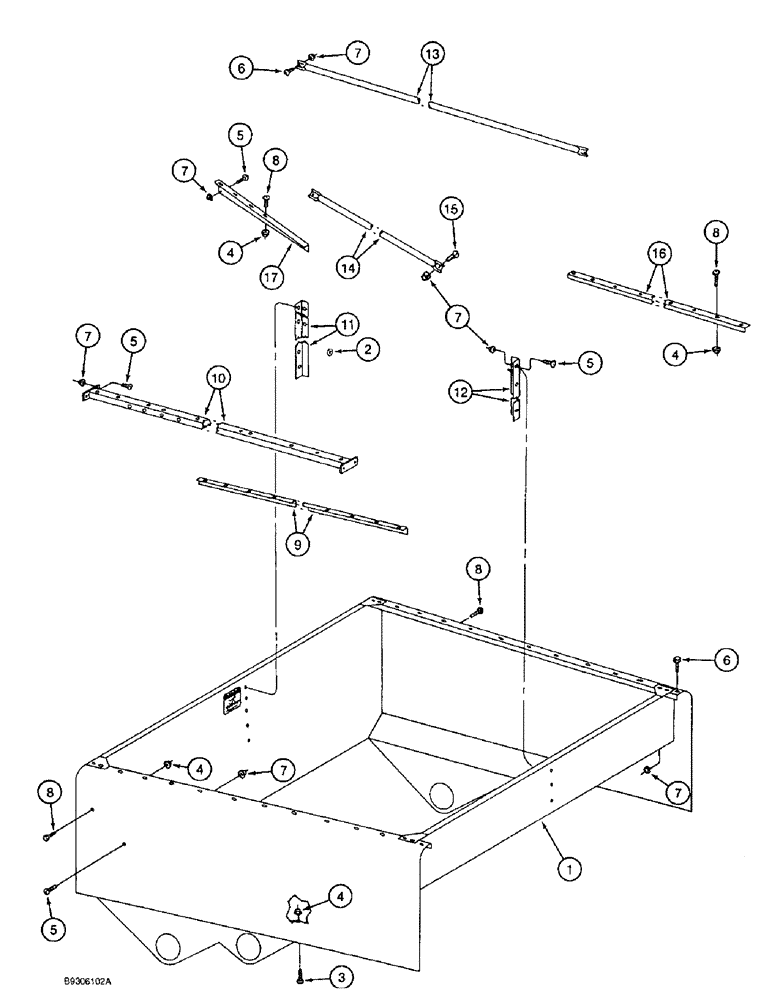

Схема запчастей Case IH 1666 - (9E-02) - GRAIN TANK AND UPPER SUPPORTS (17) - GRAIN TANK & UNLOADER
4
10
7
8
5
5
2
3
13
6
14
1
5
7
17
7
15
16
4
9
7
4
7
6
11
8
4
8
5
8
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1321917C93

TANK

grain, includes decals, replaces 1321917C92

1шт.

2

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

flat, 11/32 x 1 x 3/64 inch

3шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

slotted truss head, 5/16 NC x 1/2 inch

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

9

195397C3

ANGLE

grain tank, top, left hand

1шт.

10

192855C1

SUPPORT

grain tank tie

1шт.

11

192765C1

SUPPORT

grain tank tie, front

1шт.

12

181682C2

SUPPORT

grain tank tie, rear

1шт.

13

192767C2

STEM

ROD grain tank tie

1шт.

14

188414C3

ROD

grain tank tie

1шт.

16

195398C3

SUPPORT

grain tank, top, right hand

1шт.

17

192769C2

SUPPORT

grain tank, diagonal, right hand

1шт.

6

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

1шт.

15

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

Special

1шт.
