(3-11A) - FUEL LINES AND FILTER SYSTEM, P.I.N. JJC01006005 AND AFTER

Запчасти Case IH 1666 (3-11A) - FUEL LINES AND FILTER SYSTEM, P.I.N. JJC01006005 AND AFTER (02) - FUEL SYSTEM

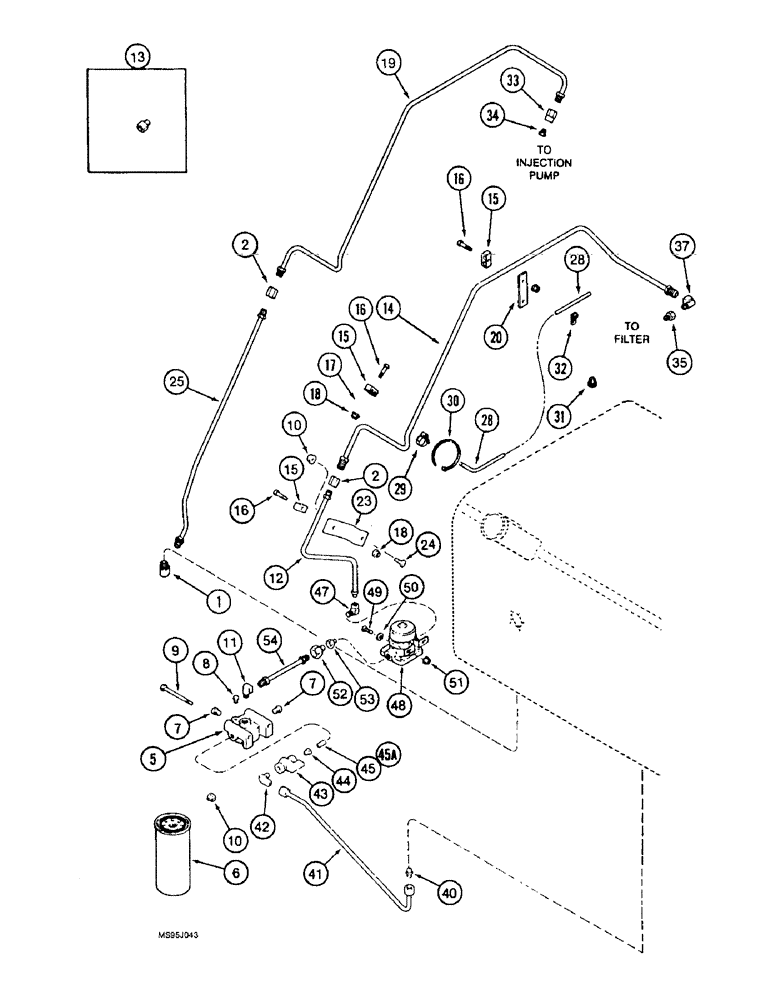

Схема запчастей Case IH 1666 - (3-11A) - FUEL LINES AND FILTER SYSTEM, P.I.N. JJC01006005 AND AFTER (02) - FUEL SYSTEM
53
52
51
13
9
2
28
43
12
7
45a
5
33
6
40
23
1
37
11
25
7
14
30
16
16
31
41
10
15
29
45
24
44
15
20
18
49
48
18
17
42
8
54
10
15
32
35
34
19
28
16
50
47
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

144535R1

ELBOW

90 degree, special, 3/8 inch inverted flare, lower fuel return tube

1шт.

5

612277C2

FILTER HEAD

fuel filter

1шт.

6

A184776

FUEL FILTER

1шт.

7

221-841

PLUG

hex socket, 1/4 inch PT

2шт.

8

444614

PLUG,Hex Hd, 1/8"-27, Brass

hex, 1/8 inch PT

1шт.

9

424-564

BOLT,Hex, 5/16" - 18 x 4", Gr 2

BOLT hex, 5/16 NC x 4 inch, grade 2

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

2шт.

12

1977001C1

HYD TUBE

1шт.

13

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING, 5/8-18 inch inverted flare

2шт.

14

1330563C1

FUEL TUBE

fuel supply, upper

1шт.

15

183825C1

CLAMP

fuel tube

3шт.

17

495-81121

WASHER,.344" x 1 1/2" x .060"

flat, 11/32 x 1-1/2 x 1/16 inch

1шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

19

1330562C2

FUEL TUBE

fuel return, upper

1шт.

20

1330564C1

PLATE

SUPPORT fuel tube

1шт.

21

183821C1

CLAMP

tube, single, 3/8 inch, O.D.

1шт.

23

196517C1

SUPPORT TUBE

fuel tubes

1шт.

23a

121525A1

SUPPORT

fuel tube

1шт.

24

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

slotted truss head, 5/16 NC x 1 inch

2шт.

25

183653C2

FUEL TUBE

fuel return, lower

1шт.

28

1251794C1

FUEL TUBE,2946.40 mm, SAE J844C

Fuel Tank Vent, Cut From Bulk Tube, See this Figure

1шт.

29

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable

1шт.

30

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP tie, 10 inch, retaining

1шт.

31

195803C1

GROMMET

3/8 inch

1шт.

32

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP P-type, retaining

3шт.

36

1979437C1

FUEL HOSE,9.53 mm ID x 330.00 mm, SAE 30R2 Type 1 Class 1, SAE 100R6 Class 14

Cut From 364357C1 Bulk Hose, Fuel Return, See This Figure

1шт.

37

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Adjustable

2шт.

40

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

straight, 3/4-16 flare x 3/8 inch PT

1шт.

41

1994884C1

FUEL TUBE

fuel, filter, Serial Range: base-tank

1шт.

42

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ELBOW, 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

43

1345205C1

SHUT-OFF VALVE

fuel shut off

1шт.

44

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

REDUCER pipe, 1/2 male x 1/4 inch female

1шт.

45

217-195

FITTING,1/4" - 18 Male NPTF x 1/4" - 18 Male NPTF

NIPPLE straight, 1/4 PT x 1-3/8 inch, brass, if used

1шт.

45a

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

(NIPPLE - Hex) x 1-7/16" lg., if used

1шт.

46

1977001C1

HYD TUBE

fuel supply, lower

1шт.

47

144535R1

ELBOW

90 degree, special, 3/8 inch inverted flare

1шт.

48

196503C1

PUMP

fuel, electric

1шт.

49

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

slotted truss head, 5/16 NC x 1-1/4 inch

2шт.

50

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

flat, 13/32 x 1-1/8 x 9/64 inch, hardened

8шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

52

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.

53

222-1016

HYD CONNECTOR,5/8"-18 Inv Fl x 1/4" NPT

1шт.

54

1977000C1

HYD TUBE,0.375" OD

filter to pump

1шт.

74813C1

TUBE,7.09mm ID x 15240mm L

bulk, 3/8 (9.5) O.D. x 600 inch (15240 mm) long

1шт.

364357C1

LARGE HOSE

HOSE,LARGE bulk, 3/8 (10) ID x 600 inch (15240 mm) long

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
