(5-26) - STEERING KNUCKLE, HUB AND WHEELS, ADJUSTABLE AXLES, WITHOUT POWER GUIDE AXLE, CORN AND GRAIN COMBINE

Запчасти Case IH 1666 (5-26) - STEERING KNUCKLE, HUB AND WHEELS, ADJUSTABLE AXLES, WITHOUT POWER GUIDE AXLE, CORN AND GRAIN COMBINE (04) - STEERING

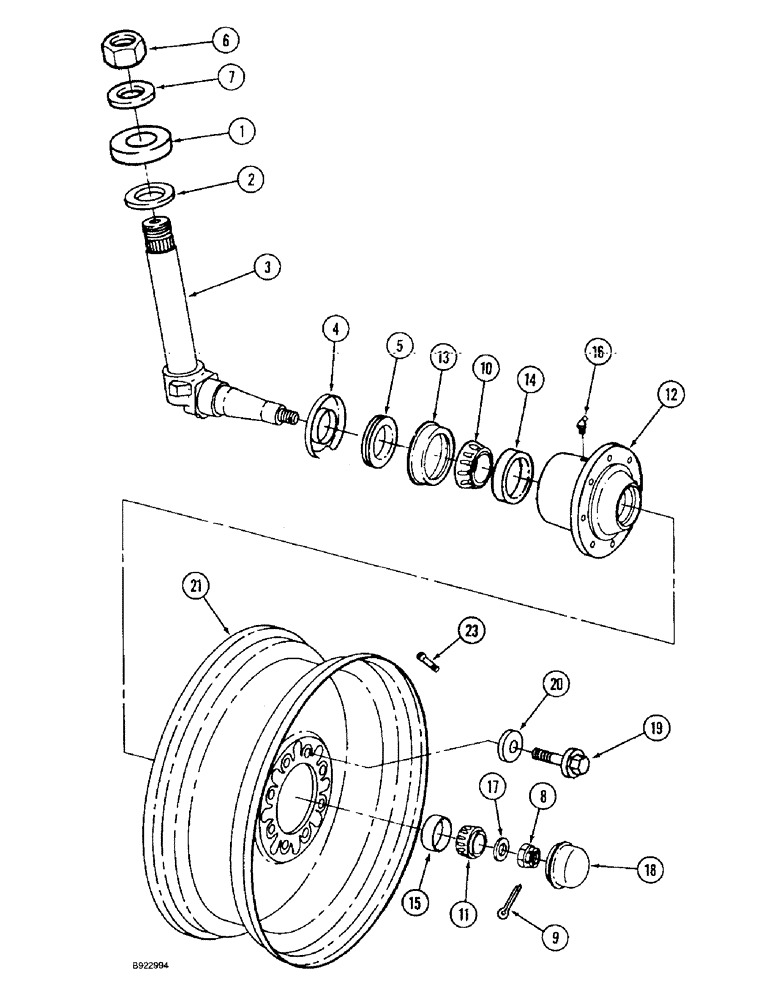

Схема запчастей Case IH 1666 - (5-26) - STEERING KNUCKLE, HUB AND WHEELS, ADJUSTABLE AXLES, WITHOUT POWER GUIDE AXLE, CORN AND GRAIN COMBINE (04) - STEERING
7
23
6
4
10
14
12
13
21
17
8
5
9
16
11
15
3
20
18
1
19
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

thrust, knuckle

2шт.

2

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Felt, Special knuckle pivot

2шт.

3

1315374C1

STEERING KNUCKLE

Includes: Ref. 4 and 5

2шт.

4

1259522C1

SHIELD

dust

1шт.

5

491641C1

SEAL

hub

1шт.

6

425-1522

JAM NUT,Jam, 1 3/8"-12, G5

hex, jam, 1-3/8 inch NF

2шт.

7

495-81218

WASHER,35.71mm ID x 69.85mm OD x 1.37mm Thk

flat, 1-13/32 x 2-3/4 x 3/64 inch

2шт.

8

1259683C1

NUT

hex, slotted, 30 mm - 1.5

2шт.

9

732-6363

COTTER PIN,M6.3 x 63

6 x 63 mm

2шт.

10

ST753B

BEARING ASSY,66.67mm ID x 22mm W

tapered roller, wheel, inner 2-5/8 inch ID

2шт.

11

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

tapered roller, wheel, outer

2шт.

12

1259528C1

HUB

ASSEMBLY wheel, Includes: Ref. 13 thru 16

2шт.

13

1264549C1

SEALING WASHER,106mm ID x 130mm OD x 1.6mm Thk

hub seal

1шт.

14

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

tapered roller, wheel, inner 4-5/16 inch O.D.

1шт.

15

130503H

BEARING CUP

tapered roller, wheel, outer 3-17/64 inch O.D.

1шт.

16

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

16

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

2шт.

17

896-12030

WASHER,33mm ID x 56mm OD x 5mm Thk

flat, 33 x 56 x 5 mm, hardened

2шт.

18

189425C1

HUB CAP

wheel hub

2шт.

19

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

BOLT hex flange, special

16шт.

20

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

flat, 21/32 x 1-1/2 x 3/16 inch, hardened, used with 186642C2 wheel Ref. 21 only

16шт.

21

186642C2

WHEEL

18.4-16 inch tire

2шт.

21

188759C2

RIM

WHEEL 10 x 24 inch, for 11.25 x 24 inch tire

2шт.

21

1541719C1

RIM

WHEEL 12 x 24 inch, for 14.9 x 24 inch tire

2шт.

21

1970153C1

RIM

WHEEL drive, steering, used with 16.9 x 26 inch and 18.4 x 26 inch tires

2шт.

23

536705R91

VALVE

inflation, 5/8 inch diameter

2шт.

23

179482C1

VALVE STEM

inflation, 7/16 inch diameter

2шт.
