(5-10) - STEERING CYLINDER, TWO WHEEL DRIVE AND POWER GUIDE AXLE PRIOR TO P.I.N. JJC0044001

Запчасти Case IH 1680 (5-10) - STEERING CYLINDER, TWO WHEEL DRIVE AND POWER GUIDE AXLE PRIOR TO P.I.N. JJC0044001 (04) - STEERING

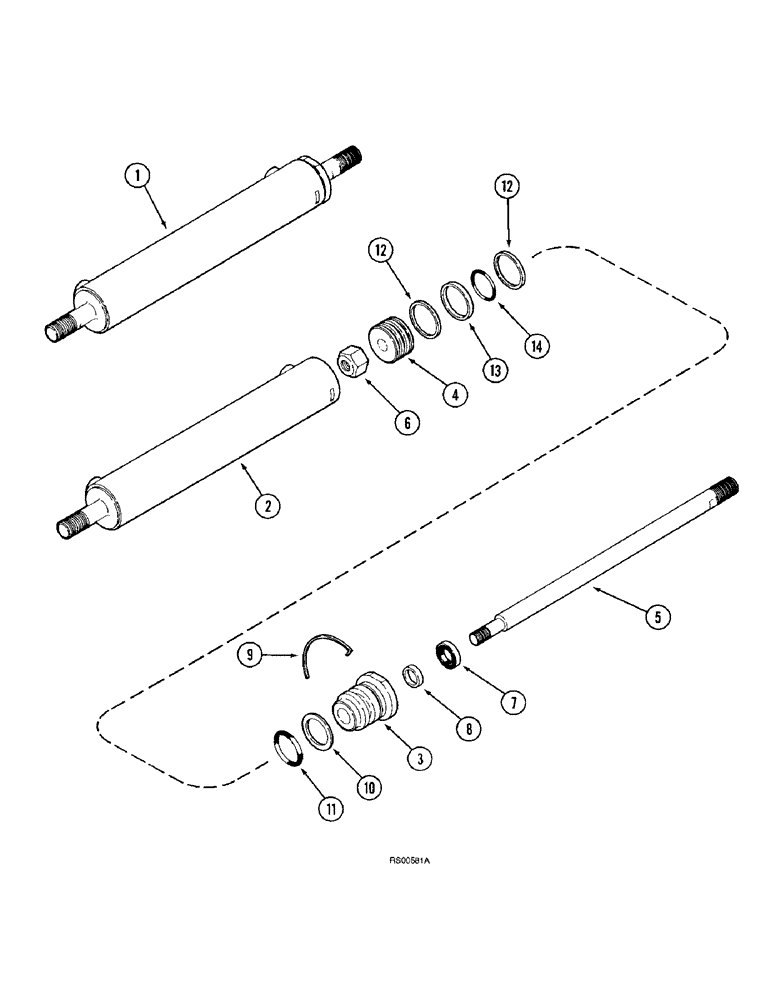

Схема запчастей Case IH 1680 - (5-10) - STEERING CYLINDER, TWO WHEEL DRIVE AND POWER GUIDE AXLE PRIOR TO P.I.N. JJC0044001 (04) - STEERING
11
12
4
6
5
14
2
7
8
1
12
9
13
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

127913C93

STEERING CYLINDER

CYLINDER ASSEMBLY - 57 (2-1/4) ID x 229 mm (9 inch) stroke, Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

127919C1

GLAND

- cylinder

1шт.

4

127921C1

PISTON

- cylinder

1шт.

5

127920C2

PISTON ROD

ROD - piston

1шт.

6

232-46310

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

73661C92

SEAL KIT

KIT - seal, Includes: Ref. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining wire

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 1-7/8 x 2-1/4 inch

1шт.

12

NSS

NOT SOLD SEPARAT

RING - piston bearing

2шт.

13

NSS

NOT SOLD SEPARAT

RING - piston, teflon

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - 1-13/16 x 2 inch

1шт.
