(5-46) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001

Запчасти Case IH 1680 (5-46) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING

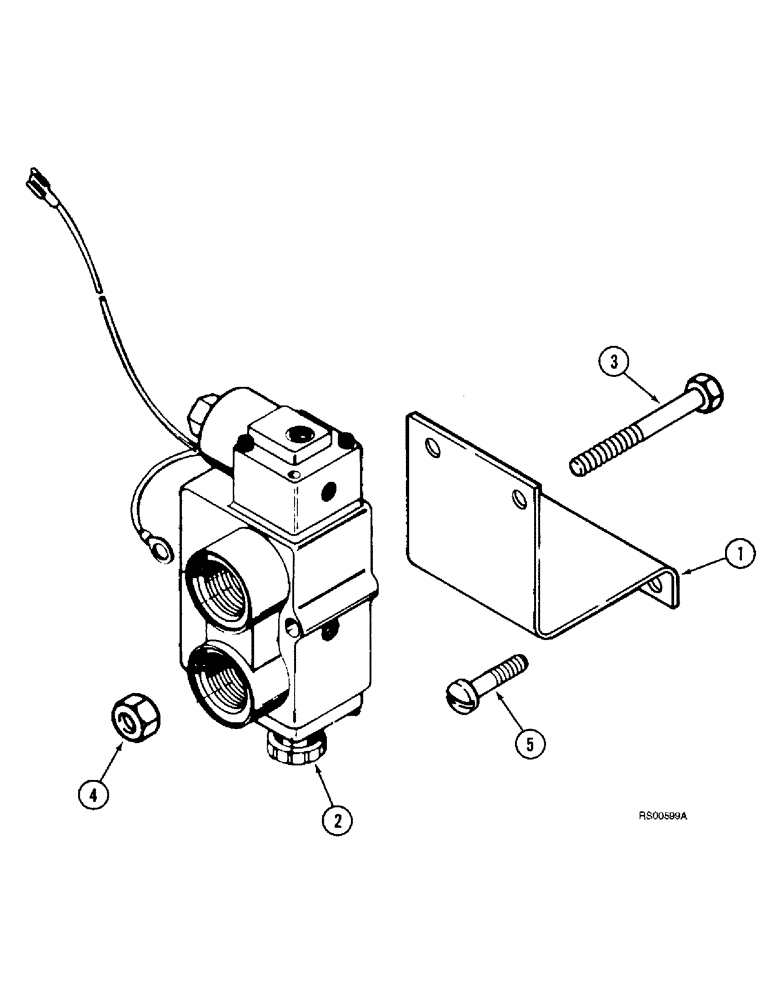

Схема запчастей Case IH 1680 - (5-46) - SELECTOR VALVE MOUNTING, POWER GUIDE AXLE, PRIOR TO P.I.N. JJC0044001 (04) - STEERING
4
3
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1301425C1

SUPPORT

- selector valve mounting

1шт.

2

1315489C91

VALVE

ASSEMBLY - selector, part list Figure 5-48

1шт.

3

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.

Выбрано товаров: 5
