(5-70) - STEERING CYLINDER, POWER GUIDE AXLE, P.I.N. JJC0044001 AND AFTER

Запчасти Case IH 1680 (5-70) - STEERING CYLINDER, POWER GUIDE AXLE, P.I.N. JJC0044001 AND AFTER (04) - STEERING

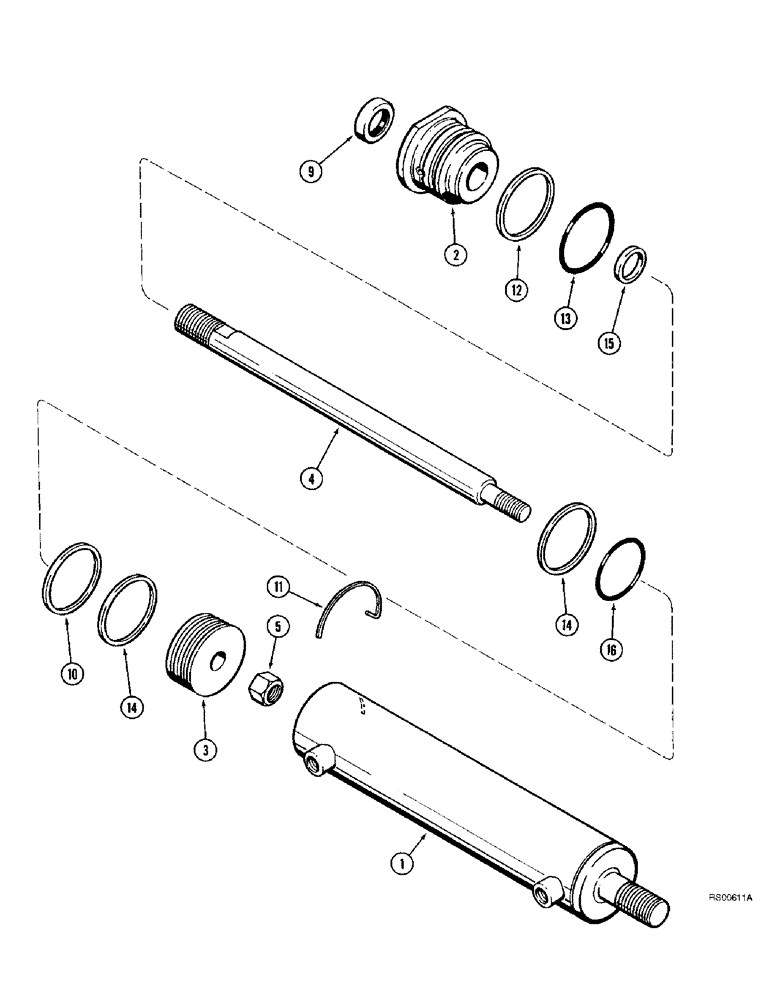

Схема запчастей Case IH 1680 - (5-70) - STEERING CYLINDER, POWER GUIDE AXLE, P.I.N. JJC0044001 AND AFTER (04) - STEERING
12
9
10
11
2
14
13
16
5
1
14
4
3
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1958024C1

STEERING CYLINDER

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 229 mm (9 inch) stroke, steering, Includes: Ref. 1 - 16

1шт.

87337226R

REMAN-HYD CYLINDER

1680 (PRIOR TO S/N JJC0045689) ,STEERING CYLINDER, POWER GUIDE AXLE, P.I.N. JJC0044001 AND AFTER ( 1/86 - 12/92 Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

1958020C1

GLAND

- cylinder

1шт.

3

1958021C1

PISTON

- cylinder

1шт.

4

127920C2

PISTON ROD

ROD - piston

1шт.

5

232-46310

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

1971520C1

SEAL KIT

KIT - seal, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - urethane, piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - back up, O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - head, 2-1/8 ID x 2-1/2 inch OD, class 5

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston, teflon

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston, 2-1/16 ID x 2-1/4 inch OD

1шт.
