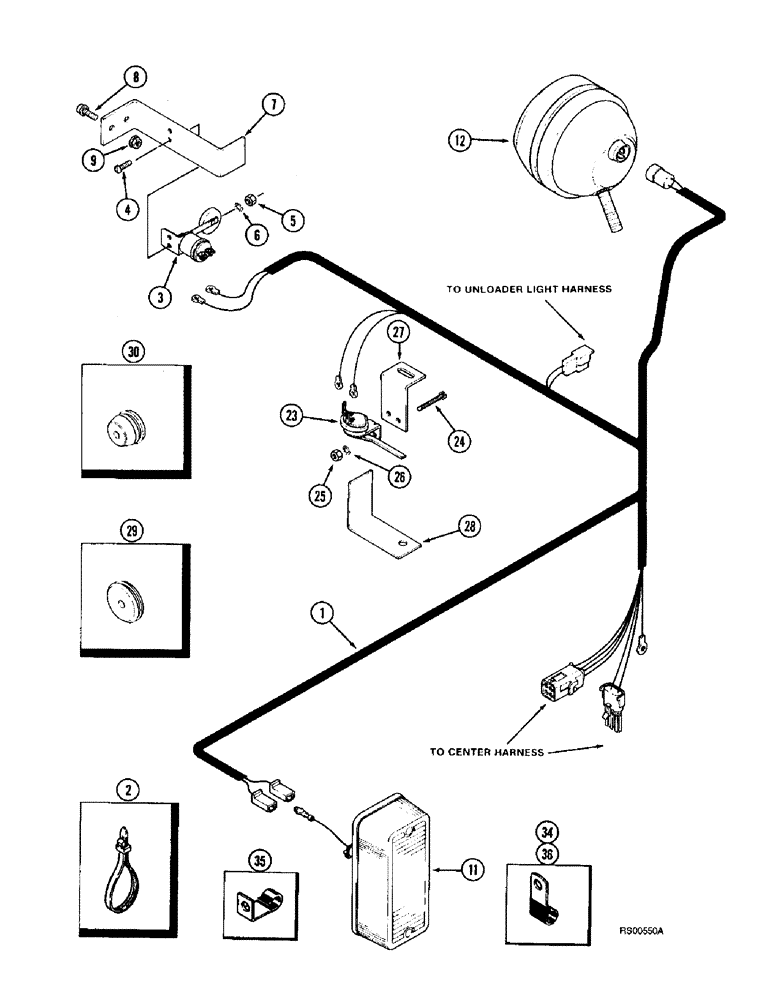

Запчасти Case IH 1680 (4-28) - GRAIN TANK HARNESS (06) - ELECTRICAL

1

245243C3

HARNESS

- grain tank

1шт.

2

702093C1

CABLE TIE

STRAP - tie

1шт.

3

91436C4

SWITCH

- unloader in

1шт.

4

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

5

225-14110

NUT,#10-24

2шт.

6

493-81001

LOCK WASHER,Ext-Int Tooth, #10

WASHER - internal-external tooth lock, 3/16 inch

2шт.

7

1338022C1

SUPPORT

BRACKET - unloader in switch, replaces 84163C1 bracket

1шт.

8

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

130882C91

LAMP

LAMP ASSEMBLY - warning, part list Figure 4-36

1шт.

12

245954C91

LAMP

ASSEMBLY - unloader and grain tank, replaces 245953C91 lamp assembly, parts list Figure 4-32

1шт.

23

537641R2

SWITCH ASSY

SWITCH - limit

1шт.

24

440-11024

SCREW,Cross Pan Hd, #10-24 x 1 1/2"

- machine, pan head, No. 10-24 x 1 inch

2шт.

25

225-13210

NUT,#10-32

2шт.

27

1338003C1

BRACKET

SUPPORT - unloader out switch

1шт.

28

1338004C1

BRACKET

- unloader out switch

1шт.

29

195803C1

GROMMET

- 3/8 inch ID

2шт.

30

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID

1шт.

34

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

- retaining

8шт.

35

370383R1

CLIP

CLAMP - harness, long

6шт.

36

362123R1

CLIP

- trim

3шт.

26

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.
